ALCK0640
ALLES CNC

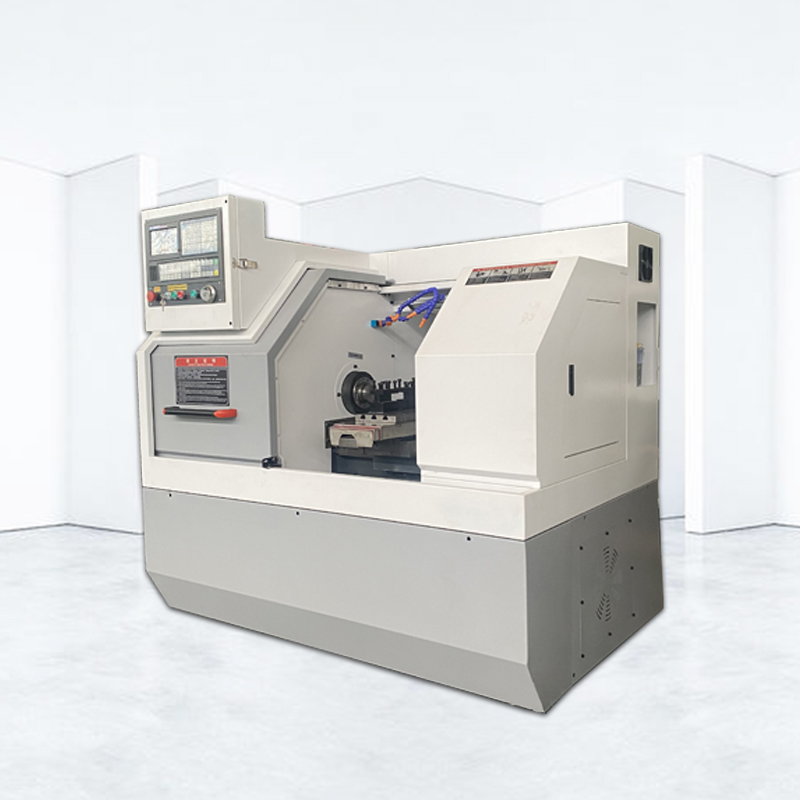

Product Description
ALCK0640ssing control and motion control. The high-precision spindle and stable speed of the CNC lathe ensure excellent processing quality and cutting ability. The tool post design of the CNC lathe facilitates quick replacement of cutting tools and improves work efficiency.
STANDARD CONFIGURATION
1.CNC system:GSKTB3, servo motor and drive.
2.Chuck: Pneumatic collets.
3tool： Gang Type Tool.
4.Cooling system.
5.Lighten system.
6.Automatic lubrication system.
OPTIONAL CONFIGURATION
1.CNC system: Siemens, Fanuc, KND.
2.Chuck:Hydraulic chuck, pneumatic chuck ..
4.turret :
(1).4station electric tool post.
(2).6station electric tool post.
(3.)8station electric tool post.
5.Feeder:Automatic bar feeder.
| Item | Unit | ALCK0640 |
| Max swing over bed | mm | Φ250 |
| Maximum swing over slide | mm | Φ120 |
| Spindle hole diameter | mm | Φ48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 3000 |
| Z stroke | mm | 220 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Machine weight | Kg | 800 |
| Dimensions (length × width × height) | mm | 1620×1340×1680mm |
| Control system | GSKTB3 |
