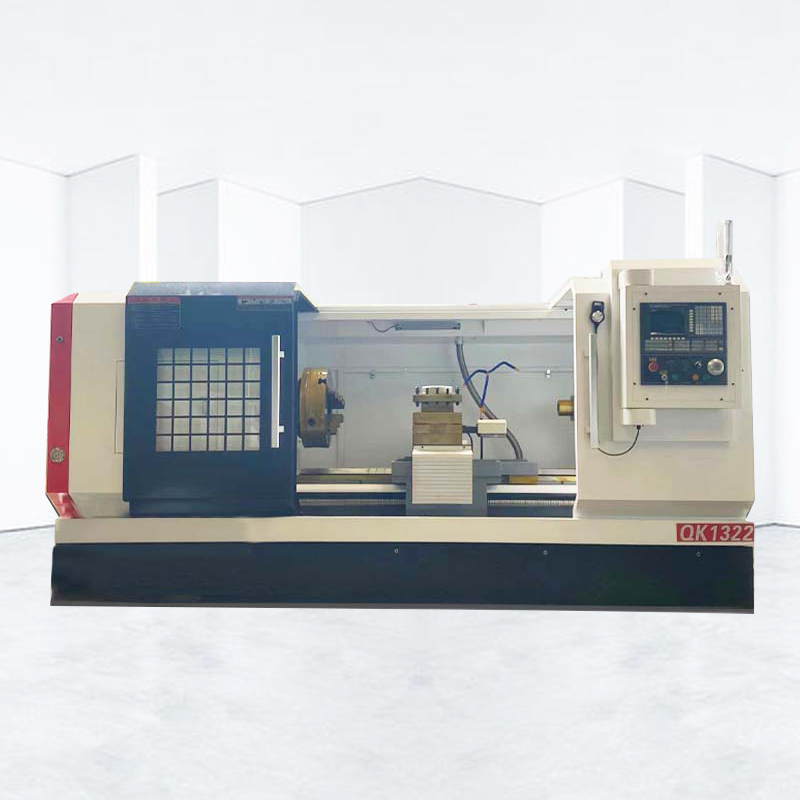

ALQK1322
ALLES CNC
ALCK1332 CNC pipe thread lathe can be used in the metal processing industry to process the following types of workpieces:
1. Pipe fittings: ALCK1332 CNC pipe thread lathe is suitable for processing various types of pipe fittings, such as pipe joints, flanges, pipe caps, etc. It can be used to cut external threads, internal threads and tapped holes.
2. Threaded rod: This lathe is suitable for processing threaded rods, such as threaded rods, threaded shafts, etc. It can be used to cut external threads with high precision and stability.
3. Steel shaft: ALCK1332 CNC pipe thread lathe can be used to process various types of steel shafts, such as mechanical shafts, transmission shafts, crankshafts, etc. It is capable of cutting external and internal circular surfaces, and realizes various thread processing.
4. Nuts: This lathe can be used to process various types of nuts, such as hexagonal nuts, square nuts, etc. It is capable of cutting threaded holes and contours to meet nut requirements.
5. Copper pipe and aluminum pipe: ALCK1332 CNC pipe thread lathe is suitable for processing copper pipe and aluminum pipe, and can cut external thread and internal thread, and is used for the manufacture and processing of pipe fittings.
STANDARD CONFIGURATION
1.double chuck
2.Turret :station electric tool post.
3.CNC system:GSKTB3, servo motor and drive.
4.Chuck: Pneumatic collets.
5.Tool： Gang Type Tool.
6.Cooling system.
7.Servo drive system.
8.Automatic lubrication system.
9.bed frame
OPTIONAL CONFIGURATION
1.CNC system: Siemens, Fanuc, KND.
2.Chuck:Hydraulic chuck, pneumatic chuck ..
4.Turret :
(1).8 station electric tool post.
(2)12 station electric tool post.
5.Feeder:Automatic bar feeder.
CNC CNC pipe thread lathe adopts the double chuck clamping mode
The Main Technical Parameters
| Project | Content | Unit | ALCK1332 |
| Processing range | Maximum turning diameter of bed | mm | Φ800 |
| Maximum turning diameter on the skateboard | mm | Φ450 | |
| Maximum processing length | mm | 1500 | |
| Maximum machining diameter | mm | Φ800 | |
| Maximum bar diameter | mm | Φ450 | |
| X/Z rapid traverse speed | m/min | 4/6 | |
| Motor | Spindle motor power | Kw | 11 |
| Spindle motor torque | NM | 48 | |
| Cooling pump motor power | W | 125 | |
| Rail form | Hard rail (greater than HRC50) | ||
| Machine weight | KG | 5200 |
Please note that the bed length can be customized according to the actual needs of customers
