ALTCK46A
ALLES CNC

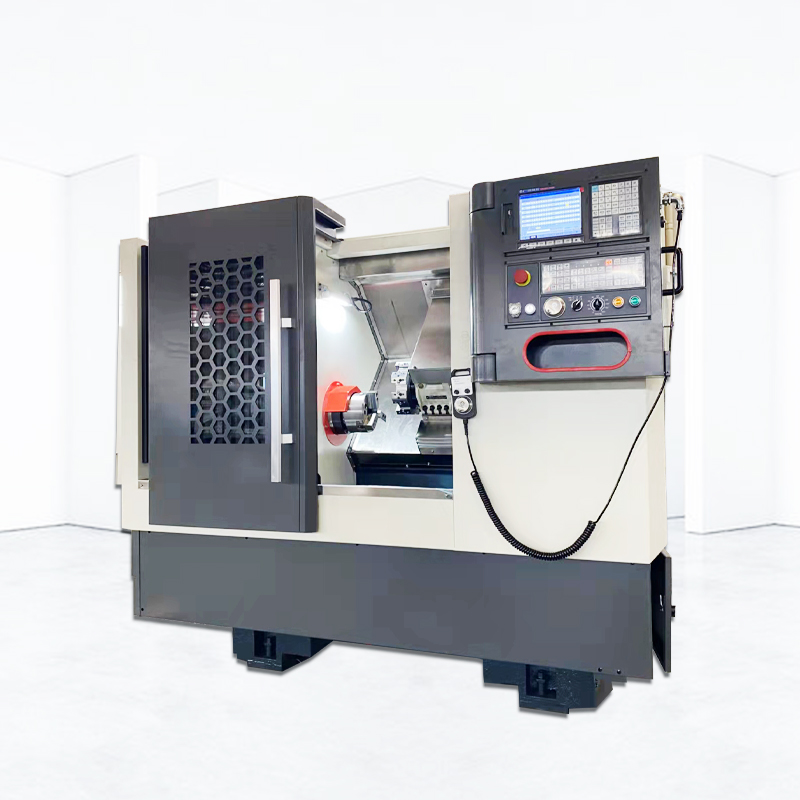

The slant bed CNC lathe TCK46A CNC lathe is a high-precision machine tool that is commonly used in the aerospace industry for manufacturing various complex aerospace components. Some of the that can be machined with the TCK46A CNC lathe for aerospace applications include:
Engine components: The TCK46A CNC lathe machine can be used to manufacture complex engine components such as turbine disks, compressor disks, and shafts.
Landing gear components: The TCK46A CNC lathe machine can be used to machine landing gear components such as struts, pistons, and cylinder heads.
Aircraft structural components: The TCK46A slant bed CNC lathe can be used to machine structural components such as wing spars, stringers, and bulkheads.
Avionics components: The TCK46A CNC lathe machine can be used to machine components such as radar housings, brackets, and panels.
Hydraulic and pneumatic components: The TCK46A CNC lathe machine can be used to machine components such as hydraulic and pneumatic valves, cylinders, and actuators.
CNC Lathe Machine ——In The Laster Inspection Of The Inclined Bed
| Model | Unit | ALTCK46A |
| Maximum turning diameter of bed | mm | Φ460 |
| Maximum turning diameter of cross slide | mm | Φ170 |
| Maximum processing length | mm | 350 |
| Maximum machining diameter (disk type) | mm | Φ400 |
| X axis maximum stroke | mm | 240 |
| Z axis maximum stroke | mm | 400 |
| Spindle speed | rpm | 3500rpm |
| Spindle through hole | mm | Φ56 |
| Sleeve stroke | mm | 80 |
| Maximum stroke of tailstock | mm | 200 |
| Total power capacity | KVA | 18 |
| Dimensions (length × width × height) | mm | 2500*1700*1890 |
| Total Weight | KG | 2600 |
