ALCK6150X2000
ALLES CNC

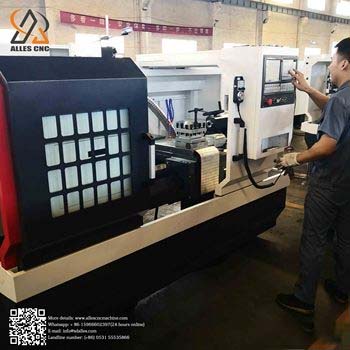

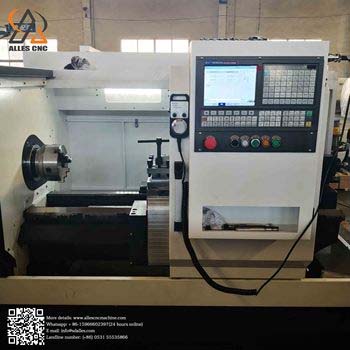

ALCK6150X2000 CNC Lathe Machine
1.CNC lathe high rigidity pedestal and wider lay board are suitable for heavy cutting
2.CNC lathe machine four station electric turret
3.Flat bed CNC lathe inverter step less speed
The Main Technical Parameters
| Item | Unit | ALCK6150/2000 |
| Max swing over bed | mm | φ500 |
| X-direction rail span | mm | 210 |
| Z-direction rail span | mm | 400 |
| Maximum swing over slide | mm | Φ250 |
| Center distance | mm | 2100 |
| Maximum turning length | mm | 1950 |
| Spindle hole diameter | mm | Φ82 |
| Bar diameter | mm | φ80 |
| With hollow chuck pull rod through hole | mm | Φ65 |
| Spindle speed limit | rpm | 1800 |
| Diameter of tailstock sleeve | mm | φ75 |
| Tailstock sleeve stroke | mm | 150 |
| Electric tool post knife number | Set | 4 |
| Knife square size | mm | □25×25(four stations) |
| X/Z direction fast moving speed | m/min | 6/8 |
| X stroke | mm | 280 |
| Minimum setting unit | mm | 0.001 |
| main motor power | KW | 7.5 |
| Total power | KW | 15 |
| Machine weight | Kg | 3150 |
| Dimensions (length × width × height) | mm | 3750×1650×1750 |
Super low price CNC lathe ALCK6150x2000 With Siemens CNC system

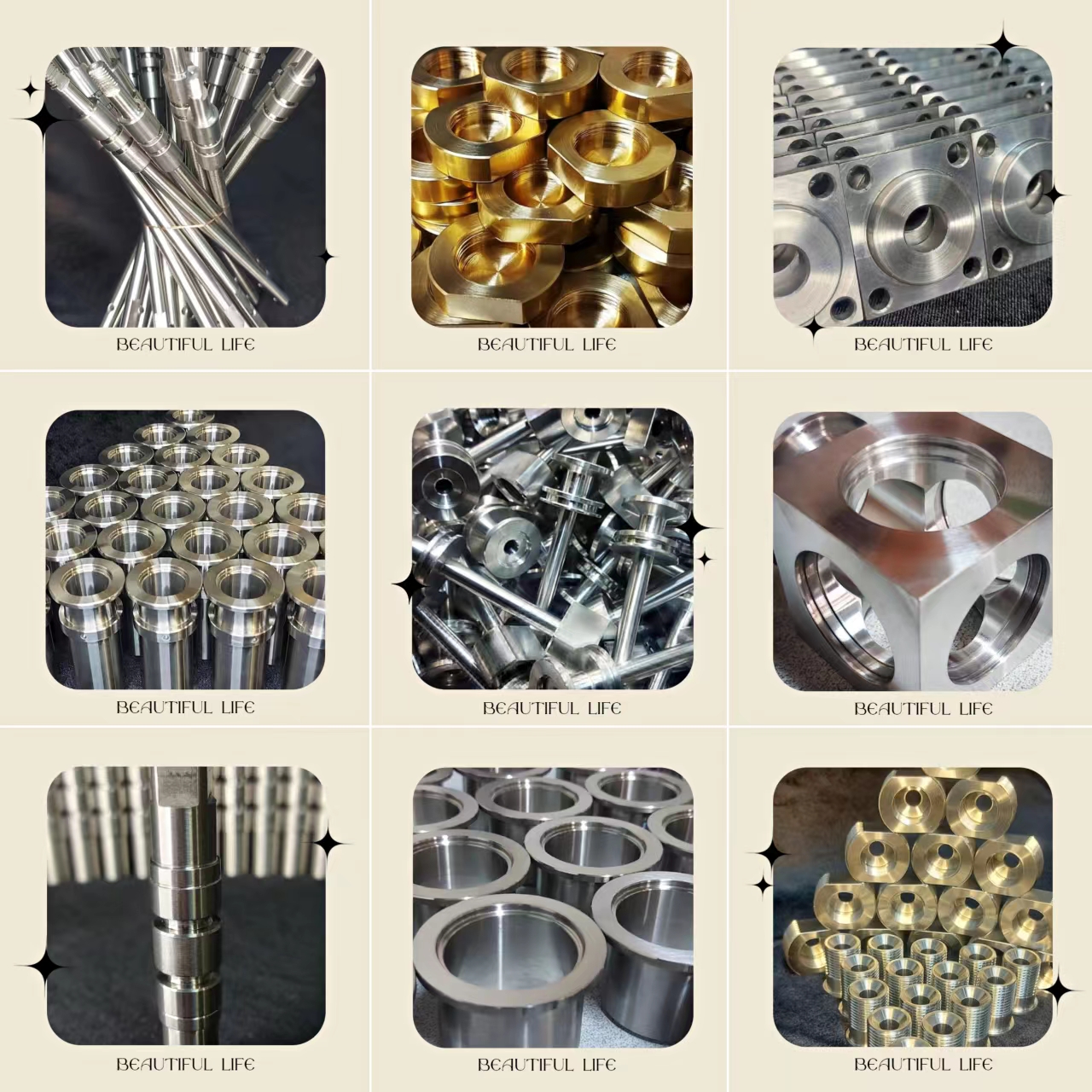

Automatic CNC lathe machine through the numerical control system,this machine could process different inner bore,ex-circle,circular conical surface and screw thread.
CNC lathe 3 axis especially suitable for the small and middle-sized shaft and plate work piece from rough processing in batch.It has advantages like higher automation,simpler programming and higher accuracy.
CNC lathe machine can automatically process the inside and outside cylinder surface cone round surface arc surface end face this as processing and also can process the single and multiple threads in Metric inches and other standards.
