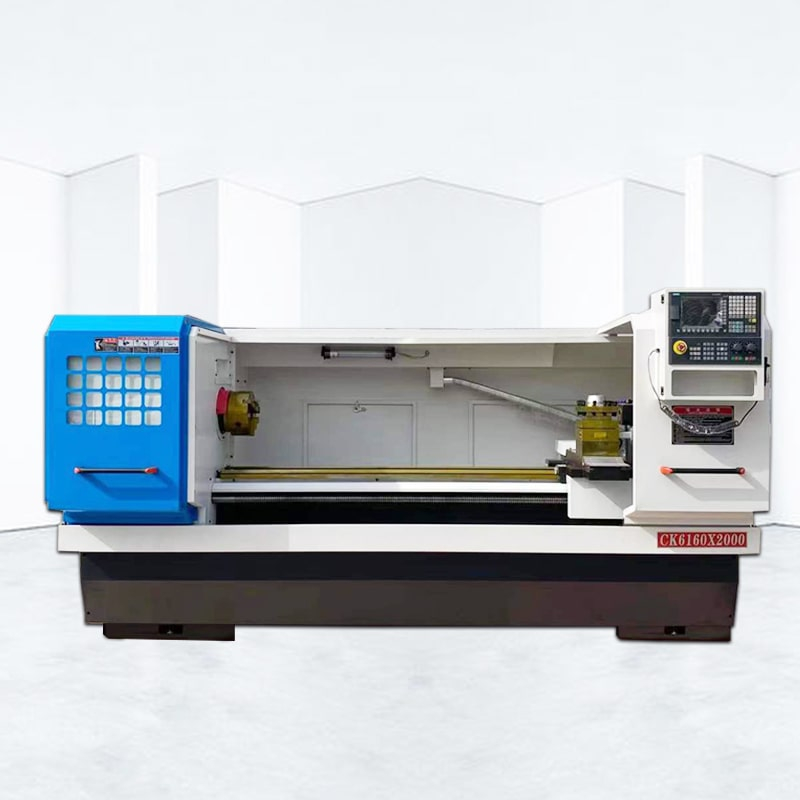

ALCK6160X2000
ALLES CNC
Super low price ALCK6160X1000
GSK980TB3 system
With third-party driver
Rail width 400
320 three-jaw manual self-centering chuck
Four-station electric tool holder
7.5kw ordinary motor
1.CNC lathe The tool post is located on precision contrite gears with a high repeated positioning accuracy.
2.CNC lathe machine Both chuck and tail stock are supplied with hydraulic or manual type.
3.CNC lathe machine The surface of the guide is supersonic frequency hardened and precision ground with a long Serve life.
4.The spindle system is high in the rigidity and accuracy.
5.An inverter is used to realize variable speed.
Equipment configuration and parameters
| Item | Unit | ALCK6160x2000 |
| Max swing over bed | mm | Φ600 |
| Maximum turning diameter of carriage | mm | Φ310 |
| Maximum turning diameter | mm | Φ600 |
| Maximum turning length | mm | 2000 |
| X/Z axis maximum stroke | mm | 300/2000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | F82 |
| Spindle speed limit | rpm | 150-1600 |
| Main motor power (frequency conversion) | kW | 7.5 |
| Frequency converter | kW | 7.5 |
| X/Z axis | N.m | 5/7.5 |
| X/Z axis rapid traverse speed | m / min | 6/8 |
| Tool bar size | mm | 25*25 |
| Repeated positioning accuracy of tool post | mm | ≤0.004 |
| Diameter of tailstock sleeve | mm | Φ75 |
| Tailstock sleeve stroke | mm | 200 |
| Machine size (length×width×height) | mm | 4400*1700*1800 |
| Electricity demand (power/current) | kW/A | 15kW/20A |
ALLES CNC Lathe Machine Factory Show
1.CNC lathe One-piece bed adopts high strength iron to ensure rigidity and precision.
2.CNC lathe machine Ultrasonic frequency quenched guide-ways ensure good wear-resistance.
3.Flat bed CNC lathe Carriage and guide way contact surface use turcite B to maintain accuracy.
CK6160X1000 series CNC horizontal lathe has the characteristics of high precision, high power, high rigidity, etc. Its main components and structure have been optimized design, and it is the first choice for machining shafts, discs, sleeves, special-shaped surfaces and screw work pieces.
