| The spindle speed of cnc metal lathe can reach 1800r/min. High productivity. |
| The accuracy of cnc mini lathe can reach 0.005mm. High accuracy. |
| Quantity: | |
|---|---|
ALTCK36A
ALLES CNC
Technology Parameter
| Specifications | Unit | ALTCK36A |
| Max. swing over bed | mm | Φ360 |
| Max. swing over cross slide | mm | Φ140 |
| Max. processing length | mm | 300 |
| Highest spindle speed | rpm | 4000 |
| Spindle bore | mm | Φ48 |
| Bar capacity | mm | Φ40 |
| The X-axis limit stroke | mm | 310 |
| The Z axis stroke limit | mm | 350 |
| X/Z axis repeatability | mm | ±0.003 |
| Machine dimension(L×W×H) | mm | 2200×1600×1850 |
| Net. weight(about) | kg | 2400 |
Tool holder and turret

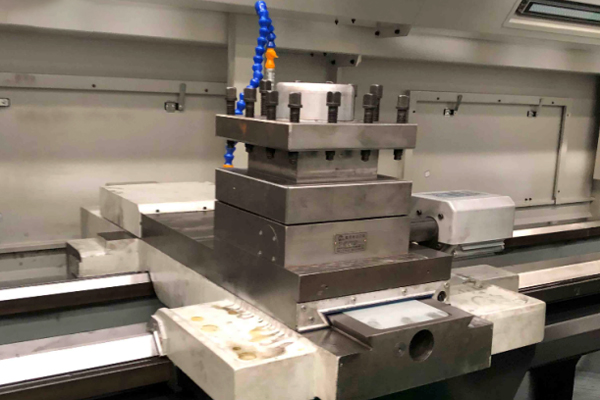

Four-station Tool Post

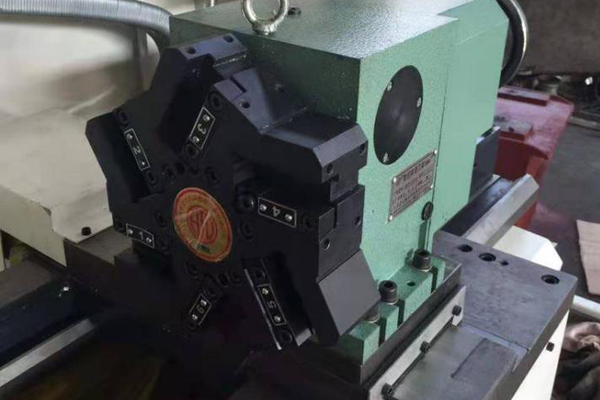

Six/eight-station Electric Tool Post

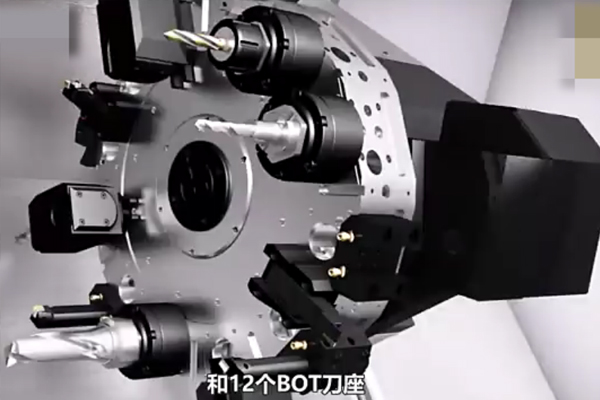

Power turret
CNC lathe is not recommended to increase the turret for smaller machines, because it will shorten the processing length.
If you just want to turn, you can choose four-station tool post and electric tool post.
If you want to add drilling and milling functions, you can choose a turret.
The difference between the turret and the turret:
Price: The price of the electric tool post is low; the price of the tool turret is high.
Structure: The electric turret is generally placed vertically on the worktable, and it rotates in the up and down direction; the turret is generally placed horizontally, and it rotates in the left and right directions.
Tool: The electric tool post can only be installed with ordinary turning tools (rectangular fixed size); the turret can be equipped with turning, drilling, and milling tools to become a turning, drilling and milling machining center for more high-precision processing
The power turret can only be installed on the inclined car.
Factory Scale
