ALCK0640
ALLES CNC

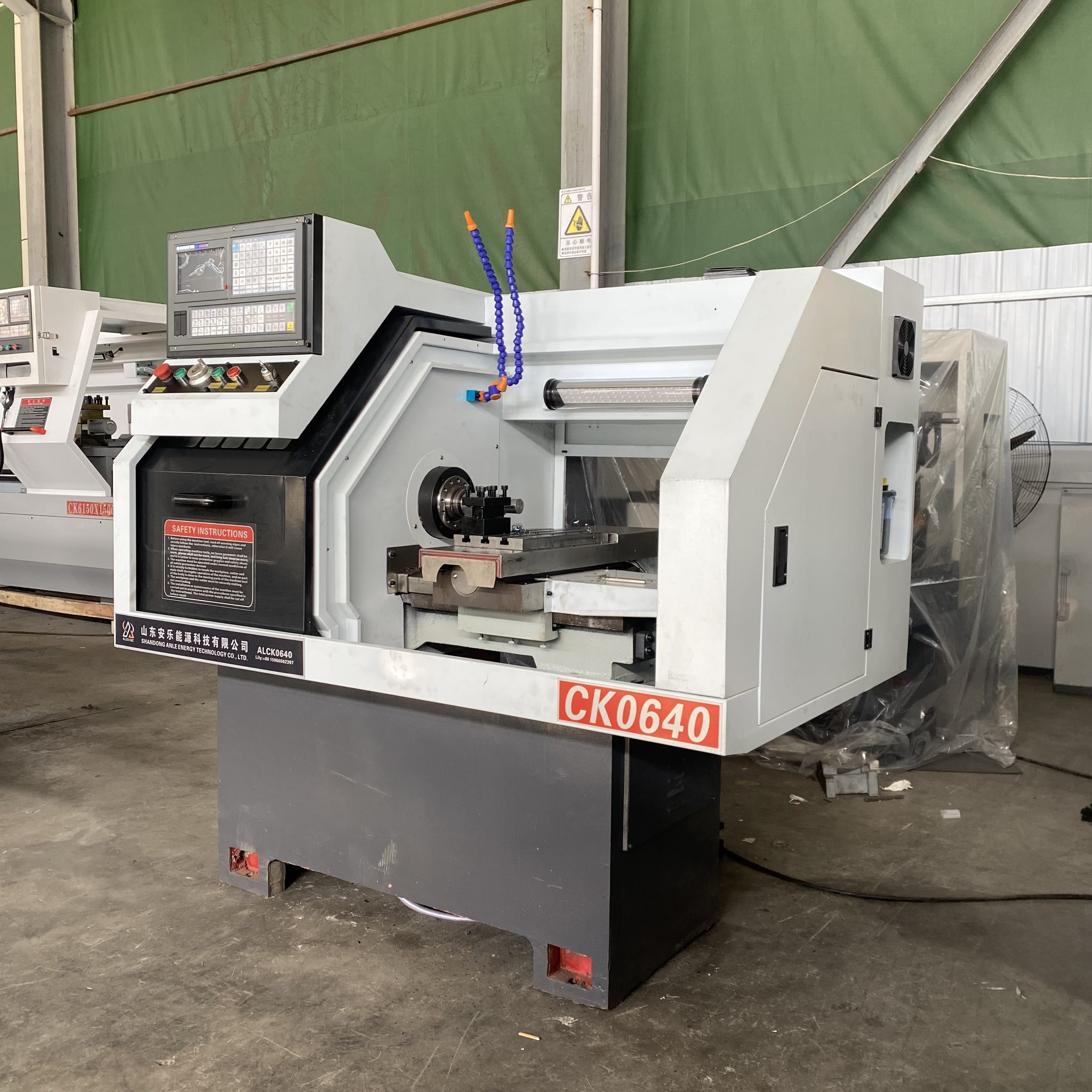

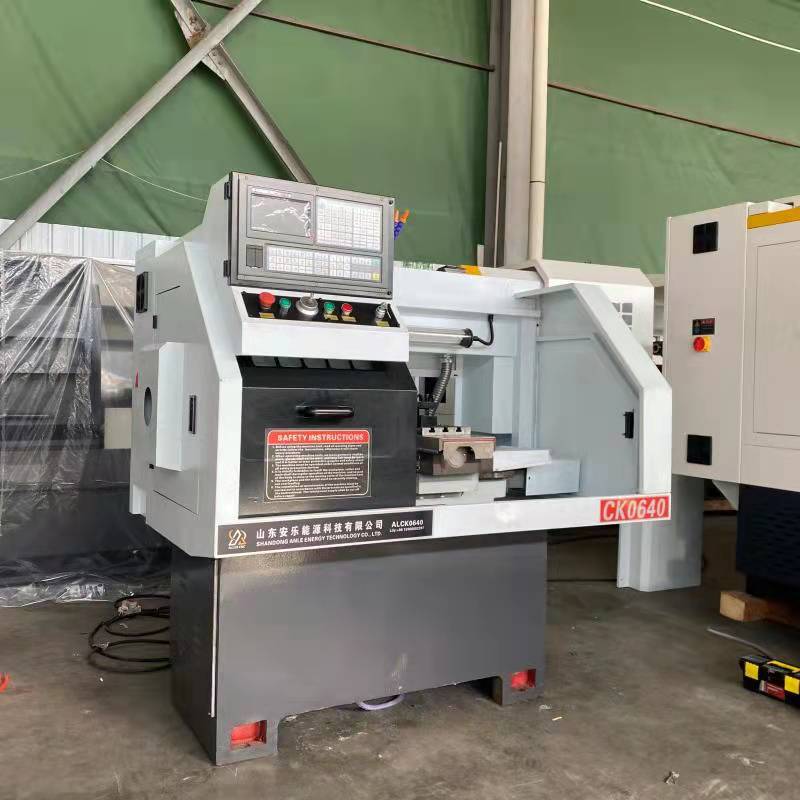

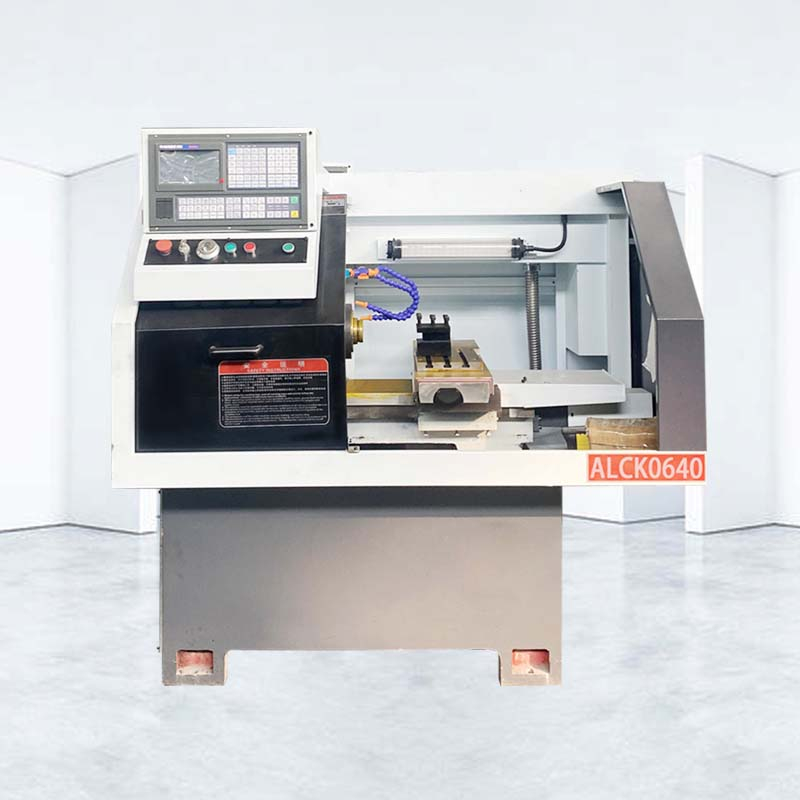

ALCK0640 CNC Turning Machine Flat Bed CNC Lathe
ALCK0640 CNC Turning Machine Flat Bed CNC Lathe.
CK0640 CNC Turning Machine Flat Bed CNC Lathe Usage:
This ALCK0640 economical CNC lathe has high precision and good stability, and is suitable for high-efficiency precision machining of small and medium-sized shafts and disc parts.
The main structural features of ALCK0640 economical CNC lathe:

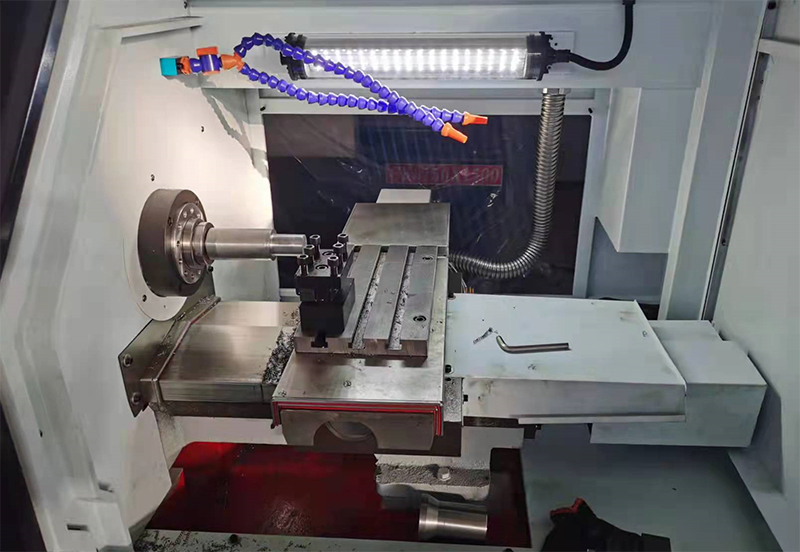

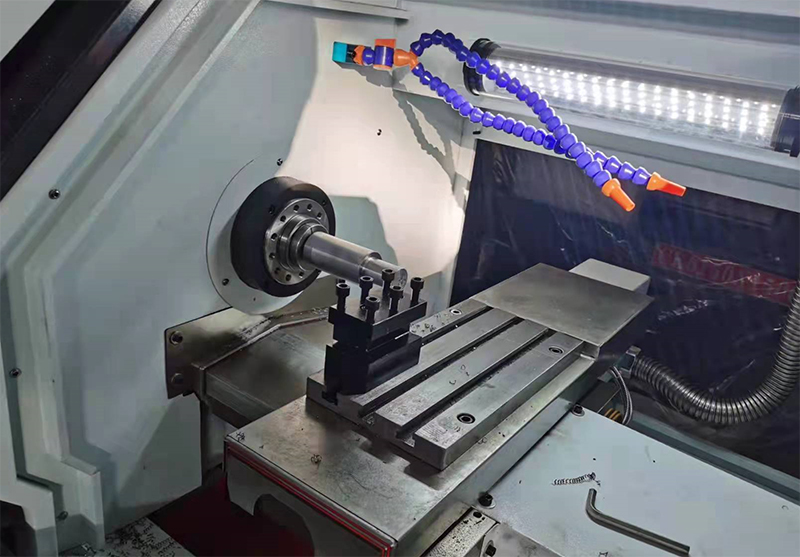

Integral high-strength cast iron base, super-wide bed bearing steel guide rail;
High-rigidity spindle, X-direction ultra-long stroke, new lubricating oil circuit, fully enclosed protection;
The triangular guide rail is telescopic and protected, and the large-pitch central screw is convenient for chip removal;
The use of lead screw bearings has high precision and high speed.
| Item | Unit | ALCK0640 |
Max swing over bed | mm | Φ250 |
Maximum swing over slide | mm | Φ120 |
Spindle hole diameter | mm | Φ48 |
With hollow chuck pull rod through hole | mm | Φ40 |
Spindle speed limit | rpm | 3000 |
Knife square size | mm | 20×20 (four stations) |
X/Z direction fast moving speed | m/min | 6/8 |
X axis repeat positioning accuracy | mm | 0.01 |
Z axis repeat positioning accuracy | mm | 0.01 |
Machine weight | kg | 800 |
Dimensions (length × width × height) | mm | 1620×1340×1680mm |
Using CK0640 CNC turning machine flat bed CNC lathe, you only need to compile the processing requirements of the workpiece into a processing program in the format specified by the system, enter the system storage, call the program on the system keyboard and start the program, the lathe can be in the system Under control, it can automatically complete the processing of the outer circle, inner hole, end face, step, groove, chamfer, etc. of the part, and has the automatic turning function of arc, curve, thread, and taper.
CK0640 Flat Bed CNC Lathe has good rigidity, stable accuracy and long service life. It is an ideal equipment for processing various precision and complex parts. It is especially suitable for the processing and mass production of non-ferrous metals. It adopts a full-protection structure, beautiful and unique appearance, which can effectively prevent The splashing of chips and coolant provides a safe and comfortable operating environment for the operator.
