CNC 3 Axis Vertical Machining Center Machining

CNC machining center vertical machining 3-axis is suitable for the mechanical processing and mold making.

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • ALVMC1370

  • ALLES CNC

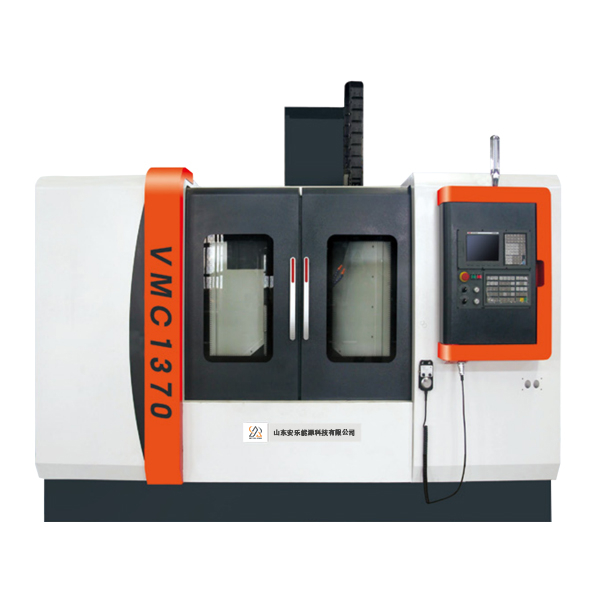

vmc1370 vertical machine center

CNC machining center vertical machining 3-axis is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring etc.


Technology Parameter

Specifications

Uni

ALVMC1370

Table size

mm

1500×700

Table maximum load

kg

900

X/Y/Z axis travel

mm

1300×700×700

Highest spindle speed

r/min

8000

Repeat positioning accuracy

mm

±0.005

Machine size (L×W×H)

mm

3600×3000×2700

Net. weight (about)

kg

11000

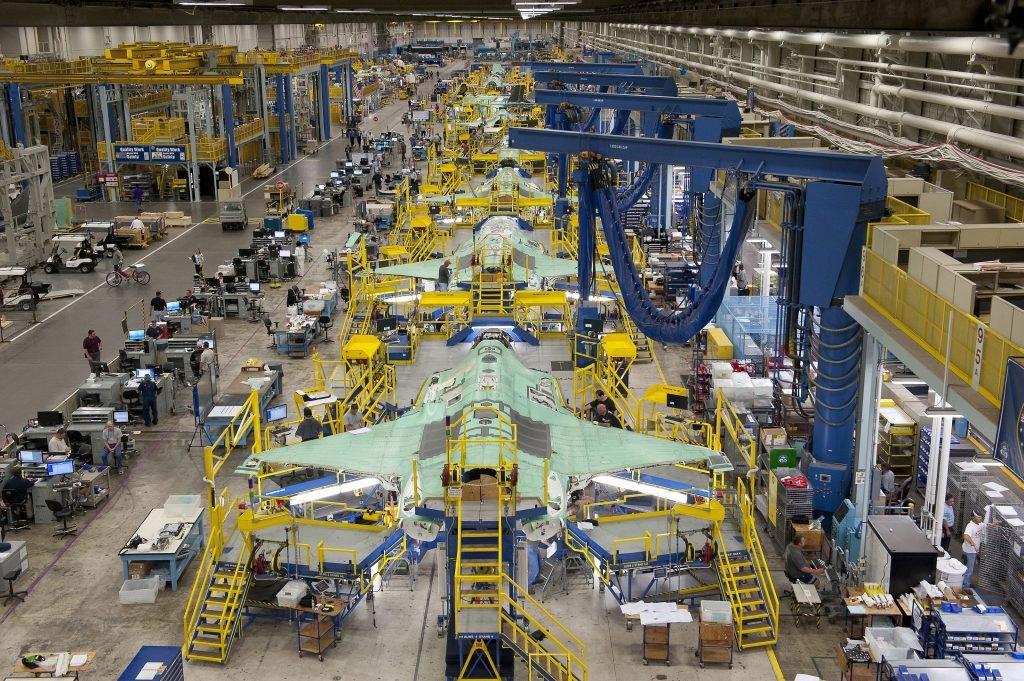

Aerospace Excellence Technology


ALLES CNC provides high-productivity processing technology for aerospace manufacturers and suppliers, and supports the ultra-conventional rapid development of the aerospace industry. In order to meet the strict requirements of users, the ALLES CNC Aerospace Excellence Technology Center integrates all the expertise of ALLES CNC. 3 axis cnc machine center can process aerospace overhaul doors, fan blades, torsion bars, fan disks, hanger ribs, wing ribs, mounting seats and other workpieces

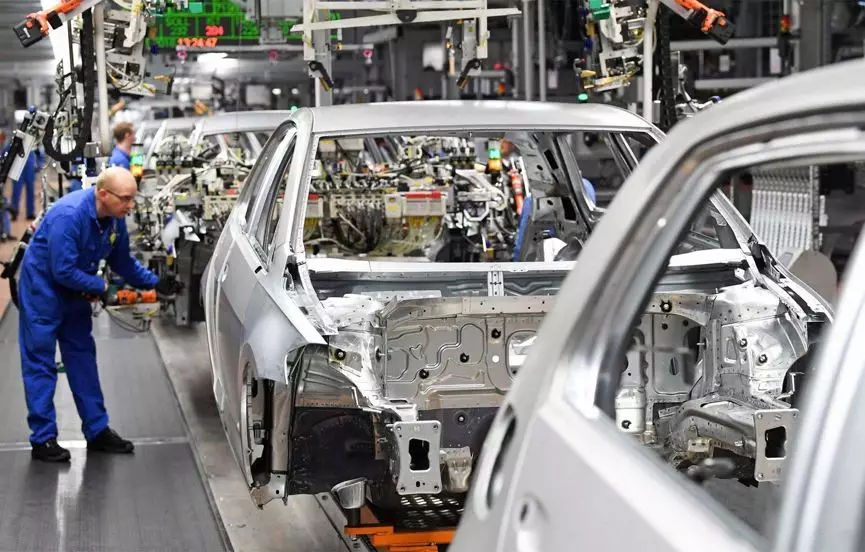

Automobile manufacturing industry


As a strong and long-term partner of automobile manufacturers, ALLES CNC sells 1,500 machine tools to the automobile industry every year, meeting stringent requirements with advanced CNC technology. The technologically advanced turnkey turnkey solution has long been developed and provided a fully integrated modular system, which includes a high-performance machining center and intelligent software. Ensure high availability and high process reliability for users. The vertical cnc milling machine can complete the motor housing, cylinder block, crankshaft, wheel, gearbox housing, gears, camshafts, cylinder heads, crankshafts, drive shafts and other workpieces in the automotive industry.

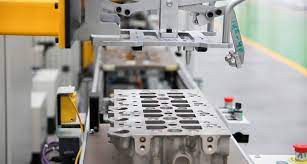

Mould manufacturing industry


Continuously develop processing technology and innovative software solutions for the digital future. The ALLES CNC Mold Excellence Technology Center responds to the challenges of mold production with high-productivity processing technology. The cnc machine center can complete die-casting molds, radiator grille molds, Bobby car molds, tire molds, injection molds for tablet cover, bumper mold cores, and stamping molds for mudguards.


Workpiece Display




Factory Display






ALVMC650

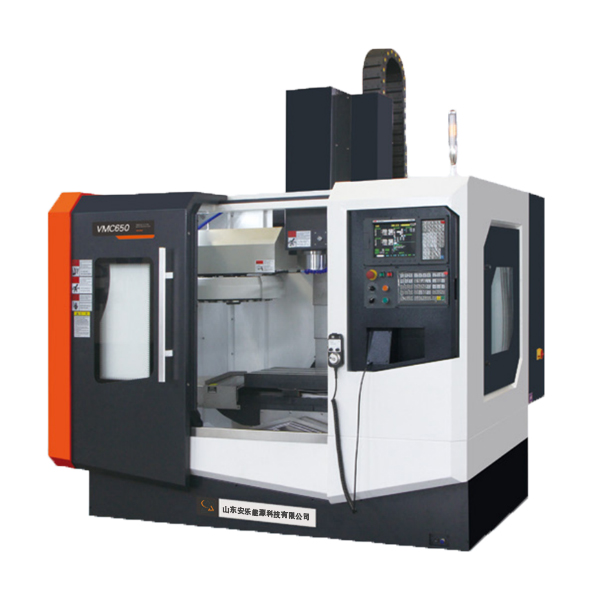

VMC650

ALVMC850

vmc
