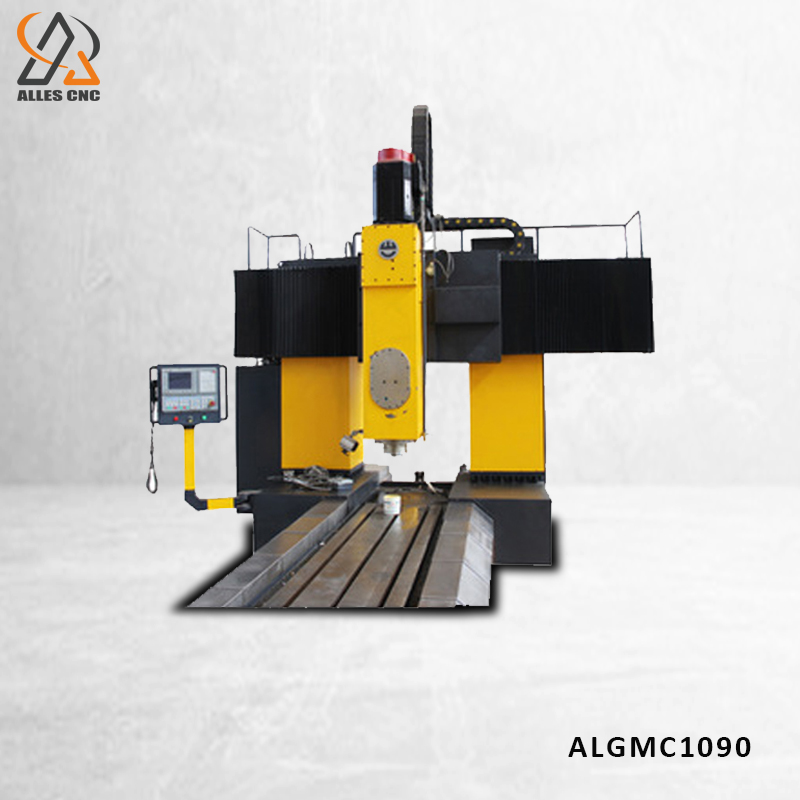

ALGMC1090
ALLES CNC
CNC Gantry Milling Machine Center adopts modular design. CNC Gantry Milling Machine Center is designed for high-performance machining of large parts made of various structural materials, including difficult-to-machine materials: titanium and heat-resistant alloys.
They perform drilling, boring, threading, straight, volume and contour milling operations, including simultaneous control along five coordinates.
ALGMC1090 is a precision machine tool with an integration of machinery, electricity, hydraulic pressure, and numerical control. This machine can processing flat surface, curved surface, and hole. Milling, boring, drilling and tapping all these processes can be made in one clamping and improves production efficiency and machining quality.
Product parameter
| Item | Name | ALGMC1090 |
| Worktable | Worktable load (KG) | 2000 |
| Worktable size (mm) | 900*1000 | |
| T-slot width | 18mm | |

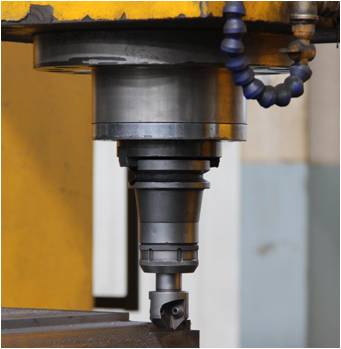

| Spindle | Spindle motor power | 7.5KW Servo |
| Spindle motor speed（r/min） | 0-8000 | |
| Spindle form | Mechanical spindle | |
| Spindle model brand | BT40(120) | |
| Dimensions | L*W*H（m） (About) | 2.9*2.3*2.8 |
| Machine weight | (About)(T) | 6 |
Video show
They perform operations of drilling, boring, threading, straight, volumetric and contour milling, including with simultaneous control along five coordinates.

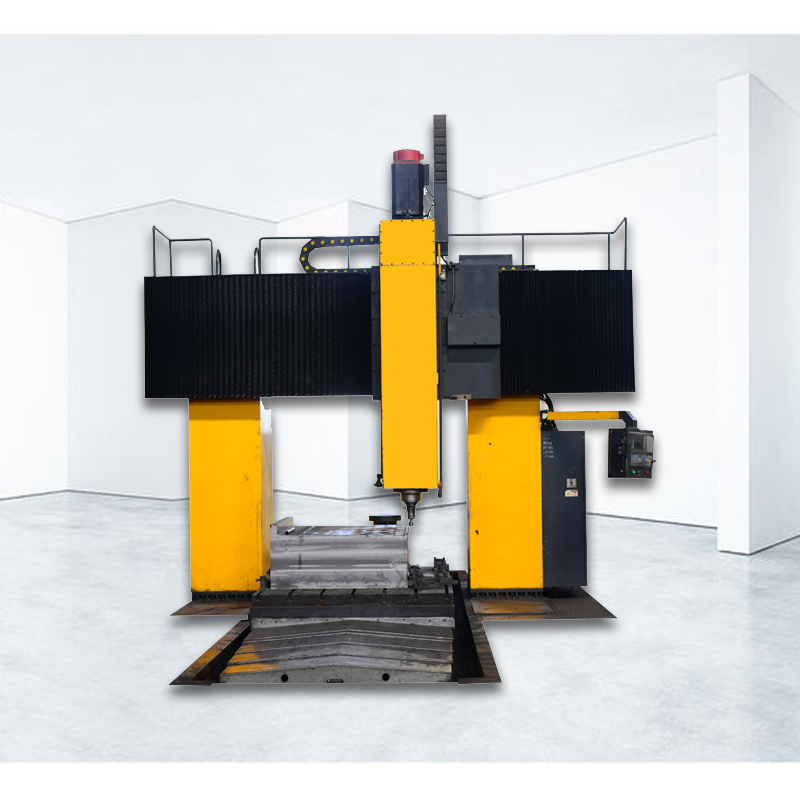

- Gantry type construction with a movable table.
- The equipment of the machine provides for the combination of turning and milling functions.
- The structure of the body parts is calculated using the finite element method, stiffening ribs ensure machining stability.
- Roller guideways in the X / Y / Z axes.
- Possibility of equipping with rotary tables and milling heads for 5-axis and 5-sided machining.
- Optical sensors for direct measurement along linear and circular axes.
- CNC system Sinumerik 828D / 840Dsl and complete electric drives from Siemens (Germany).
At the request of the customer, the machine can be equipped with:
- a globe table for five-dimensional processing;
- table with the possibility of turning;
- replaceable angular and swivel heads;
- tool measuring system made by "Renishaw" (Great Britain): contact TS-27R, contactless NC-4
- a part measuring system made by "Renishaw" (Great Britain): measurements in the plane OMP-60, measurements in the volume of MP-700.
