ALHC630
ALLES CNC

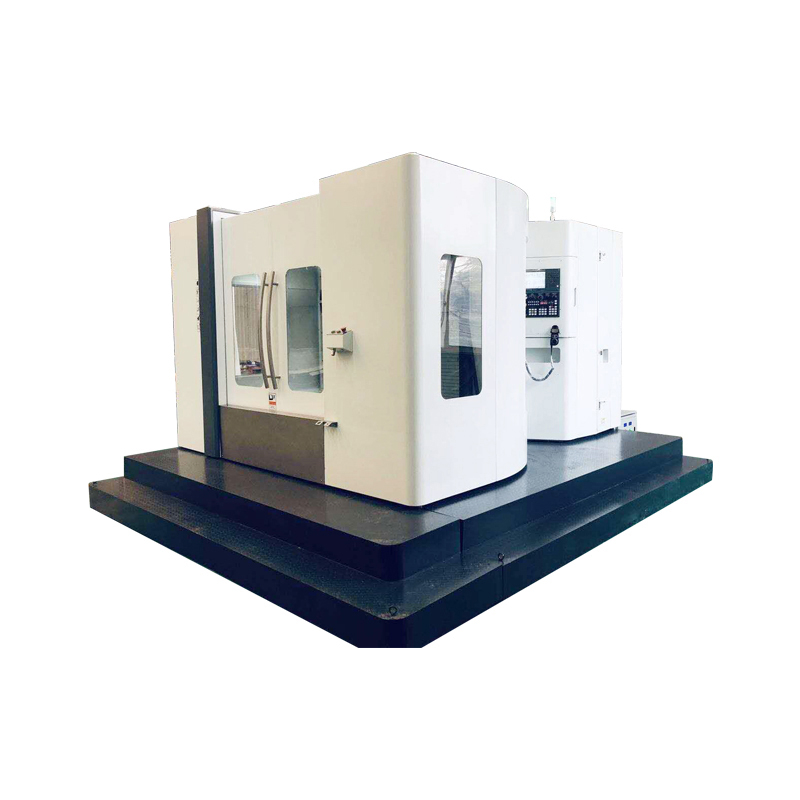

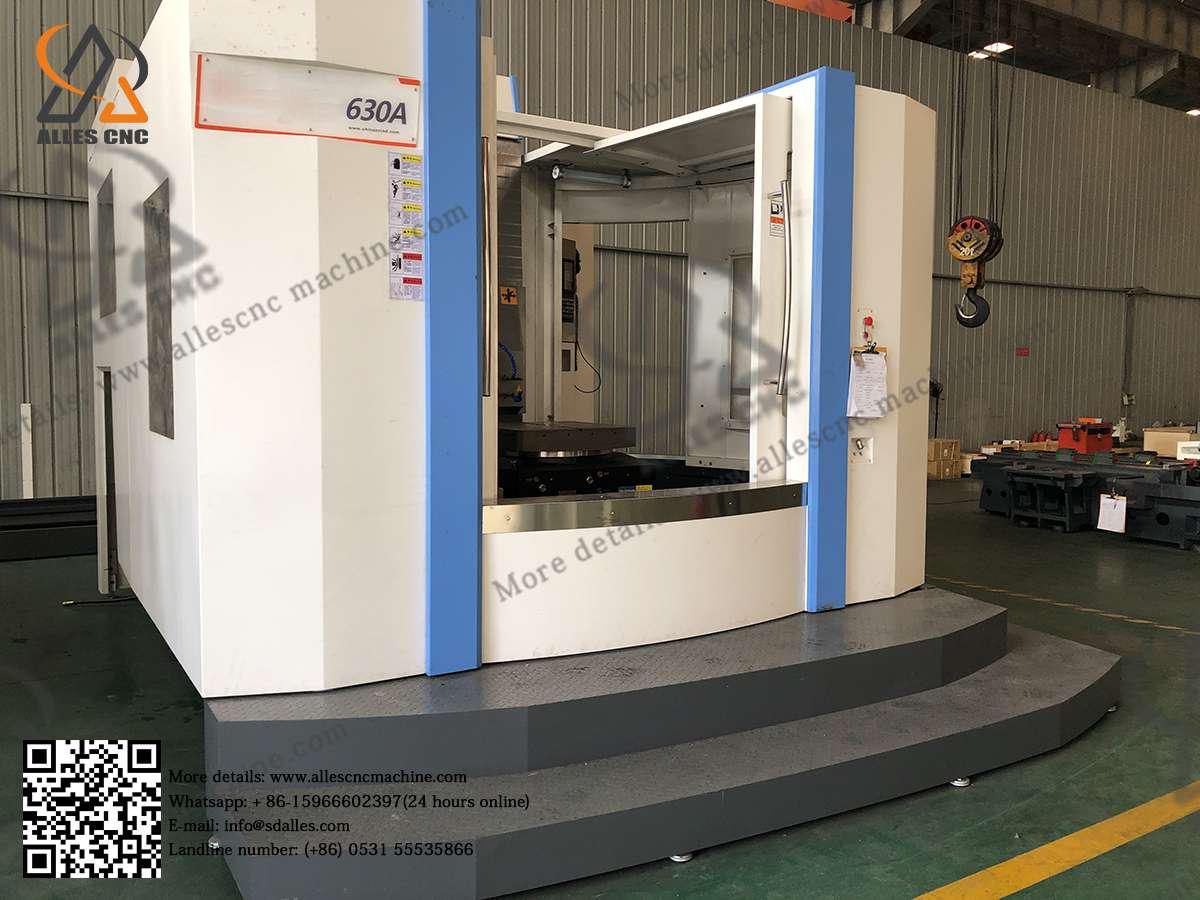

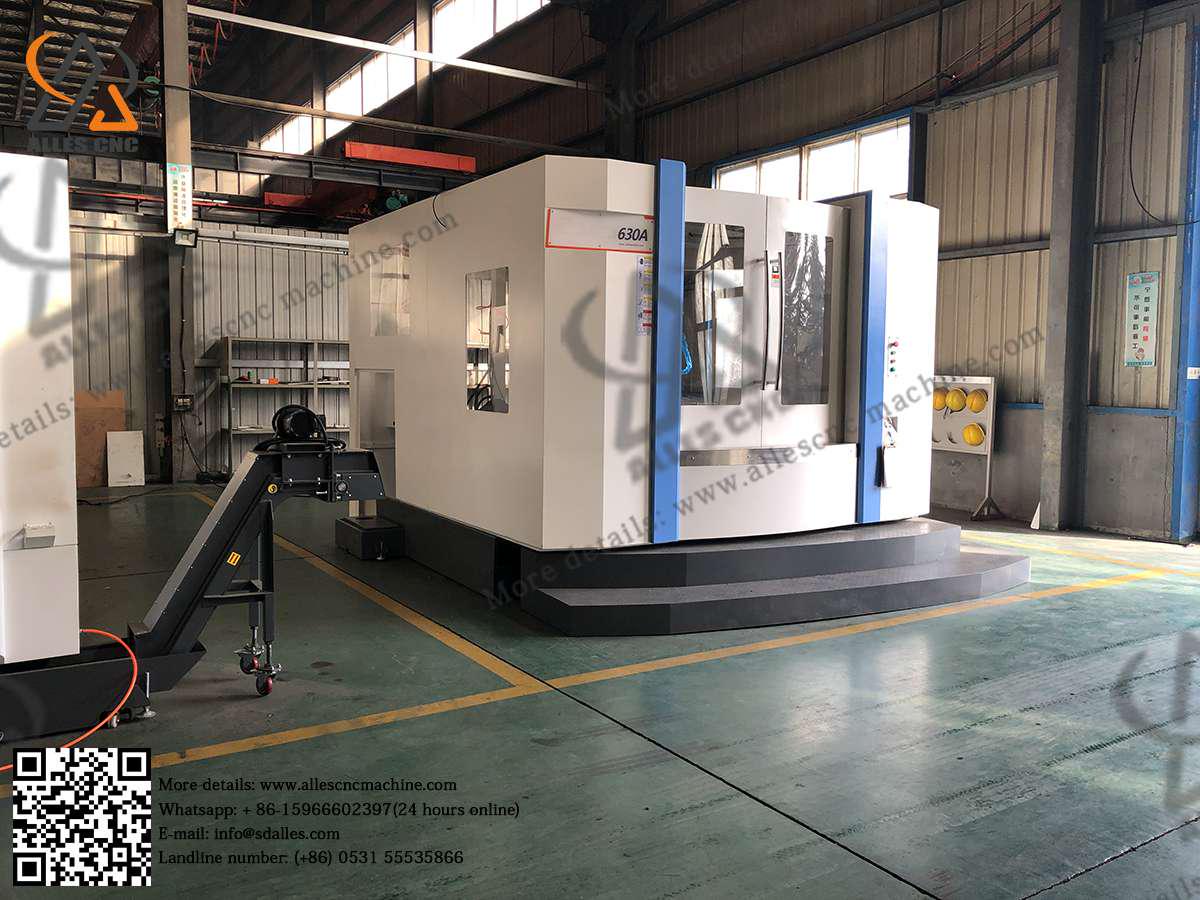

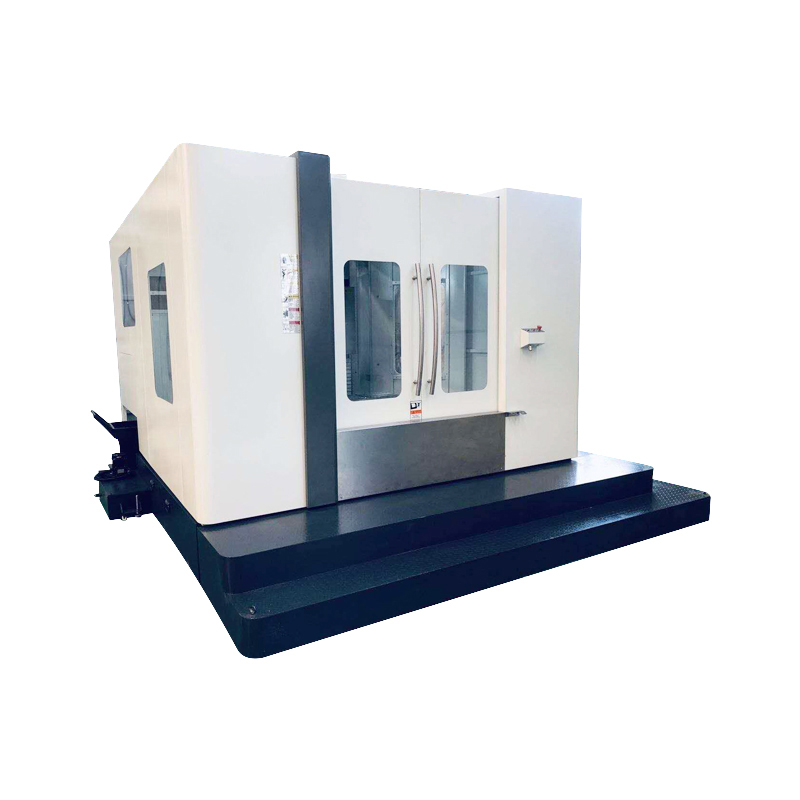

ALHC630 horizontal cnc machine center is suitable for complex machining of box parts. It can automatically exchange tools during machining. It can be used for milling, drilling, reaming, boring, reaming and tapping in one time. Modern machine tools and control concepts, compact structure design, to ensure high efficiency and high precision processing requirements for single or small batch products.
Parameters
| Item | Unit | Specification |
| Travel（X/Y/Z） | mm | 1000/900/900 |
| Spindle center line to worktable distance | mm | 100~950 |
| Spindle end to worktable center line distance | mm | 200~1100 |
| Worktable size | mm | 630×630 |
| Max. load kg | kg | 1200 |
| Max. size of work piece | mm | 1000×800 |
| T-slot（pieces×width× distance） | mm | 5×18×125 |
| positioning accuracy （X/Y/Z） | mm | 0.008 |
| Repeat accuracy（X/Y/Z） | mm | 0.005 |
| Cutting fluid volume | L | 650 |
| Machine weight | kg | 1480 |

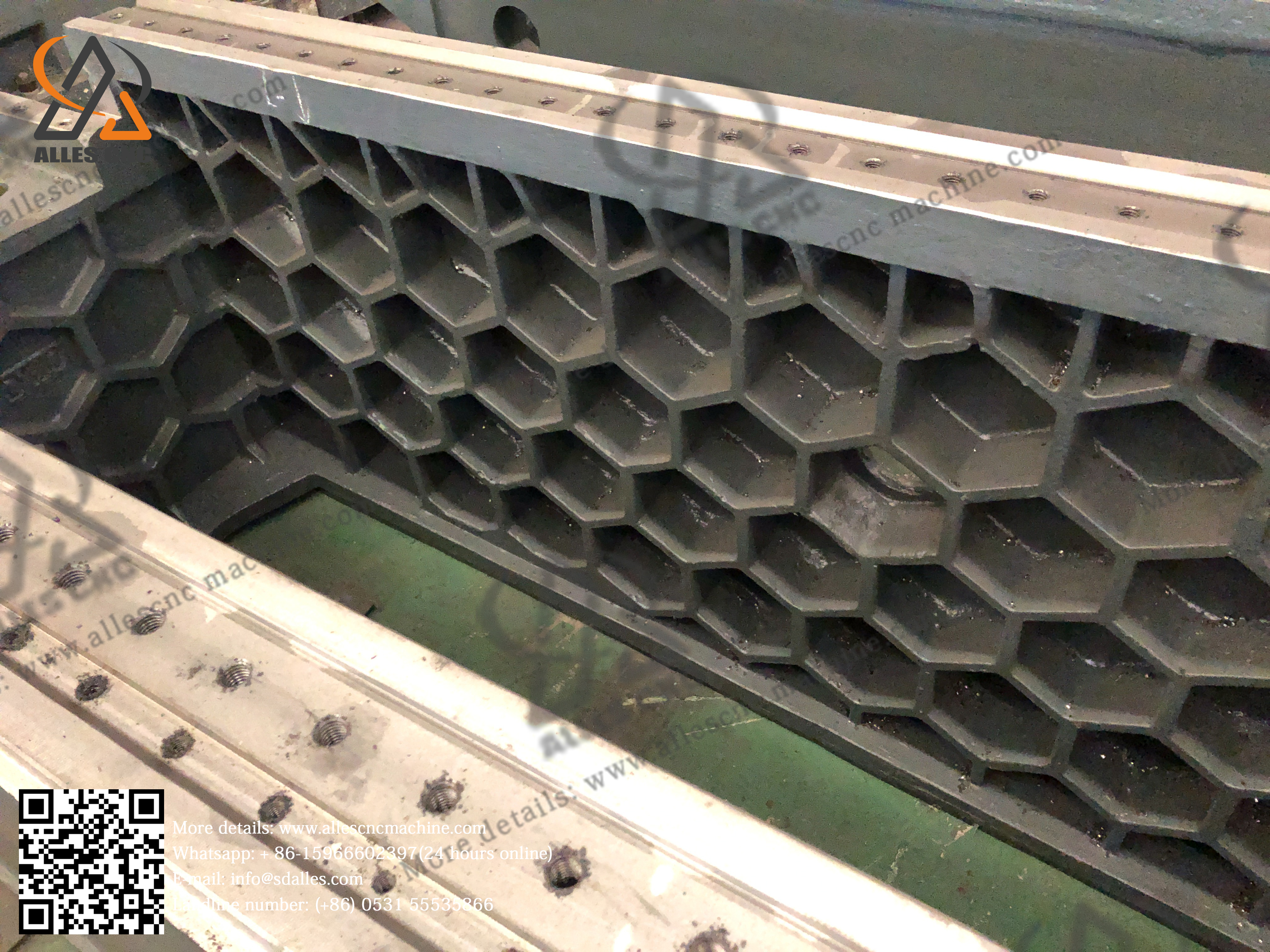

Complete machine: the main structure of the machine tool is inverted T, which improves the accuracy of machining. The traditional bed is about 700, and the overall bed of our horizontal machining center is no more than 300.

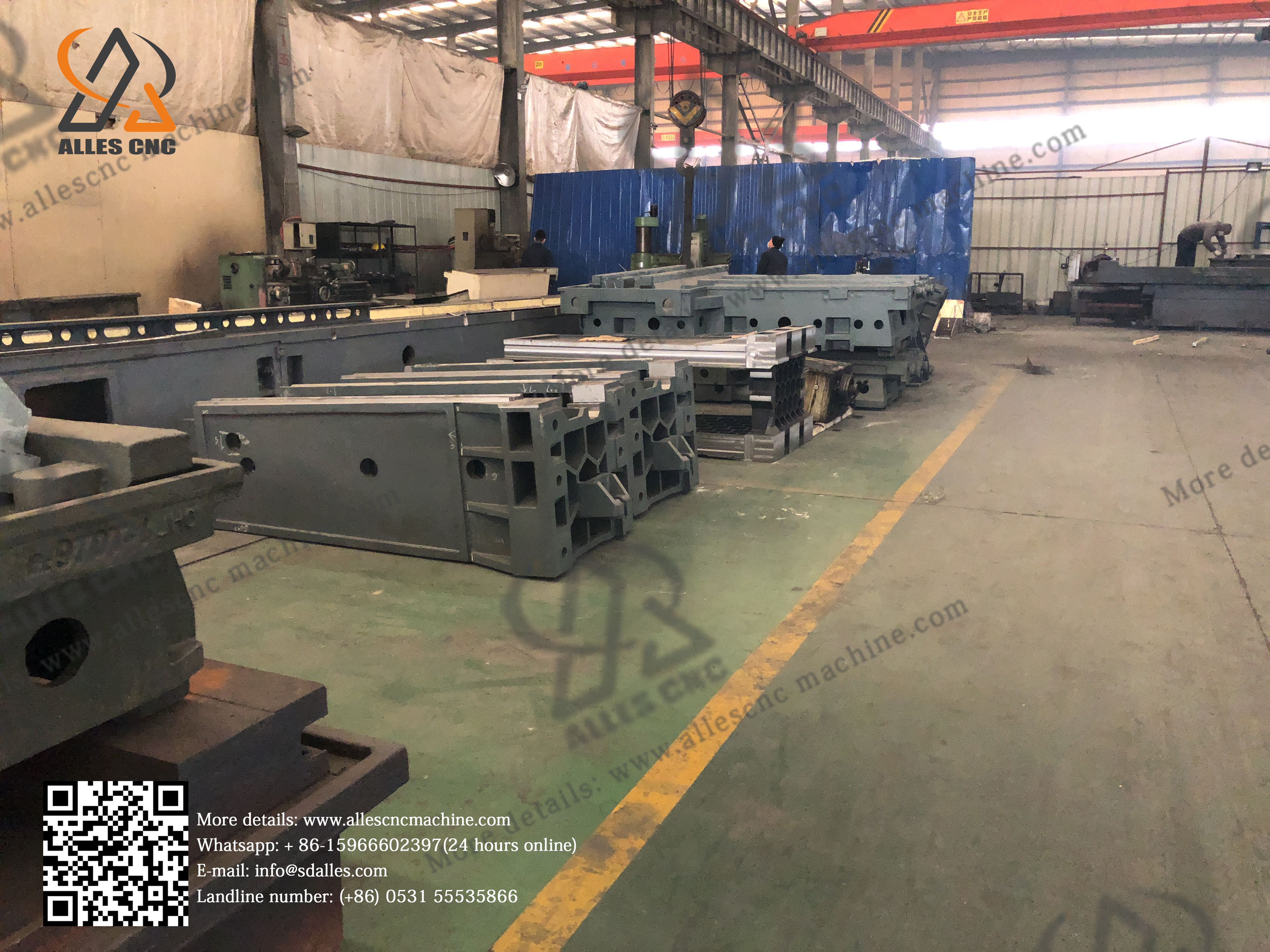

Base: the ship base is like a ship inside. All gaps are opened to facilitate chip removal.
ALHC630 horizontal cnc machine center is suitable for complex machining of box parts. It can automatically exchange tools during machining. It can be used for milling, drilling, reaming, boring, reaming and tapping in one time. Modern machine tools and control concepts, compact structure design, to ensure high efficiency and high precision processing requirements for single or small batch products.
Parameters
| Item | Unit | Specification |
| Travel（X/Y/Z） | mm | 1000/900/900 |
| Spindle center line to worktable distance | mm | 100~950 |
| Spindle end to worktable center line distance | mm | 200~1100 |
| Worktable size | mm | 630×630 |
| Max. load kg | kg | 1200 |
| Max. size of work piece | mm | 1000×800 |
| T-slot（pieces×width× distance） | mm | 5×18×125 |
| positioning accuracy （X/Y/Z） | mm | 0.008 |
| Repeat accuracy（X/Y/Z） | mm | 0.005 |
| Cutting fluid volume | L | 650 |
| Machine weight | kg | 1480 |
Complete machine: the main structure of the machine tool is inverted T, which improves the accuracy of machining. The traditional bed is about 700, and the overall bed of our horizontal machining center is no more than 300.
Base: the ship base is like a ship inside. All gaps are opened to facilitate chip removal.
