ALCK6130
ALLES CNC

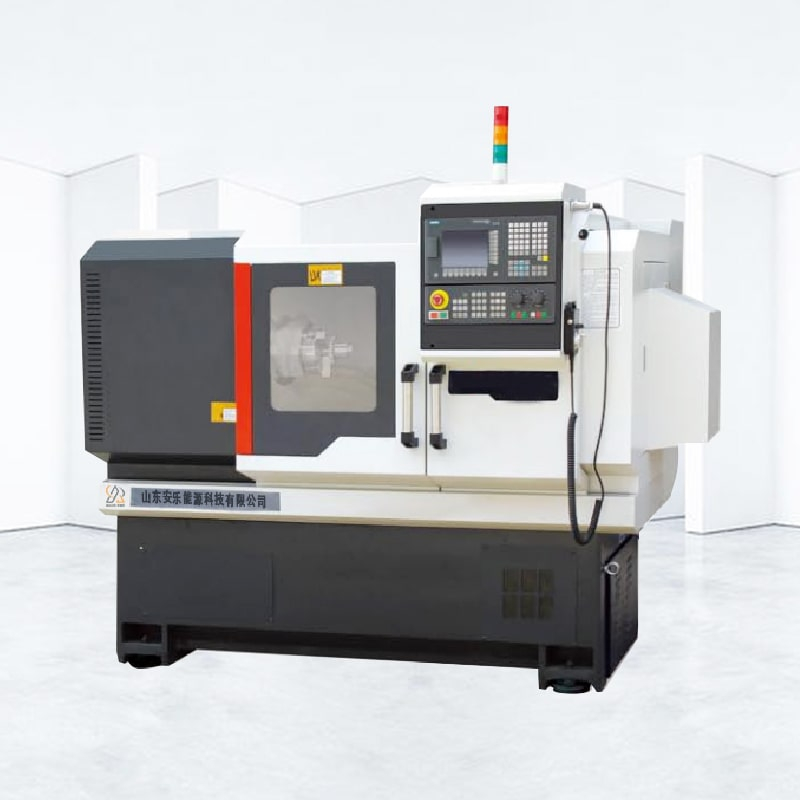

horizontal CNC lathe machine It is mainly used for cutting the inner and outer cylindrical surfaces of shaft parts or disc parts, inner and outer conical surfaces of arbitrary taper angles, complex rotating inner and outer surfaces, and cylindrical and conical threads, etc., and can perform grooving, drilling, Reaming, Reaming and Boring
1.High machining precision and stable machining quality;
2.Multi-coordinate linkage can be carried out, and parts with complex shapes can be processed;
3.When the machining parts are changed, generally only the NC program needs to be changed, which can save production preparation time;
The CNC lathe itself has high precision and rigidity, and can choose favorable processing amount, and the productivity is high (generally 3~5 times of ordinary machine tools);
4. CNC turning has a high degree of automation, which can reduce labor intensity;
5.Higher quality requirements for operators and higher technical requirements for maintenance personnel.
| Item | Unit | ALCK6130 |
| Max swing over bed | mm | Φ300 |
| X-direction rail span | mm | 160 |
| Z-direction rail span | mm | 240 |
| Maximum swing over slide | mm | Φ100 |
| Center distance | mm | 350 |
| Maximum turning length | mm | 230 |
| Spindle hole diameter | mm | Φ48 |
| Bar diameter | mm | Φ45 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 2500 |
| Diameter of tailstock sleeve | mm | Φ52 |
| Tailstock sleeve stroke | mm | 80 |
| Electric tool post knife number | Set | 4 |
| Knife square size | mm | □20×20 (four stations) |
| X stroke | mm | 280 |
| Minimum setting unit | mm | 0.001 |
| main motor power | KW | 4 |
| Total power | KW | 10 |
| Machine weight | Kg | 1700 |
| Dimensions (length × width × height) | mm | 2200×1160×1620 |
cnc lathe 3 axis tool is a high-efficiency automatic machine tool, which has the characteristics of high flexibility, high productivity, high processing precision, stable and reliable processing, etc., which can reduce the labor intensity of workers and help improve the level of production management.
CNC lathe for metal has a wide range of applications: aviation industry, aerospace industry, shipbuilding industry, automobile manufacturing, weapon manufacturing, power generation equipment manufacturing, metallurgical equipment manufacturing, engineering machinery manufacturing, mold manufacturing, electronic information equipment manufacturing, etc.
