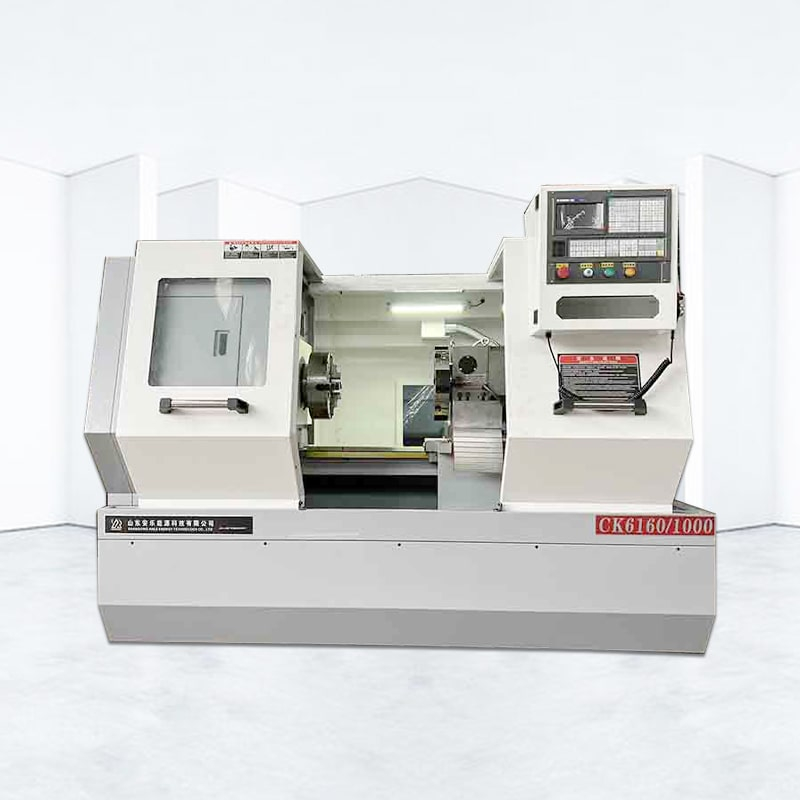

ALCK6160X1000
ALLES CNC
STANDARD CONFIGURATION
1.CNC system:GSK, FANUC, Siemens, etc.
2.Chuck: Pneumatic collets.
3.Tool： Gang Type Tool.
4.Cooling system.
5.Lighten system.
6.Automatic lubrication system.
OPTIONAL CONFIGURATION
1.CNC system: Siemens, Fanuc, KND.
2.Chuck:Hydraulic chuck, pneumatic chuck ..
4.Turret :
(1.) 4 station electric tool post.
(2.) 6 station electric tool post.
(3.) 8 station electric tool post.
5.Feeder:Automatic bar feeder.
Machining Features of ALCK6160X1000 CNC Lathe:
1. High-precision machining: CNC lathes have high-precision positioning and control capabilities, and can achieve precise machining operations. They usually have small positioning error and repeated positioning accuracy, which can meet the processing needs of high-precision parts.
2. Multiple processing functions: CNC lathes usually have multiple processing functions, such as turning, milling, drilling, tapping, etc. This enables them to complete multiple machining processes for complex parts, increasing production efficiency.
3. Automatic operation: CNC lathes are automatically operated through pre-programmed processing programs, reducing the need for manual intervention. They can automatically switch tools, adjust feed rates, execute complex machining paths, etc., improving the stability and efficiency of machining.
4. Flexibility and repeatability: CNC lathes can realize the processing of different parts by changing the processing program, which provides flexibility. At the same time, they are highly reproducible, i.e. able to maintain a consistent processing quality across different production batches.
5. High-efficiency production: CNC lathes have the ability of high-speed cutting and rapid feed, which can achieve high-efficiency production. They typically feature fast cutting speeds and quick tool change times, reducing non-machining time and increasing productivity.
6. Tool monitoring and fault diagnosis: Some CNC lathes are equipped with tool monitoring and fault diagnosis systems, which can monitor tool wear, deviation, etc. in real time, and provide corresponding alarms or automatic adjustments to ensure processing quality and tool life.
ALCK6150X1000 Flat bed CNC lathe
Equipment configuration and parameters
| Model | Unit | ALCK6160X1000 |
Maximum turning diameter of be | mm | Φ600 |
| Maximum turning diameter of carriage | mm | Ф310 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1000 |
| X/Z axis maximum stroke | mm | 300/(1000/1500) |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Ф82 (105/130) |
| X/Z axis | N.m | 5/7.5 |
| X/Z axis rapid traverse speed | m/min | 6/8 |
| Repeated positioning accuracy of tool post | mm | ≤0.004 |
| Diameter of tailstock sleeve | mm | Φ75 |
| Tailstock sleeve stroke | mm | 200 |
| Machine size (length×width×height) | mm | 2940*1400*1700 |
| Electricity demand (power/current) | kW/A | 15kW/20A |
| Chuck | 320mm manual three-jaw chuck |
