ALCK6150X1000
ALLES CNC
CNC lathe is an automatic CNC lathe with high precision and high efficiency.
Super low price CNC lathe ALCK6150
CNC lathe machine metal is made of high-rigidity cast iron with an integral casting structure, which is 30% more rigid and stable than the integral bed foot structure. It is molded with resin sand and has been treated with aging. High-precision and high-strength ball screws are used for feed in X and Z directions;high-efficiency arranging tools are used as standard, and the tool change efficiency is high. Four-station CNC vertical electric tool holders are optional, with high precision and stable rotation , No lifting action is simple and other features.
Equipment configuration and parameters
| Item | Unit | ALCK6150x1000 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1000 |
| X/Z axis maximum stroke | mm | 300/1000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | F82 |
| Spindle speed limit | rpm | 150-2000/60-1600 |
| Main motor power (frequency conversion) | kW | 7.5 |
| Frequency converter | kW | 7.5 |
| X/Z axis | N.m | 5/7.5 |
| X/Z axis rapid traverse speed | m/min | 6/8 |
| Tool bar size | mm | 25*25 |
| Repeated positioning accuracy of tool post | mm | ≤0.004 |
| Diameter of tailstock sleeve | mm | F65 |
| Tailstock sleeve stroke | mm | 130 |
| Electricity demand (power/current) | kW/A | 15kW/20A |
| Weight | Kg | 2500 |
| Machine size | mm | 3030*1600*2050 |
Super low price CNC lathe ALCK6150x1000 With Siemens CNC system
Automatic CNC lathe machine guide with wear-resistant cast iron and after the audio quenching, the hardness of the above, can ensure the long-term stability of processing accuracy.

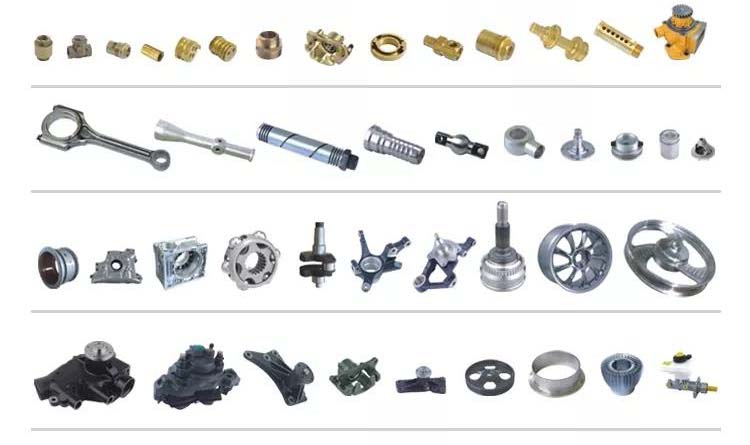

Automatic CNC lathe machine has the characteristics of high precision, high power, high rigidity, etc. Its main components and structures have been optimized design, and can process shafts, discs, sleeves, special-shaped surfaces and screw work pieces.
