ALCK6180X1500
ALLES CNC
Motor
1.ALLES CNC CNC lathe The tool post is located on precision contrite gears with a high repeated positioning accuracy.
2.CNC lathe machine Both chuck and tail stock are supplied with hydraulic or manual type.
3.CNC lathe machine The surface of the guide is supersonic frequency hardened and precision ground with a long Serve life.
4.The spindle system is high in the rigidity and accuracy.
5.An inverter is used to realize variable speed.
ALCK6180X1500 CNC Lathe Machine
1.The ALLES CNC superior model of the CNC lathe machine, through the design of the 30-degree oblique wedge saddle and the optimized structure design of the heavy-duty structure foundation, makes the whole machine remain stable and rigid after a long time of cutting.
2.CNC lathes are divided into linear guides and box guides to choose from. For different applications and optimizing production efficiency, Comet High is the cutting efficiency of your high-precision work pieces.
Automatic CNC lathe machine Metal mold, injection mold, precision machinery, electronic machinery, electric motor, automobile and motorcycle industry, bicycle industry, medical equipment and electronic equipment and other industrial fields.

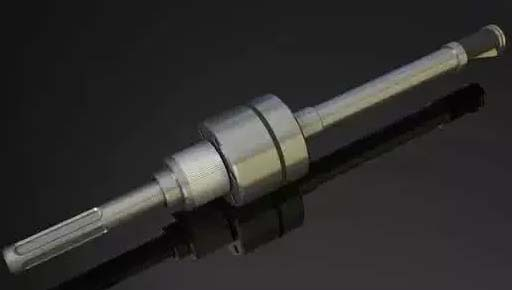

Processing hardware work piece：CNC horizontal lathes process discs and cylinders, tapers, grooves, grooves, threads, boring and reaming.
Committed to bringing more profits to customers！
Equipment configuration and parameters
| Project | Content | Unit | ALCK6180x1500 |
| Processing range | Maximum turning diameter of bed | mm | Φ800 |
| Maximum turning diameter on skateboard | mm | Φ440 | |
| Maximum processing length | mm | 1500 | |
| Maximum machining diameter | mm | Φ800 | |
| Maximum bar diameter | mm | Φ440 | |
| Spindle hole diameter | mm | Φ105 | |
| X/Z axis screw diameter × pitch | mm | φ3208/φ5010 | |
| X/Z fast moving speed | 4/6 | ||
| Number of stations | m/min | 4 | |
| Tool specifications: turning/boring | mm | 32/40 | |
| Tailstock | Sleeve diameter/stroke | mm | Φ100/250 |
| Motor | Spindle motor power | Kw | 11 |
| Spindle motor torque | NM | 48 | |
| X/Z motor power | Kw | 1.5/2.3 | |
| X/Z motor torque | NM | 10/15 | |
| Machine weight | kg | 4500 | |
| Machine size: length×width×height | mm | 3990/1900/2000 |
