ALCK6150
ALLES CNC
ALCK6150X1000 CNC Lathe Machine You can leave your contact information or contact us.
1.High processing precision and stable processing quality;
2.Multi-coordinate linkage can be carried out, and parts with complex shapes can be processed;
3.When the machining parts are changed, generally only the NC program needs to be changed, which can save production preparation time;
The Main Technical Parameters
| Model | Unit | ALCK6150x1000 |
| Maximum turning diameter of bed | mm | φ500 |
| X-direction rail span | mm | 210 |
| Z-direction rail span | mm | 400 |
| Maximum turning diameter of slide | mm | φ280 |
| Center distance | mm | 1000 |
| Maximum turning length | mm | 850 |
| Spindle hole diameter | mm | φ52 |
| Bar diameter | mm | φ52 |
| With hollow chuck pull rod through hole | mm | φ40 |
| Spindle speed range | rpm | Manual 2 gear（70 ~700，160~1600） |
| Electric tool post knife number | Bundle | 4 |
| Knife square size | mm | □25×25($ tool set) |
| X stroke | mm | 300 |
| Z stroke | mm | 1000 |
| Minimum setting unit | mm | 0.001 |
| main motor power | KW | 7.5 |
| Total power | KW | 12 |
| Machine weight | Kg | 2000 |
| Dimensions (length × width × height) | mm | 2600×1560×1710 |
1.The spindle speed is high, the optional frequency conversion speed regulation range is wide, and the noise of the whole machine is low.
2.The unique electronically controlled automatic shifting mechanism can be selected. High, medium and low gears can be automatically switched, and the program can run continuously, which greatly improves the processing efficiency.
3.The appearance protection design of the machine tool is in accordance with the international fashion trend, the shape is novel and unique, waterproof, anti-chip, and easy to maintain; it reflects the characteristics of the times.
4.The diameter of the through hole of the main shaft is large, the ability to pass through the bar is strong, and the scope of application is wide.
5.The mini CNC lathe operating system is based on the principle of ergonomics. The control box is independent and rotatable, and can be moved at any position, which is convenient for the operator to set the knife nearby, which is the embodiment of humanized design.

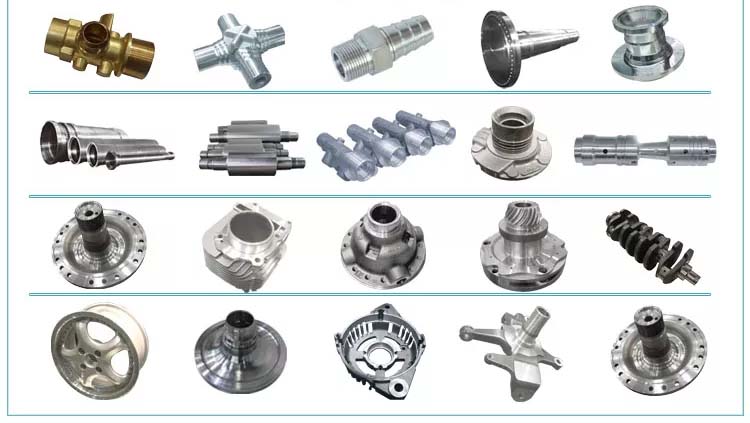

CNC turning center arranging tool holder structure, quick and time-saving tool change, high positioning accuracy and high production efficiency. It is suitable for mass processing and single-piece processing of various precision parts such as processing instruments, meters, electronic connectors, optics, automobile and motorcycle parts, and hardware.
