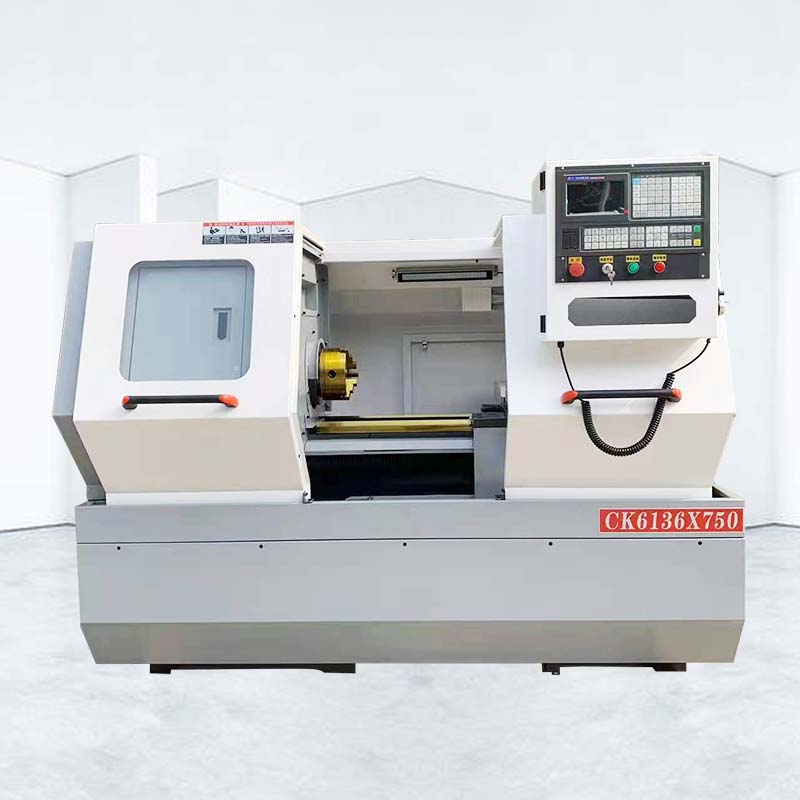

ALCK6136x750
ALLES CNC
1. Full protective sheet metal design, beautiful and practical. The spindle pressure regulating gauge and the valve are located in front, which is easy to operate. Hollow sheet metal to reserve position and space for the installation of the manipulator.
2. The two ends of the flat bed CNC lathe screw are designed with double pre-tensioning to improve the precision and stability of the cnc lathe 3 axis.

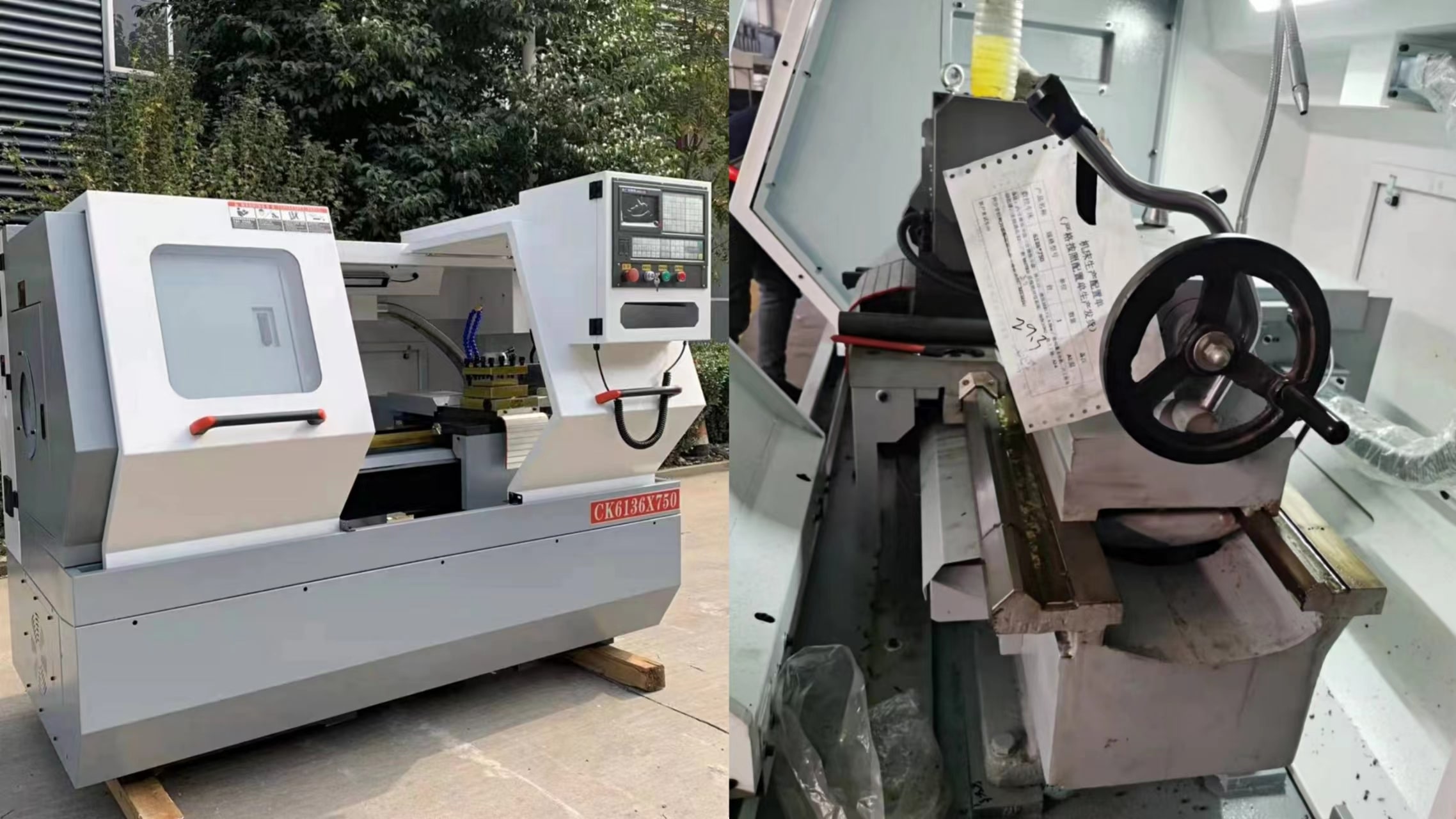

CNC Lathe machine ALCK6136 inspection machine
Equipment configuration and parameters
Item | Unit | ALCK6136-750 |
| Max swing over bed | mm | Φ360 |
| Maximum turning diameter on the tool post | mm | Φ200 |
| Maximum workpiece length between two centers | mm | 750 |
| Spindle through hole diameter | mm | Φ52 |
| Spindle speed range (infinite): | r/min | 150-2000 |
| Spindle end model ISO (GB) | A2-6 | |
| Spindle motor power | kw | 5.5 |
| CNC tool holder | Vertical four-station tool holder | |
| Tool handle size | mm | 20×20 |
| X stroke | mm | 200 |
| Z stroke | mm | 750 |
| Minimum setting unit | mm | 0.01 |
| Overall dimensions of machine tool (length×width×height) | mm | 2350mm×1380mm×1640mm |
| Net weight | kg | 1600 |
Super low price ALCK6136X750
1.Lathe bed and base is big and wide. Strong rigidity.Good shock resistance.
2.Fully-guarded with metal plate.Good water resistance.Compact structure.Convenient chip removal.
3.Spindle is designed in advanced structure. Step less speed regulating.
4.AC servo unit is used for both vertical and horizontal drive.High accuracy of positioning.
5.Computerized electronic centralized lubrication pump is adopted.Sufficient and reliable lubrication.
6.X-direction carriage is wide .Long travel.Multiple straight line tool holders can be installed.Processing range is large.
7.Especially suitable for high-speed machining for small pieces with non-ferrous metals.
This series of products is widely used in the machining of automobiles, petroleum and military industries and other industries, and is a famous brand product selected by the first domestic user.
