ALCK61100X1500
ALLES CNC

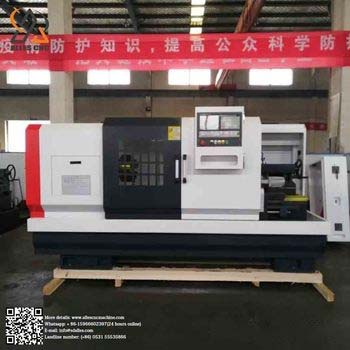

ALCK61100X1500 CNC Lathe Machine
1.CNC lathe to the basic functions of turning, grooving and chamfering, the machine tool can also perform various metric and inch internal and external thread processing, as well as drilling, expansion, reaming, rolling and other processing;
2.CNC lathe machine It is able to process cylindrical, conical, stepped, spherical and other various curved surfaces, such as short-axis (or disc) parts with complex geometric shapes, many sizes and high precision requirements;
3.Suitable for processing bars with the diameter below Φ40mm(spindle through hole),disks and short shaft parts with a diameter below Φ350mm（this range may vary depend on the fixture）；
4.Flat bed CNC lathe Suitable for the production of single or medium and small batches of non-ferrous and ferrous metal work pieces of small and medium specifications;
5. CNC lathe tool is suitable for the automated production of machinery, instruments, light industry, electronics, medical instruments and other industries.
Equipment configuration and parameters
| Model | Unit | ALCK61100E |
| Maximum turning diameter of bed | mm | φ1500 |
| X-direction rail span | mm | 330 |
| X-direction rail span | mm | 600 |
| Maximum turning diameter of slide | mm | φ65 |
| Center distance | mm | 1500 |
| Maximum turning length | mm | 1500 |
| Spindle hole diameter | mm | φ105 |
| Bar diameter | mm | φ105 |
| With hollow chuck pull rod through hole | mm | φ88 |
| Diameter of tailstock sleeve | mm | φ100 |
| Tailstock sleeve stroke | mm | 250 |
| Tailstock configuration | Regular handle | |
| Knife square size | mm | □40×40(4 tool set) |
| X/Z direction fast moving speed | m/min | 4/5 |
| X stroke | mm | 530 |
| Z stroke | mm | 1600 |
| Minimum setting unit | mm | 0.001 |
| main motor power | KW | 15 |
| Total power | KW | 20 |
| Machine weight | Kg | 4700 |
Dimensions (l×w×h) | mm | 4100×2160×2200 |
CNC lathe ALCK61125X1500
1．CNC lathe adopts horizontal flat bed structure,the surface of guide way is processed by precise grinding after quench treatment,has good accuracy and accuracy maintenance；
2.CNC metal lathe adopts independent spindle structure with high precise bearings,high spindle speed、small thermal deformation;
3.Adopt the integral bed foot and semi-encolsed protection structure,the rigidity is better and easy to use tail stock；
4.Electromechanical and hydraulic integrated design with compact structure and elegant appearance；
5.Can equip gang type tool post、4 station vertical electric tool post;
6.Vertical and horizontal drive adopt the high-performance AC servo motor with high positioning accuracy、flexible and reliable action;
7.Adopt automatic centralized lubrication device,lubrication is fully reliable;
8.The control system uses well-known CNC system in domestic and abroad,which is reliable to perform and easy to operate.The machine meets the ergonomic design and requirements and the maintenance cost is lower.
The CNC lathe is suitable for medium to large size work pieces in steel, cast iron and non-ferrous metals. With large power and high rigidity, this CNC lathe is applied to cutting inner circle, outer circle. end face and thread in metric and english, and can punch and punch holes.
