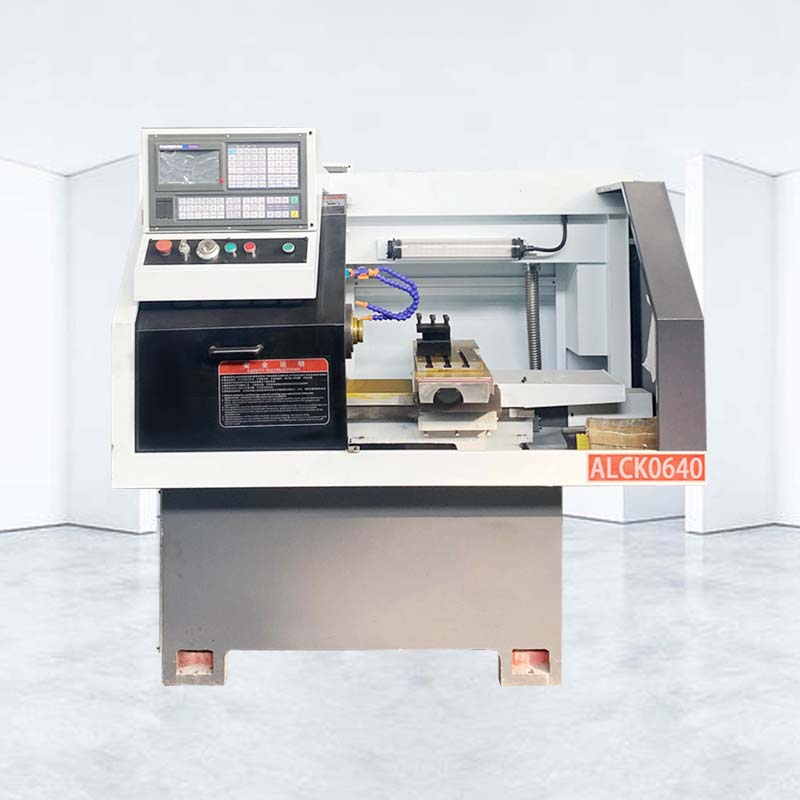

ALCK0640
ALLES CNC
1. Flat bed type 20 Horizontal CNC Lathe has beautiful appearance, novel and unique shape, waterproof, anti-chip, convenient maintenance, reasonable structure, and reflects the characteristics of the times; the roller screw has a compact and sturdy structure, linear track, fast moving speed and high efficiency;
2. Knife row structure, convenient to install knives, fast and simple, and rich in matching methods.
3. The spindle chuck hidden in the spindle has good precision, high speed, long service life and low noise. It is suitable for the production of high-precision small parts in large quantities, especially for complex and high-precision parts.
4: Servo spindle drive, large output torque at low speed, linear guide rails for vertical and horizontal guide rails, high positioning accuracy and good dynamic performance
Equipment configuration and parameters
| Item | Unit | ALCK0640 |
| Max swing over bed | mm | Φ 250 |
| Maximum swing over slide | mm | Φ 120 |
| Spindle hole diameter | mm | Φ 48 |
| With hollow chuck pull rod through hole | mm | Φ 40 |
| Spindle speed limit | rpm | 3000 |
| Z stroke | mm | 220 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | Kg | 800 |
| Dimensions (length × width × height) | mm | 1620 * 1340 * 1680 m |
1. The horizontal CNC lathe for metal bed has a solid structure and can withstand the inertia generated by high-speed Motion.
2. The X/Y/Z three-axis adopts high-speed mute screw and mute linear rail to make the thermal displacement less and high Precision.
3. 36/48 meters adjustable displacement, which can save 50% of non-processing time.
4. The design of The heightened column reserves The space for The installation of The fourth and fifth axes.
5. The imported three-axis shield protects the screw rail and improves the service life of the horizontal CNC lathe.
Application areas of CNC technology: The major of CNC technology is mainly for machinery, mold, electronics, electrical, light industry and other industries.
