ALVMC640
ALLES CNC

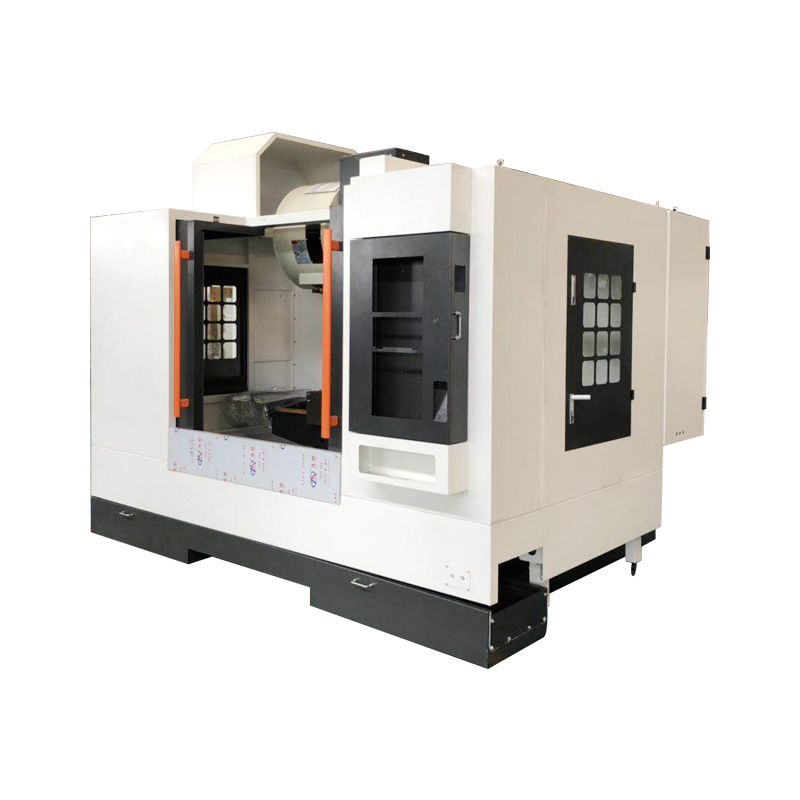

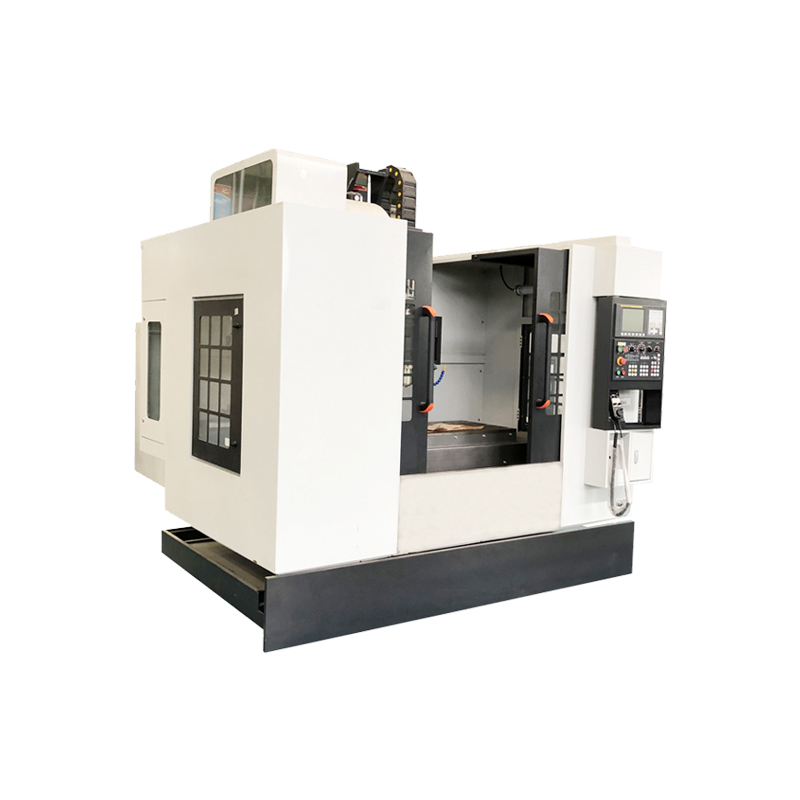

CNC Machine VMC Center CNC 3 Axis 5 Axis Milling Machine
High Precision Low Price CNC Machine VMC Center CNC 3 Axis 5 Axis Milling Machine VMC1580 of china of ALLES CNC.
Video Display
Product details
Product parameter
| Machine Type | ALVMC640 | |
| Working table | Working table's size/mm | 800*420 |
| Working table's maximum bearing capability/kg | 400 | |
| Travel | X axle travel/mm | 600 |
| Y axle travel/mm | 420 | |
| Z axle travel/mm | 500 | |
| Working table to spindle's face/mm | 80-580 | |
| The distance from Spindle's center to vertical guide rail/mm | 550 | |
| Spindle | Spindle's rotary speed m/min | 8000 |
| Spindle's specification | BT40-Φ120 | |
| Spindle Motor/kw | 5.5/7(Fanuc) | |
| Feed speed | Fast-moving speed m/min | 18 |
| Feed speed m/min | 5 | |
| Feed motor/kw | X.Y:1.6 Z:3 | |
| Auto cutter-change device | Tool shank model | MSA BT40 |
| Blind rivet type | MSA P40T-1 | |
| ATC type(optional) | bamboo split 16 cutters | |
| Machine tool's size | Appearance size/mm | 2650x2000x2235 |
| Weight/T | 4.5 |
FAQ
Q.What are your normal lead times?
A.Our company typical lead times range from 3-4weeks after receipt of order.
Q.What kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification
A.Yes, we have CE certification, machine quality is one year guaranteed.
