ALVMC1580
ALLES CNC

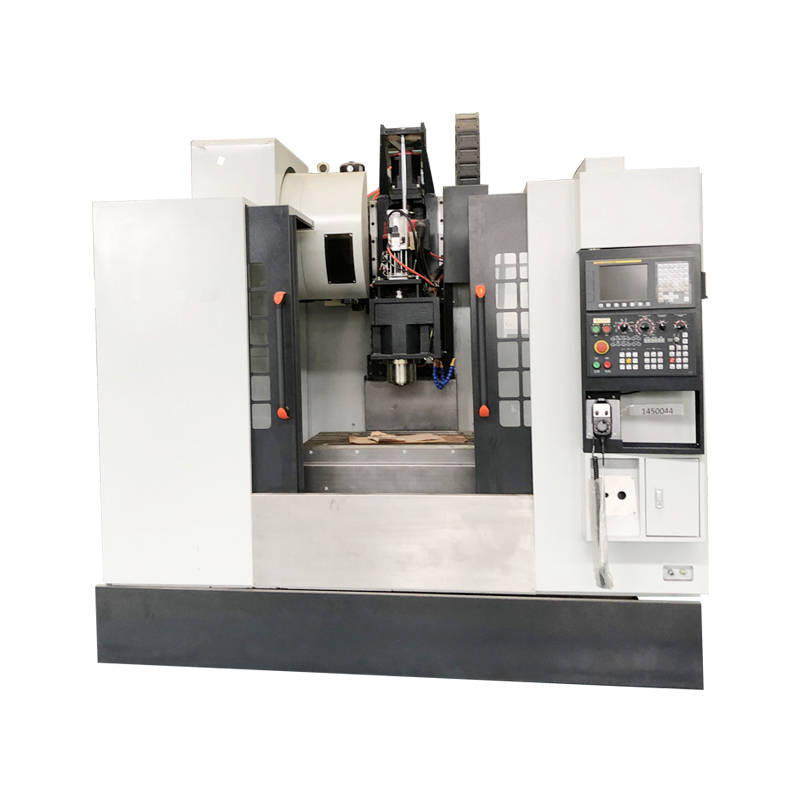

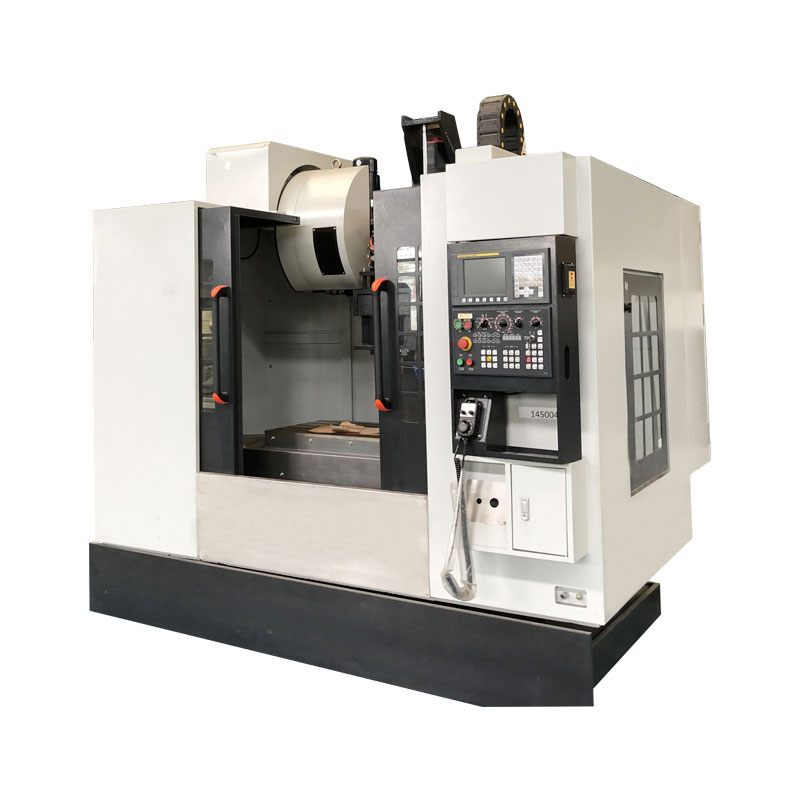

CNC Milling Machine Vertical Metal Milling Machine
This machine tool is a vertical machining center suitable for machining and moldmanufacturing, and can adapt to the processing requirements from rough machiningto finishing ,and can complete various processes such as milling, rilling, tapping,and boring.
The machine body and main components are all high-strength cast iron with stablemetallographic structure to ensure the long term stability of the machine tool;
Pre- -stretched precision ball screw drive;
High-speed, high- precision, high-rigidity spindle unit;
Oil-water separation design;;
Intermittent automatic lubrication;
Pneumatic loosening and broaching system.
Video show
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Taiwan linear railway
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling, drilling, tapping, boring ,etc.
Product parameter
| Item | Unit | ALVMC1580 | |
| Worktable | Worktable size | mm | 1600*800 |
| Load capacity | kg | 1000 | |
| T-slot (width x number x pitch) | mm | 18x7x110 | |
| Travel | X-axis travel | mm | 1500 |
| Y-axis travel | mm | 800 | |
| Z-axis travel | mm | 700 | |
| Spindle | Distance from spindle nose to work surface | mm | 185-885 |
| Distance from spindle center to column | mm | 855 | |
| Spindle speed | rpm | 6000 | |
| Spindle taper | Type | BT-50 | |
| Spindle head casing bore | mm | φ190mm | |
| Spindle transmission mode | / | Belt spindle | |
| Automatic tool change | Tool diameter (no adjacent tool) | mm | Φ115（Φ228） |
| Maximum tool length | mm | 350 | |
| Maximum tool weight | kg | 15 | |
| Other | Positioning accuracy | mm | 0.02 |
| Repeated positioning accuracy | mm | 0.01 | |
| Floor area and height | mm | 3550*3100*2850 | |
| Machine weight | kg | 12000 | |
Special models, can be customized

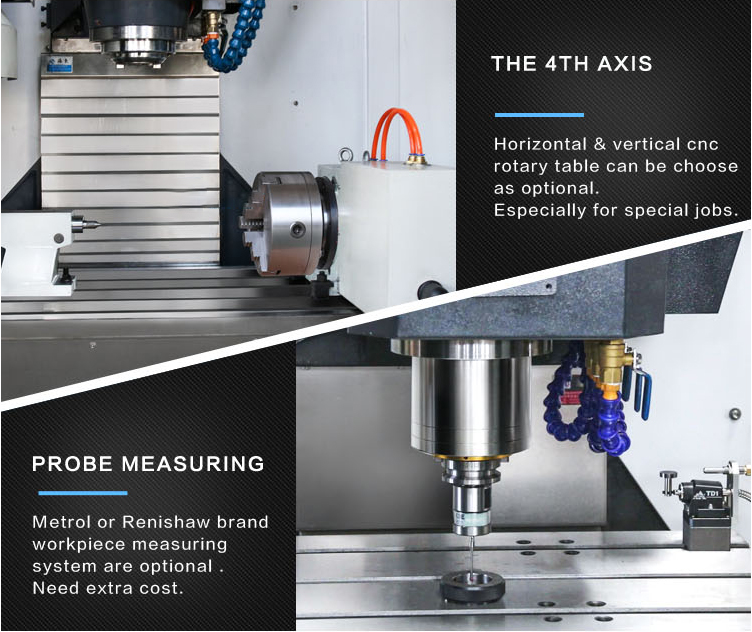

The 4 axis vertical machine center
Horizontal & vertical cnc rotary table can be choose as optional.
Especially for special jobs.

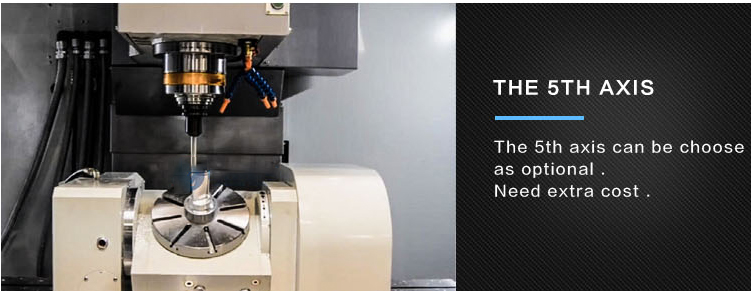

The 5th axis vertical machine center
The 5th axis can be choose as optional.
Need extra cost.
FAQ
Q.What are your normal lead times?
A.Our company typical lead times range from 3-4weeks after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".
