ALVMC300
ALLES CNC
1. 3 axis machine center Spindle adopts imported frequency converters, which could fulfill variable speed control & constant linear speed cutting functions; machining body adopts ultrasonic frequency hardening treatment;
2. Mini CNC milling machine both X-axle & Z-axle adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball screws. With high power, pleasant rigidity, high precision & storage, high price-quality ratio and long cycle life.
The CNC Vertical Machine Center equipment first performs the process of casting, aging, tempering, and secondary tempering to ensure the quality of the equipment.
Technical Parameters
| Model | ALVMC300 |
| X axis | 300mm |
| Y axis | 200mm |
| Z axis | 300mm |
| Distance from spindle nose to table | 50~350mm |
| Worktable size | 500*200mm |
| Max. loading capacity | 200kg |
| Spindle motor | 1.5kw |
| Spindle speed | 6000rpm |
| Spindle taper | BT30 |
| Cutting speed | 1-4000 mm / min |
| Fast speed | X / Y / Z: 20 m / min |
| Positioning accuracy | ±0.01/300 mm |
Optical machine area | mm1500×950×1500 |
| The whole machine covers an area | mm1600×1500×2000 |
ALLES CNC CNC machining center is specially designed for dual source domestic hot water systems. Compact solar kits offer optimized energy use, combustion protection and convenience. Using only thermostatic (non-electrical) components makes this unit highly self-contained and very easy to install.

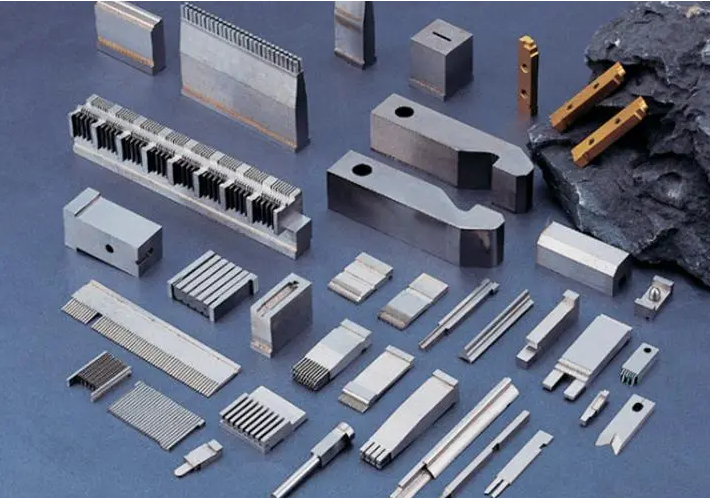

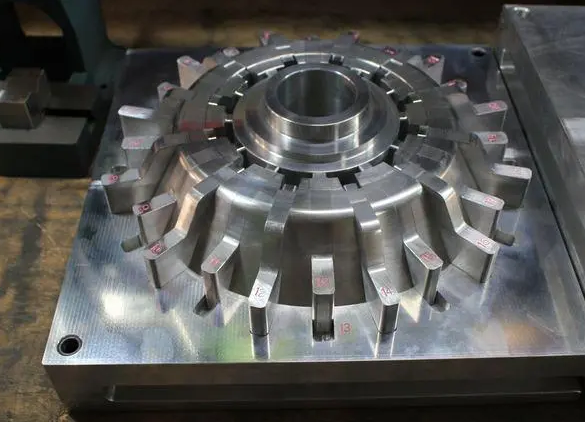

CNC machine tool metal milling is mainly suitable for processing complex parts such as plates, discs, molds, and small shells. Metal CNC milling machines can perform operations such as milling, boring, drilling, tapping and thread cutting.
1. 3 axis machine center Spindle adopts imported frequency converters, which could fulfill variable speed control & constant linear speed cutting functions; machining body adopts ultrasonic frequency hardening treatment;
2. Mini CNC milling machine both X-axle & Z-axle adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball screws. With high power, pleasant rigidity, high precision & storage, high price-quality ratio and long cycle life.
The CNC Vertical Machine Center equipment first performs the process of casting, aging, tempering, and secondary tempering to ensure the quality of the equipment.
Technical Parameters
| Model | ALVMC300 |
| X axis | 300mm |
| Y axis | 200mm |
| Z axis | 300mm |
| Distance from spindle nose to table | 50~350mm |
| Worktable size | 500*200mm |
| Max. loading capacity | 200kg |
| Spindle motor | 1.5kw |
| Spindle speed | 6000rpm |
| Spindle taper | BT30 |
| Cutting speed | 1-4000 mm / min |
| Fast speed | X / Y / Z: 20 m / min |
| Positioning accuracy | ±0.01/300 mm |
Optical machine area | mm1500×950×1500 |
| The whole machine covers an area | mm1600×1500×2000 |
ALLES CNC CNC machining center is specially designed for dual source domestic hot water systems. Compact solar kits offer optimized energy use, combustion protection and convenience. Using only thermostatic (non-electrical) components makes this unit highly self-contained and very easy to install.
CNC machine tool metal milling is mainly suitable for processing complex parts such as plates, discs, molds, and small shells. Metal CNC milling machines can perform operations such as milling, boring, drilling, tapping and thread cutting.
