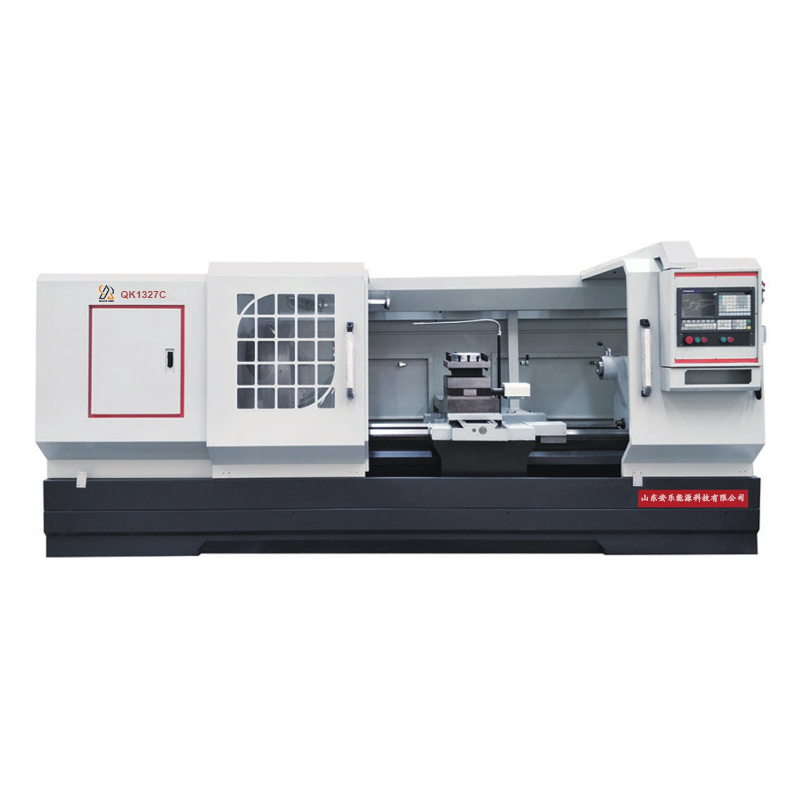

ALQK1327
ALLES CNC
ALLES CNC CNC CNC pipe thread lathe adopts the double chuck clamping mode
The Main Technical Parameters
| Project | Content | Unit | ALQK1327 |
| Processing range | Maximum turning diameter of bed | mm | Φ630 |
| Maximum turning diameter on the skateboard | Φ380 | ||
| Maximum processing length | mm | 2000 | |
| Maximum machining diameter | mm | Φ630 | |
| Maximum bar diameter | mm | Φ350 | |
| Spindle through hole diameter | mm | Φ270 | |
| tailstock | Sleeve diameter/stroke | mm | Φ100/250 |
| X/Z motor torque | NM | 10/15 | |
| Cooling pump motor power | W | 125 | |
| Others | battery capacity | KVA | 15 |
| Rail form | Hard rail (greater than HRC50) |
Please note that the bed length can be customized according to the actual needs of customers
1.ALLES CNC Big spindle bore and double chuck to ensure process big diameter pipe
2.CNC lathe machine One-piece bed adopts high strength iron to ensure rigidity and precision
3.Ultrasonic frequency quenched guide-ways ensure good wear-resistance
4.CNC metal lathe Carriage and guide way contact surface use to maintain accuracy
CNC system (Siemens, Fagor, GSK, KND), turret (servo, hydraulic, power), chip conveyor, air conditioner, full protective cover, hydraulic
Tailstock, Chuck, Steady frame, Driven frame, Signal lights, Grinding accessories, etc.
ALLES CNC The automatic CNC lathe machine can turn metric, inch cylindrical, tapered pipe threads, and can also be used to replace external lathes, boring, internal and external cones, planes, etc. of lathes. Lathes are widely used in petroleum, gold manufacturing, chemical, Hydro power geological exploration and other industries. Other departments are responsible for the processing of drill pipes, drill ships and casing.
