ALTck-52D
ALLES CNC

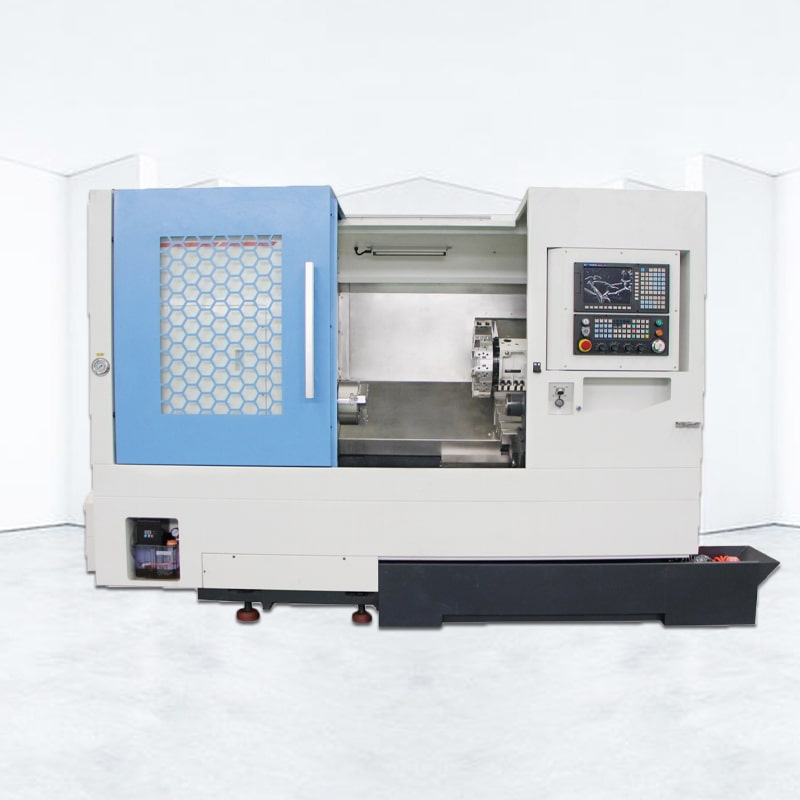

Tck-52D turn-mill compound machine tool is a CNC machine tool integrating turning and milling.
1. Improve processing efficiency: Tck-52D turning and milling compound machine tool can complete turning and milling operations on the same equipment, avoiding the transfer of workpieces between different equipment, saving production time and improving processing efficiency.
2. Improve machining accuracy: The machine tool adopts numerical control technology for machining, which has high positioning accuracy and machining accuracy, which can guarantee the machining quality and accuracy requirements
3. Reduce floor space: Tck-52D turn-mill compound machine tool has a compact design and a relatively small floor space, which can save the space of the factory.
CNC Turning and milling compound power turret work
| Item | Unit | ALTCK52D |
| The maximum upper rotation diameter of the bed surface | mm | Φ520 |
| The maximum processing diameter on the tool post | mm | Φ280 |
| Maximum processing length | mm | 520/750 |
| Center distance between two tops | mm | 600/830 |
| Spindle motor power | mm | 4200 |
| Spindle speed | rpm | Φ66 |
| Tailstock maximum stroke | mm | 480 |
| Length*Width*Height (mm) | mm | 3000*1850*1710 |
| Weight (approx. weight) | kW | 3800/4100kg |
