ALH46
ALLES CNC
CNC lathe processing is mainly used to process various shaft and disc parts. It can turn various threads, arcs, cones and inner and outer surfaces of rotating bodies, and can meet the high-speed cutting speed requirements of ferrous and non-ferrous metals.
CNC turning machine which is suitable for internal axis and disk work piece.

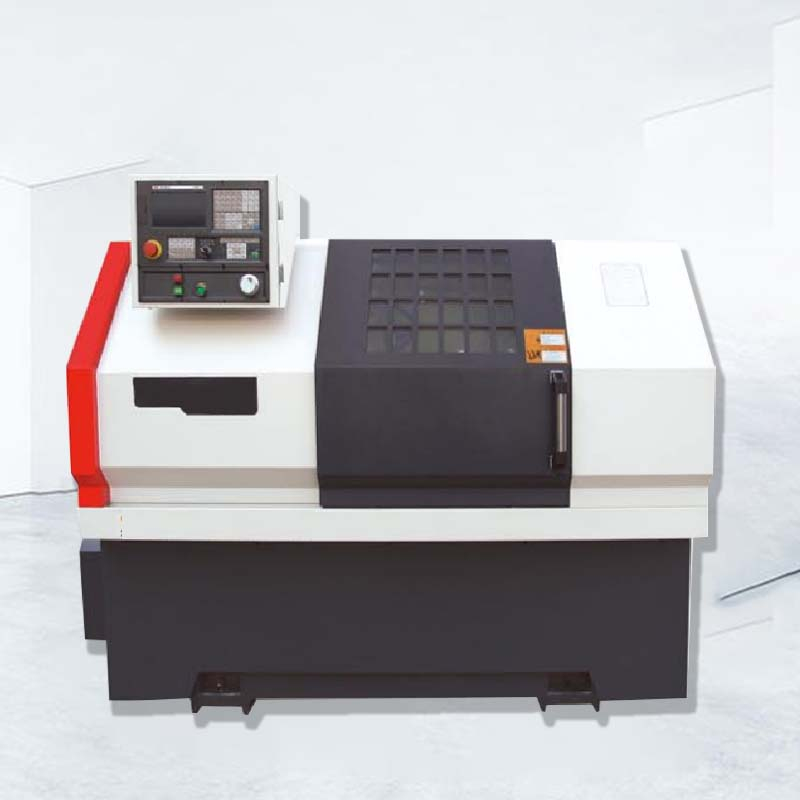

ALH46i Flatbed and linear guideway CNC lathe
1.High strength, widening the carriage, suitable for heavy cutting.
2.Four position electric turret.
3.Frequency conversion step less speed regulation.
Equipment Configuration And Parameters
| Project | Unit | ALH46 |
| Maximum turning diameter of bed | mm | φ460 |
| X-direction rail span | mm | 195 |
| Maximum turning diameter of slide | mm | φ140 |
| Maximum turning length | mm | 330 |
| Spindle hole diameter | mm | φ56 |
| Bar diameter | mm | φ44 |
| With hollow chuck rod through hole | mm | φ45 |
| Knife square size | mm | □25×25 |
| X/Z stroke | mm | 360/330 |
| Minimum setting unit | mm | 0.001 |
| Total power | KW | 9.5 |
| Net weight of machine tool | Kg | About 2200 |
| Dimensions (length×width×height) | mm | 2335×1815×1605 |
CNC lathe machine factory
The CNC lathe 3 axis adopts Machining design, with beautiful appearance, reasonable structure, low noise and high positioning accuracy. It is versatile and easy to operate. It can automatically complete the processing of internal and external circles, grooving, end faces, spherical surfaces and various metric and inch cylindrical and conical threads of various parts.
The rigidity of the spindle system is good. The spindle adopts variable frequency step less speed regulation. The spindle diameter is large, and the optional accessories are complete. It is suitable for complex parts of various shapes, long shafts, disc parts, etc.
CNC turning machine a very wide use which is suitable for internal and external turning, tapering, circular arc, thread, boring, reaming of axis and disk work piece. It also can achieve non-circular curve machining. You can choose the CNC system and optional accessories according to your requirement.
CNC lathe processing is mainly used to process various shaft and disc parts. It can turn various threads, arcs, cones and inner and outer surfaces of rotating bodies, and can meet the high-speed cutting speed requirements of ferrous and non-ferrous metals.
