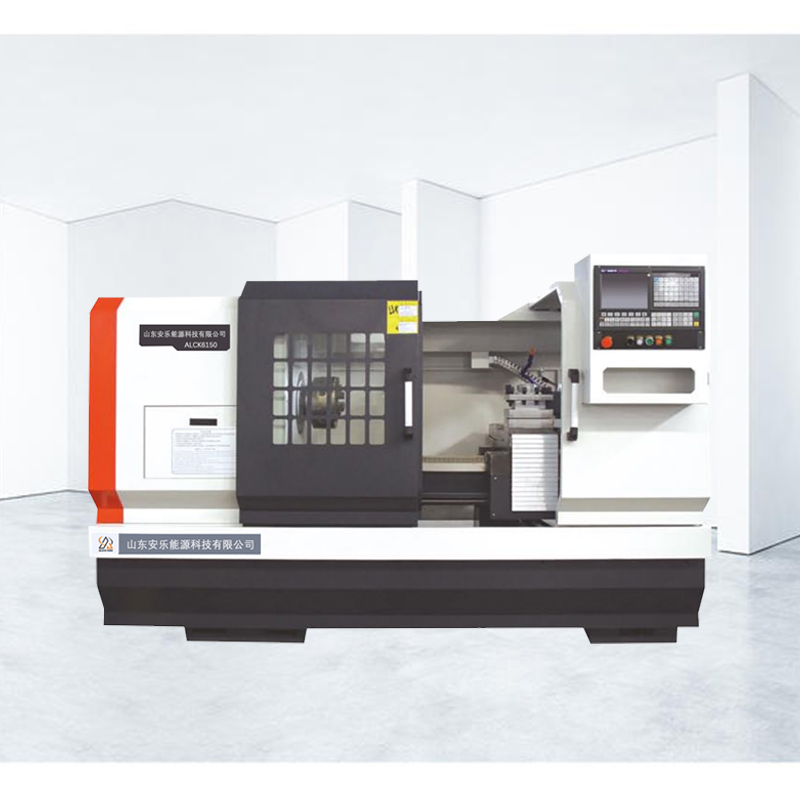

ALCK6160X1500
ALLES CNC
CNC turning center integrates the characteristics of universal lathe with good versatility, precision lathe with high processing accuracy and special lathe with high processing efficiency. It is the most widely used CNC lathe machine in China. The typical parts processed by cnc lathe machine are generally bushing parts and disc parts, which have the characteristics of high machining accuracy, high efficiency and high degree of automation;
Super low price ALCK6160X1000 GSK980TB3 system With third-party driver Rail width 400 320 three-jaw manual self-centering chuck Four-station electric tool holder 7.5kw ordinary motor
1. It has multi-functional composite processing capabilities such as turning, boring, vertical milling, end milling, drilling, tapping, etc. It can quickly complete the processing of complex workpieces with high quality. Its flexibility is especially suitable for the processing of complex, multi-variety and small-batch parts. , the machine tool is powerful, and can provide production-type turning and milling processing capabilities.
2. The combination of functions such as B axis, milling axis, positive and sub-spindle, and steady rest will enable the machine tool to have a strong composite processing capability, and the production capacity of multiple ordinary equipment can be realized by only one clamping, which not only greatly saves time and manpower It also reduces labor costs and greatly improves equipment utilization.
3. High-precision drive system. CNC turning adopts precision ball screws and linear rolling guides, which have high transmission efficiency and good precision retention, so that the machine tool rest moves quickly and stably, and has high positioning accuracy.
4. To prevent deformation of parts, CNC turning will be equipped with a cooling device to minimize the generation of thermal displacement.
Equipment configuration and parameters
| Item | Unit | ALCK6160/1000 |
| Max swing over bed | mm | Φ600 |
| X-direction rail span | mm | 210 |
| Z-direction rail span | mm | 400 |
| Maximum swing over slide | mm | Φ395 |
| Center distance | mm | 1000 |
| Maximum turning length | mm | 850 |
| Spindle hole diameter | mm | Φ82 |
| Bar diameter | mm | φ80 |
| With hollow chuck pull rod through hole | mm | Φ65 |
| Spindle speed limit | rpm | 1600 |
| Diameter of tailstock sleeve | mm | φ75 |
| Knife square size | mm | □25×25(four stations) |
| X/Z direction fast moving speed | m/min | 6/8 |
| X stroke | mm | 320 |
| Minimum setting unit | mm | 0.001 |
| main motor power | KW | 7.5 |
| Total power | KW | 13 |
| Machine weight | Kg | 2670 |
Super low price ALCK6160X1000 GSK980TB3 system With third-party driver Rail width 400 320 three-jaw manual self-centering chuck Four-station electric tool holder 7.5kw ordinary motor
Horizontal CNC Lathe Application:
The flat bed CNC lathe is suitable for the turning of the outer circle, end face, thread, countersunk and inner hole of various metal shaft parts, as well as the milling of the plane and keyway. High-efficiency roughing and high-quality finishing. It is especially suitable for parts with complex shapes and high machining accuracy requirements.
CNC turning center integrates the characteristics of universal lathe with good versatility, precision lathe with high processing accuracy and special lathe with high processing efficiency. It is the most widely used CNC lathe machine in China. The typical parts processed by cnc lathe machine are generally bushing parts and disc parts, which have the characteristics of high machining accuracy, high efficiency and high degree of automation;
Super low price ALCK6160X1000 GSK980TB3 system With third-party driver Rail width 400 320 three-jaw manual self-centering chuck Four-station electric tool holder 7.5kw ordinary motor
1. It has multi-functional composite processing capabilities such as turning, boring, vertical milling, end milling, drilling, tapping, etc. It can quickly complete the processing of complex workpieces with high quality. Its flexibility is especially suitable for the processing of complex, multi-variety and small-batch parts. , the machine tool is powerful, and can provide production-type turning and milling processing capabilities.
2. The combination of functions such as B axis, milling axis, positive and sub-spindle, and steady rest will enable the machine tool to have a strong composite processing capability, and the production capacity of multiple ordinary equipment can be realized by only one clamping, which not only greatly saves time and manpower It also reduces labor costs and greatly improves equipment utilization.
3. High-precision drive system. CNC turning adopts precision ball screws and linear rolling guides, which have high transmission efficiency and good precision retention, so that the machine tool rest moves quickly and stably, and has high positioning accuracy.
4. To prevent deformation of parts, CNC turning will be equipped with a cooling device to minimize the generation of thermal displacement.
Equipment configuration and parameters
| Item | Unit | ALCK6160/1000 |
| Max swing over bed | mm | Φ600 |
| X-direction rail span | mm | 210 |
| Z-direction rail span | mm | 400 |
| Maximum swing over slide | mm | Φ395 |
| Center distance | mm | 1000 |
| Maximum turning length | mm | 850 |
| Spindle hole diameter | mm | Φ82 |
| Bar diameter | mm | φ80 |
| With hollow chuck pull rod through hole | mm | Φ65 |
| Spindle speed limit | rpm | 1600 |
| Diameter of tailstock sleeve | mm | φ75 |
| Knife square size | mm | □25×25(four stations) |
| X/Z direction fast moving speed | m/min | 6/8 |
| X stroke | mm | 320 |
| Minimum setting unit | mm | 0.001 |
| main motor power | KW | 7.5 |
| Total power | KW | 13 |
| Machine weight | Kg | 2670 |
Super low price ALCK6160X1000 GSK980TB3 system With third-party driver Rail width 400 320 three-jaw manual self-centering chuck Four-station electric tool holder 7.5kw ordinary motor
Horizontal CNC Lathe Application:
The flat bed CNC lathe is suitable for the turning of the outer circle, end face, thread, countersunk and inner hole of various metal shaft parts, as well as the milling of the plane and keyway. High-efficiency roughing and high-quality finishing. It is especially suitable for parts with complex shapes and high machining accuracy requirements.
