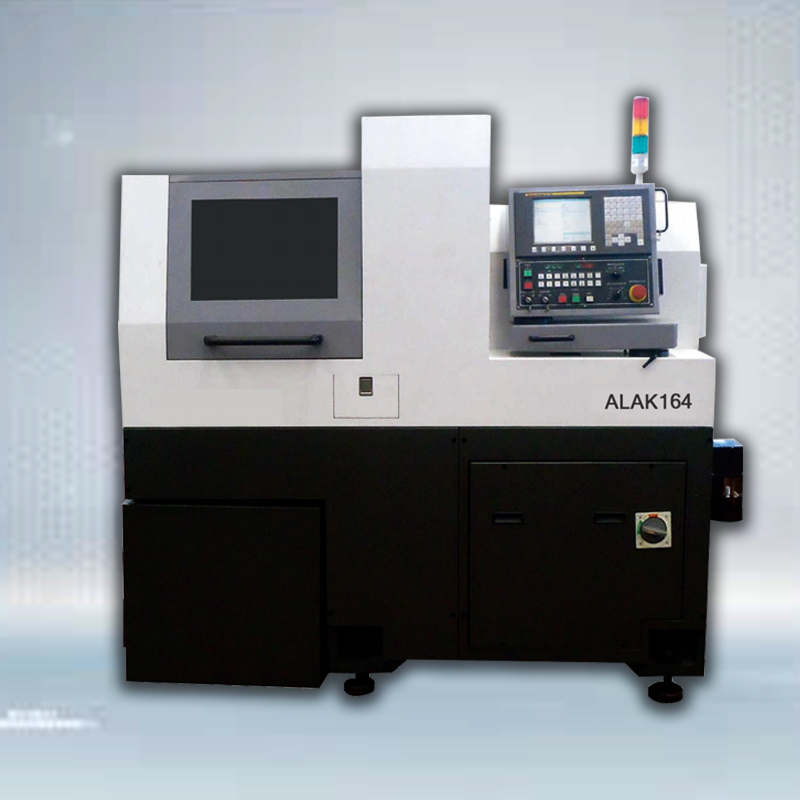

ALAK164
ALLES CNC
Cnc Swiss Type Lathe is a kind of precision machining equipment, which is mainly used for batch machining of precision hardware, special-shaped non-standard parts of shafts, etc. It has many advantages compared with conventional CNC machining technology. Cnc Swiss Type Lathe is mainly concentrated in the field of high-precision small metal parts. These include: medical equipment precision parts, communication precision parts, optical precision parts, automotive precision parts.
| ltems | ALAK164 | ||
| mechanic | System | FANUC Oi | SYNTEC |
| Max.RPM | Main10,000min-1/Sub8,000min-1 | Main6,000min-1/8,000min-1 Sub6,000min-1/8,000min-1 | |
| Max Tuning Diameter | ф16mm | ||
| Main Spindle Stroke | 150mm | ||
| Rapid traverse speed | 24m/min | ||
| Tools | O.D Tools | 6X[口12x12] | |
| I.N Tools | 3X[ф25-ER16] | ||
| Cross Driven Tools(integration) | 3X[ER16] | ||
| Motors | Main | 3.7/5.5KW | 3.7KW |
| Sub | 0.55/1.1KW | 0.4KW | |
| Cross | 0.5KW | 0.75KW | |
| Drive | 0.75KW | ||
| Coolant | 0.25KW | ||
Others | Central Height | 1,050mm | |
| Weight | 3,000Kg | ||
| Thesize(L*W*H) | 1985*1321*1692mm | ||
The advantages of Swiss CNC Lathe are mainly reflected in the following aspects:
1. Shorten the product manufacturing process chain and improve production efficiency. Swiss CNC Lathe processing can complete all or most of the processing operations in one clamping, thus greatly shortening the product manufacturing process chain. In this way, on the one hand, the production auxiliary time caused by the change of the loading card is reduced, and at the same time, the manufacturing cycle and waiting time of the tooling and fixture are also reduced, which can significantly improve the production efficiency.
2. Reduce the number of clamping and improve the machining accuracy. The reduction in the number of card loadings avoids the accumulation of errors due to positioning fiducial conversions. At the same time, most of the swiss type cnc automatic lathe processing equipment has the function of online detection, which can realize the in-situ detection and precision control of key data in the manufacturing process, thereby improving the processing precision of products.
3. Reduce the floor space and reduce the production cost. Although the single price of swiss type cnc automatic lathe processing equipment is relatively high, due to the shortening of the manufacturing process chain and the reduction of equipment required for the product, as well as the reduction in the number of fixtures, workshop floor space and equipment maintenance costs, it can effectively reduce the overall fixed assets. The cost of investment, production operation and management.
Cnc Swiss Type Lathe is widely used in automobile manufacturing, mechanical equipment, electrical equipment, aerospace, mold manufacturing and small parts processing, 5G and other industries.
