| Quantity: | |
|---|---|

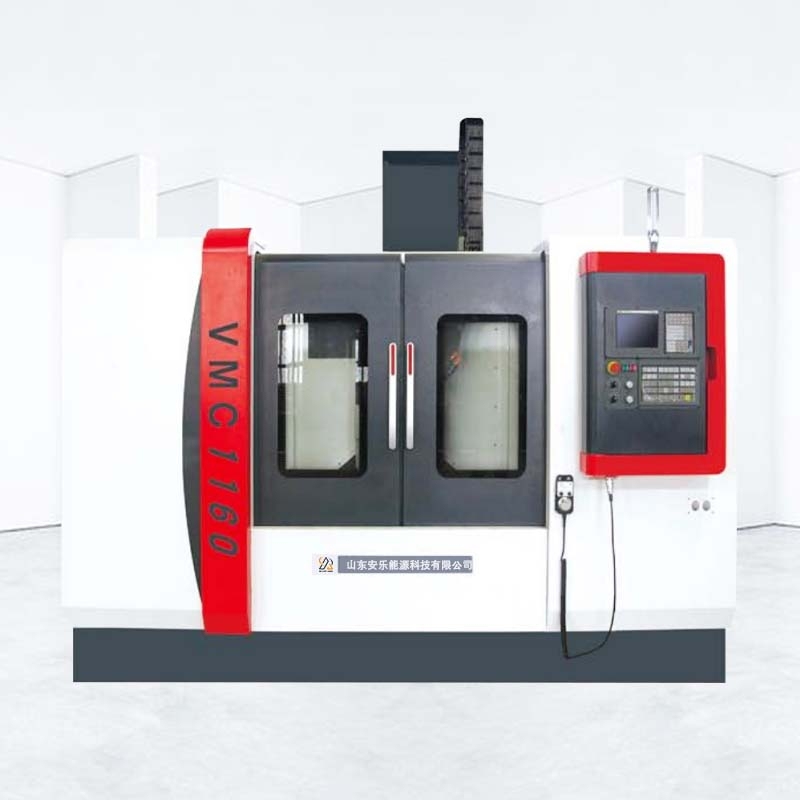

ALVMC1160
ALLES CNC
ALLES CNC lathe ALCK6180X1500
Maximum machining workpiece length 1500mm
Rail width 600
The cnc vertical machining center refers to the machining center with the spindle axis and the worktable vertically arranged, mainly suitable for the processing of complex parts such as plates, discs, molds and small shells. The vertical machining center can complete the processes of milling, boring, drilling, tapping and thread cutting. The vertical machining center is at least three-axis and two-linkage, and generally can realize three-axis and three-linkage. Some can carry out five-axis, six-axis control.
Technical Parameters
| Sub-item | Unit | ALVMC1160 |
| Worktable size | mm | 1200x600 |
| T-slot | mm | 18x5x100 |
| Max. load | kg | 800 |
| X axis travel | mm | 1100 |
| Y axis travel | mm | 600 |
| Z axis travel | mm | 600 |
| Spindle nose to worktable | mm | 120-720 |
| Spindle center to coumn face | mm | 670 |
| Spindle speed | rpm | 8000 |
| Spindle drive | Belt drive | |
| Spindle head casing diameter | mm | φ150mm |
| ATC type | Arm type | |
| Tool capacity | pcs | 24 |
| Max. tool dia | mm | Φ80（Φ130） |
| Max. tool weight | kg | 8 |
| Max. tool length | mm | 300 |
| Battery capacity | kVA | 25 |
| Air source pressure demand | kg/cm | 6 |
| Cutting water tank capacity | L | 200 |
| positioning accuracy | mm | 0.01 |
| Re-positioning accuracy | mm | 0.008 |
| Floor area and height | mm | 3000*2500*2500 |
| Machine weight | kg | 6500 |
ALLES CNC lathe ALCK6180X1500
Maximum machining workpiece length 1500mm
Rail width 600
1. Environmental protection and no pollution. Because there will be no oil pollution and mist spray, the surrounding environment will not be polluted'
2. The oil supply is accurate. The oil can be delivered to the lubrication points such as the spindle and the lead screw according to different needs by adding a regulating valve;
3. There is no problem of difficult atomization of high-viscosity lubricating oil; it is suitable for any oil;
4. Automatic detection and monitoring. It can detect whether the lubricating oil is normal. If the lubrication is poor, it can alarm and stop to avoid the abnormal operation of the equipment.
5. It is especially suitable for the rolling bearing of the main shaft, which has a certain air cooling effect, which can reduce the operating
In the field of machinery manufacturing, some parts have complex shapes, high machining accuracy requirements, and require many processes and tools (such as impellers, wind guide wheels, propellers, various surface forming molds and other workpiece products), which requires vertical The machining center processes such parts with good interchangeability, high precision and stable quality.
ALLES CNC lathe ALCK6180X1500
Maximum machining workpiece length 1500mm
Rail width 600
The cnc vertical machining center refers to the machining center with the spindle axis and the worktable vertically arranged, mainly suitable for the processing of complex parts such as plates, discs, molds and small shells. The vertical machining center can complete the processes of milling, boring, drilling, tapping and thread cutting. The vertical machining center is at least three-axis and two-linkage, and generally can realize three-axis and three-linkage. Some can carry out five-axis, six-axis control.
Technical Parameters
| Sub-item | Unit | ALVMC1160 |
| Worktable size | mm | 1200x600 |
| T-slot | mm | 18x5x100 |
| Max. load | kg | 800 |
| X axis travel | mm | 1100 |
| Y axis travel | mm | 600 |
| Z axis travel | mm | 600 |
| Spindle nose to worktable | mm | 120-720 |
| Spindle center to coumn face | mm | 670 |
| Spindle speed | rpm | 8000 |
| Spindle drive | Belt drive | |
| Spindle head casing diameter | mm | φ150mm |
| ATC type | Arm type | |
| Tool capacity | pcs | 24 |
| Max. tool dia | mm | Φ80（Φ130） |
| Max. tool weight | kg | 8 |
| Max. tool length | mm | 300 |
| Battery capacity | kVA | 25 |
| Air source pressure demand | kg/cm | 6 |
| Cutting water tank capacity | L | 200 |
| positioning accuracy | mm | 0.01 |
| Re-positioning accuracy | mm | 0.008 |
| Floor area and height | mm | 3000*2500*2500 |
| Machine weight | kg | 6500 |
ALLES CNC lathe ALCK6180X1500
Maximum machining workpiece length 1500mm
Rail width 600
1. Environmental protection and no pollution. Because there will be no oil pollution and mist spray, the surrounding environment will not be polluted'
2. The oil supply is accurate. The oil can be delivered to the lubrication points such as the spindle and the lead screw according to different needs by adding a regulating valve;
3. There is no problem of difficult atomization of high-viscosity lubricating oil; it is suitable for any oil;
4. Automatic detection and monitoring. It can detect whether the lubricating oil is normal. If the lubrication is poor, it can alarm and stop to avoid the abnormal operation of the equipment.
5. It is especially suitable for the rolling bearing of the main shaft, which has a certain air cooling effect, which can reduce the operating
In the field of machinery manufacturing, some parts have complex shapes, high machining accuracy requirements, and require many processes and tools (such as impellers, wind guide wheels, propellers, various surface forming molds and other workpiece products), which requires vertical The machining center processes such parts with good interchangeability, high precision and stable quality.
