ALVMC300
ALLES CNC
1. The small CNC milling machine has strong anti-seismic ability and good quality cast iron.
2. ALLES CNC wide base Y-shaped column structure.
3. High-precision linear guide rails from Taiwan.
4. The pre-stretching structure of the ball screw reduces thermal deformation and improves precision and rigidity.
5. Adopt Japanese NSK special screw angular contact ball bearing group.
The CNC Vertical Machine Center equipment first performs the process of casting, aging, tempering, and secondary tempering to ensure the quality of the equipment.
Technical Parameters
| Model | ALVMC300 |
| X axis | 300mm |
| Y axis | 200mm |
| Z axis | 300mm |
| Distance from spindle nose to table | 50~350mm |
| Worktable size | 500*200mm |
| Max. loading capacity | 200kg |
| Spindle motor | 1.5kw |
| Spindle speed | 6000rpm |
| Spindle taper | BT30 |
| Cutting speed | 1-4000 mm / min |
| Fast speed | X / Y / Z: 20 m / min |
| Positioning accuracy | ±0.01/300 mm |
| Optical machine area | mm1500×950×1500 |
| The whole machine covers an area | mm1600×1500×2000 |
1----Finite element analysis
The structural parts of the CNC milling machine are designed with advanced finite element analysis, and the structural stress/strain conditions are analyzed in detail to ensure excellent machine rigidity and life stability.
2----X, Y, Z axis pre-tighten the ball screw to ensure the accuracy and eliminate the positioning error.
3----Spindle table top, screw rod support surface and contact surface of stopper are all manually scraped to improve machining accuracy and smooth feeding.
4----The vertical machine center structure is made of high-quality Meehanite cast iron, which releases stress and ensures high rigidity and precision.
5----cnc machining center Super-sized columns and beds ensure super-high rigidity of the machine frame.

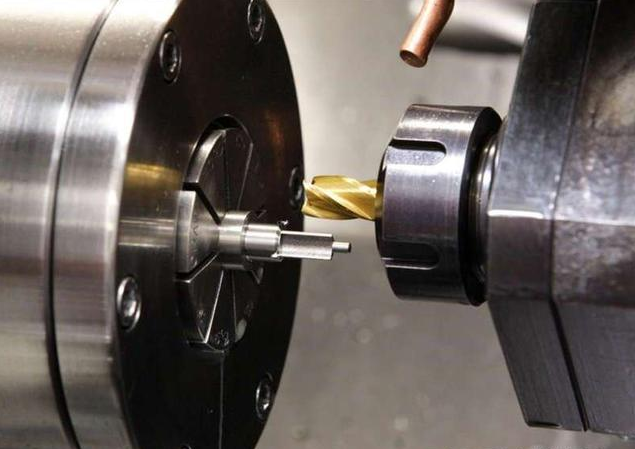

CNC machine tool metal milling is mainly suitable for processing complex parts such as plates, discs, molds, and small shells. Metal CNC milling machines can perform operations such as milling, boring, drilling, tapping and thread cutting.
