ALVMC1375
ALLES CNC

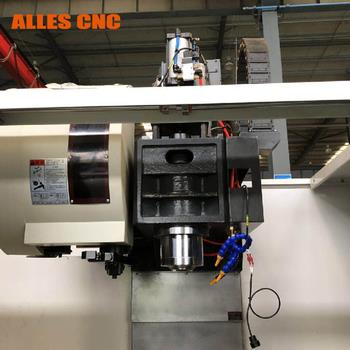

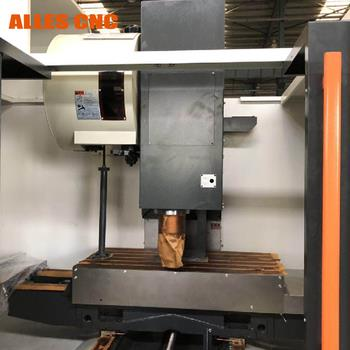

Vertical Machining Center Inspection
1.CNC machine center High-rigidity/high-stability main structure。
2.CNC milling machine Use 3D-CAD and finite element analysis to develop high-rigidity machine tool structure。
3.Vertical machine center Resin bonded sand molding,twice aging,and special tank-type structure and optimized rib-reinforced lay-out,make the machine tool of good rigidity and hysteresis loss。
Technical Parameters
| Sub-item | Unit | ALVMC1375 |
| Worktable size | mm | 1400x750 |
| T-slot | mm | 18x5x100 |
| Max. load | kg | 1000 |
| X axis travel | mm | 1300 |
| Y axis travel | mm | 750 |
| Z axis travel | mm | 700 |
| Spindle speed | rpm | 8000 |
| Spindle head casing diameter | mm | φ150mm |
| Tool capacity | pcs | 24 |
| Max. tool dia | mm | Φ80（Φ130） |
| Max. tool weight | kg | 8 |
| Max. tool length | mm | 300 |
| Tool change time (T-T) | sec. | 1.8 |
| Rivet | type | P40-1( 45°) |
| Spindle motor (continuous / 15 minutes) | kw | 11/15 |
| Servo motor (X/Y/Z) | kw | 3.0/3.0/3.0 |
| Automatic lubrication device | w | 20 |
| Cutting fluid pump | w | 840 |
| Air source pressure demand | kg/cm | 6 |
| Cutting water tank capacity | L | 200 |
| positioning accuracy | mm | 0.01 |
| Re-positioning accuracy | mm | 0.008 |
| Floor area and height | mm | 3050*2250*2400 |
| Machine weight | kg | 7500 |
VMC processing technology drilling
1.CNC machining centre has high speed, high precision and good rigidity
2.CNC vertical machining center X/Y/Z axis adopts high-precision, reinforced, large-pitch ball screw to ensure high feed rate
3.CNC Milling machine metal servo motor directly powers the ball screw, ensuring excellent positioning accuracy
4. Vertical Machining Center X/Y/Z axis adopts linear guide extension structure to ensure high speed, low friction and long life
5. Vertical milling machine CNC Y, Z axis adopts Taiwan high rigidity roller linear guide
6. The forced lubrication system of small CNC milling machine reduces motion resistance, avoids low-speed crawling, and ensures high precision and long life
7. Metal CNC milling machine fully enclosed structure design, safe operation
CNC vertical machining center, used for milling, drilling and drilling on metal, is a bridge-type structure, with a fixed table, the beam moves back and forth on the wall column, gantry vertical CNC machining center, can be used for milling, boring, drilling and high-speed, High quality part tapping. It is suitable for parts processing in machinery manufacturing industries such as automobiles, printing machinery, textile machinery, and rolling stock.
Vertical Machining Center Inspection
1.CNC machine center High-rigidity/high-stability main structure。
2.CNC milling machine Use 3D-CAD and finite element analysis to develop high-rigidity machine tool structure。
3.Vertical machine center Resin bonded sand molding,twice aging,and special tank-type structure and optimized rib-reinforced lay-out,make the machine tool of good rigidity and hysteresis loss。
Technical Parameters
| Sub-item | Unit | ALVMC1375 |
| Worktable size | mm | 1400x750 |
| T-slot | mm | 18x5x100 |
| Max. load | kg | 1000 |
| X axis travel | mm | 1300 |
| Y axis travel | mm | 750 |
| Z axis travel | mm | 700 |
| Spindle speed | rpm | 8000 |
| Spindle head casing diameter | mm | φ150mm |
| Tool capacity | pcs | 24 |
| Max. tool dia | mm | Φ80（Φ130） |
| Max. tool weight | kg | 8 |
| Max. tool length | mm | 300 |
| Tool change time (T-T) | sec. | 1.8 |
| Rivet | type | P40-1( 45°) |
| Spindle motor (continuous / 15 minutes) | kw | 11/15 |
| Servo motor (X/Y/Z) | kw | 3.0/3.0/3.0 |
| Automatic lubrication device | w | 20 |
| Cutting fluid pump | w | 840 |
| Air source pressure demand | kg/cm | 6 |
| Cutting water tank capacity | L | 200 |
| positioning accuracy | mm | 0.01 |
| Re-positioning accuracy | mm | 0.008 |
| Floor area and height | mm | 3050*2250*2400 |
| Machine weight | kg | 7500 |
VMC processing technology drilling
1.CNC machining centre has high speed, high precision and good rigidity
2.CNC vertical machining center X/Y/Z axis adopts high-precision, reinforced, large-pitch ball screw to ensure high feed rate
3.CNC Milling machine metal servo motor directly powers the ball screw, ensuring excellent positioning accuracy
4. Vertical Machining Center X/Y/Z axis adopts linear guide extension structure to ensure high speed, low friction and long life
5. Vertical milling machine CNC Y, Z axis adopts Taiwan high rigidity roller linear guide
6. The forced lubrication system of small CNC milling machine reduces motion resistance, avoids low-speed crawling, and ensures high precision and long life
7. Metal CNC milling machine fully enclosed structure design, safe operation
CNC vertical machining center, used for milling, drilling and drilling on metal, is a bridge-type structure, with a fixed table, the beam moves back and forth on the wall column, gantry vertical CNC machining center, can be used for milling, boring, drilling and high-speed, High quality part tapping. It is suitable for parts processing in machinery manufacturing industries such as automobiles, printing machinery, textile machinery, and rolling stock.
