ALVMC1160
ALLES CNC

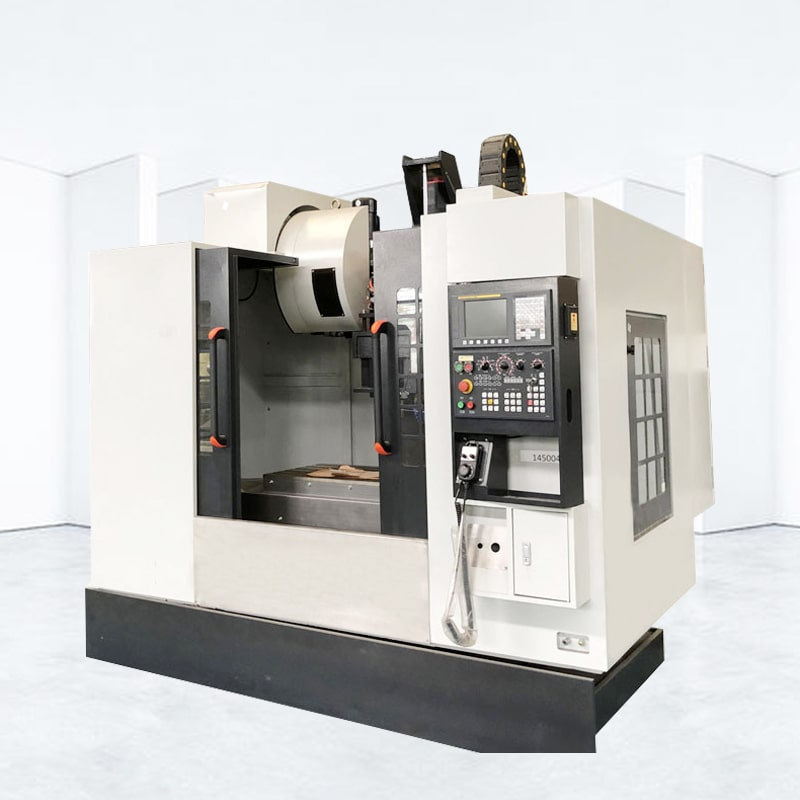

ALLES CNC Vertical Machining Center
1.CNC machine center sturdy (standard) or multifunctional (optional) spindle
2.CNC milling machine Efficient 30-tool automatic tool changer (50-tool option).
3.Hybrid MX Roller Rail Systems increase rigidity, precision and reliability.
4.Preloaded ball screw system, supported at both ends.
5.New space saving machine design with optional chip management solution.
Technical Parameters
| Item | Sub-item | Unit | ALVMC1160 |
| Worktable | Worktable size | mm | 1200x600 |
| T-slot | mm | 18x5x100 | |
| T-slot | kg | 800 | |
| Travel | X axis travel | mm | 1100 |
| Y axis travel | mm | 600 | |
| Z axis travel | mm | 600 | |
| Tool capacity | pcs | 24 | |
| Max. tool dia | mm | Φ80 (Φ130) | |
| Cutting water tank capacity | L | 200 | |
| positioning accuracy | mm | 0.01 | |
| Re-positioning accuracy | mm | 0.008 | |
| Floor area and height | mm | 3000*2500*2500 | |
| Machine weight | kg | 6500 |
vertical machine center processing technology
Vertical CNC milling machine Heavy Duty Cutting Spindle and rigid machine structure table loads for higher machining efficiency milling with better finish and longer tool life - increasing productivity and profitability. Proven to increase productivity, delivering reliable and profitable performance.
1. Large working capacity of vertical machine center workbench
2.CNC machine center powerful 30HP servo spindle motor
3. Double helical chip conveyor
4.CNC milling machine has high flow and large capacity cooling system with built-in chip removal and chip removal screw conveyor
5. Manual Guide "i" Computer Aided Programming
6.Fanuc "i" series high torque double winding high/low spindle motor
Vertical CNC machining centers perform reliably and efficiently in manufacturing and production sectors of metal working across automotive, mechanical engineering, and medical technologies.
ALLES CNC Vertical Machining Center
1.CNC machine center sturdy (standard) or multifunctional (optional) spindle
2.CNC milling machine Efficient 30-tool automatic tool changer (50-tool option).
3.Hybrid MX Roller Rail Systems increase rigidity, precision and reliability.
4.Preloaded ball screw system, supported at both ends.
5.New space saving machine design with optional chip management solution.
Technical Parameters
| Item | Sub-item | Unit | ALVMC1160 |
| Worktable | Worktable size | mm | 1200x600 |
| T-slot | mm | 18x5x100 | |
| T-slot | kg | 800 | |
| Travel | X axis travel | mm | 1100 |
| Y axis travel | mm | 600 | |
| Z axis travel | mm | 600 | |
| Tool capacity | pcs | 24 | |
| Max. tool dia | mm | Φ80 (Φ130) | |
| Cutting water tank capacity | L | 200 | |
| positioning accuracy | mm | 0.01 | |
| Re-positioning accuracy | mm | 0.008 | |
| Floor area and height | mm | 3000*2500*2500 | |
| Machine weight | kg | 6500 |
vertical machine center processing technology
Vertical CNC milling machine Heavy Duty Cutting Spindle and rigid machine structure table loads for higher machining efficiency milling with better finish and longer tool life - increasing productivity and profitability. Proven to increase productivity, delivering reliable and profitable performance.
1. Large working capacity of vertical machine center workbench
2.CNC machine center powerful 30HP servo spindle motor
3. Double helical chip conveyor
4.CNC milling machine has high flow and large capacity cooling system with built-in chip removal and chip removal screw conveyor
5. Manual Guide "i" Computer Aided Programming
6.Fanuc "i" series high torque double winding high/low spindle motor
Vertical CNC machining centers perform reliably and efficiently in manufacturing and production sectors of metal working across automotive, mechanical engineering, and medical technologies.
