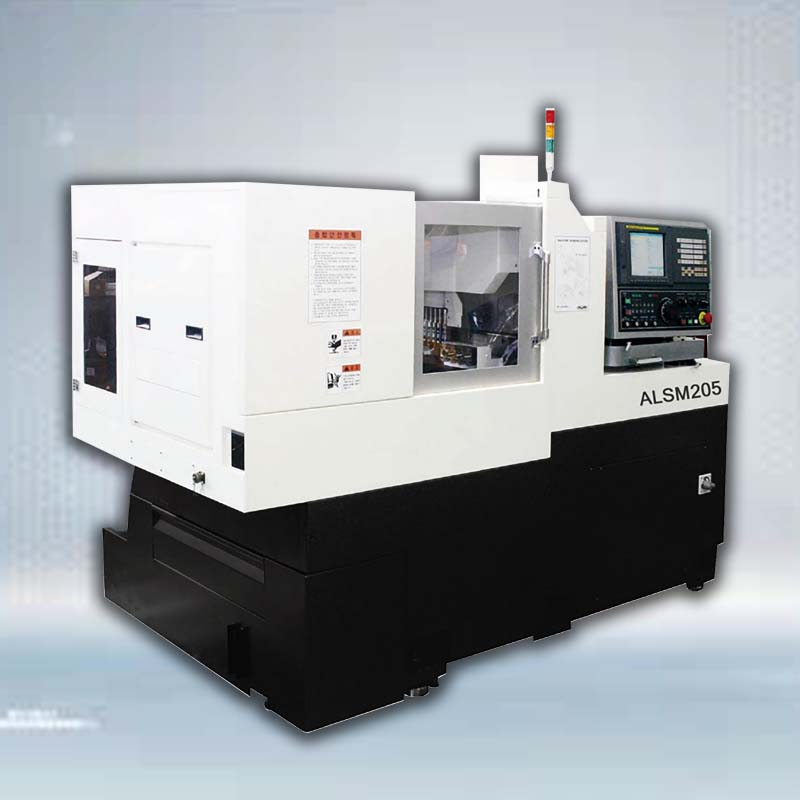

ALSM205
ALLES CNC
CNC Swiss complex parts can now be completed in one operation on the machine instead of the multiple operations required by traditional lathes.
The CNC Swiss machine shop also offers secondary operations such as milling, grooving, cross-tapping and cross-drilling without any additional machining once the part has fallen off the machine.
| ltems | ALSM205 | ||
| mechanic | System | FANUC Oi | SYNTEC |
| Max.RPM | Main10,000min-1/Sub8000min-1 | Main6,000min-1/8,000min-1 Sub6,000min-1/8,000min-1 | |
| Max Tuning Diameter | Ф20mm/Ф26mm | ||
| Main Spindle Stroke | 260mm | ||
| Tools | O.D Tools | 6X[口12x12] | |
| I.N Tools | 5X[ф25-ER16] | ||
| Cross Driven Tools(integration) | 4X[ER16] | ||
| Motors | Main | 2.2/3.7KW | 4.4KW |
| Cross | 0.55/1.1KW | 0.75KW | |
| Drive | 0.75KW | ||
| Coolant | 0.4KW | ||
Others | Central Height | 1,000mm | |
| Weight | 3600Kg | ||
| Thesize(L*W*H) | 2610x1530x1674mm | ||

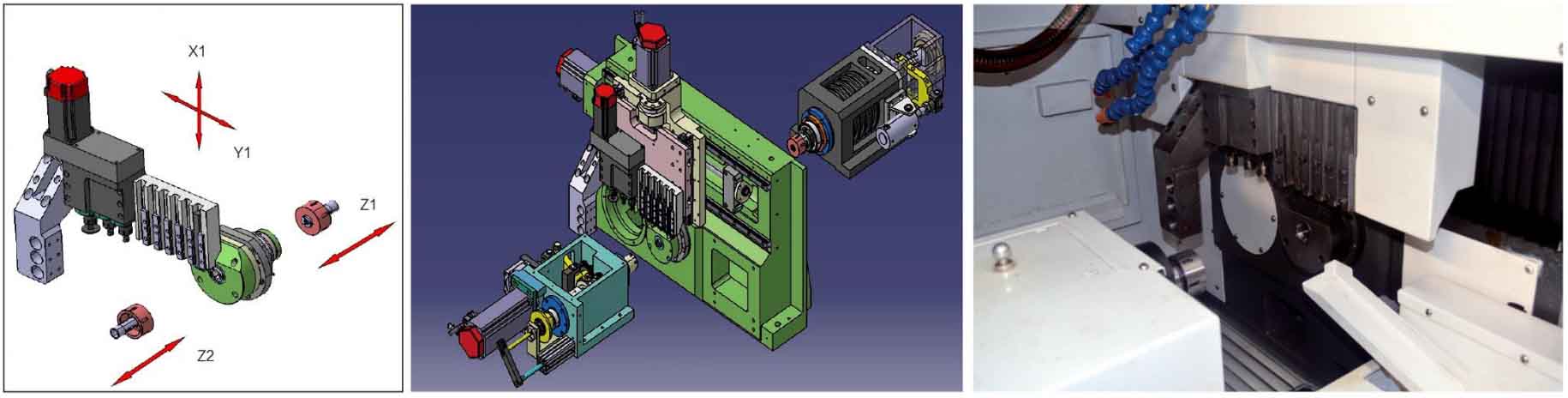

Swiss Cnc Automatic Lathe High Precision Mode increases stability by minimizing vibrations caused by high-speed motion of the tool block.
Swiss Cnc Automatic Lathe allows for smoother motion by reducing acceleration and deceleration of the shaft motor. Less vibration and less shaft wobble motion allows one tool to machine mirror surfaces while another tool is used to perform rougher operations, such as threading.
Swiss Type CNC Lathe is used in aviation, automobile and motorcycle, hydraulic, bearing, electronics, instrumentation, communication, medical equipment, motor, etc.
