ALCK61100X1500
ALLES CNC

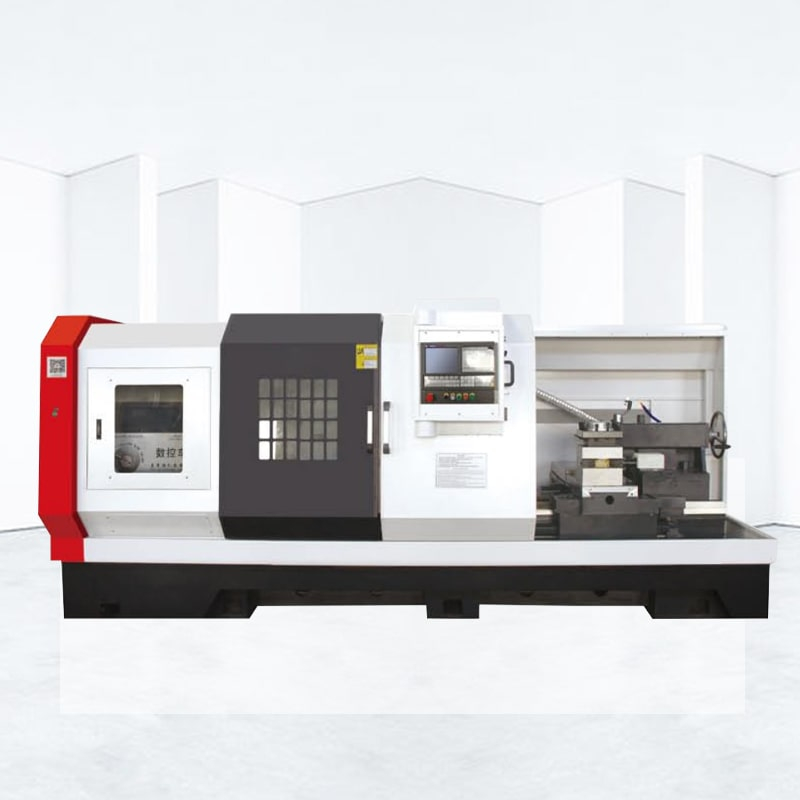

ALCK61100X1500 CNC Lathe Machine
Equipment configuration and parameters
| Model | Unit | ALCK61100E |
| Maximum turning diameter of bed | mm | φ1500 |
| X-direction rail span | mm | 330 |
| Z-direction rail span | mm | 600 |
| Maximum turning diameter of slide | mm | φ650 |
| Center distance | mm | 1500 |
| Maximum turning length | mm | 1500 |
| Spindle hole diameter | mm | φ105 |
| Bar diameter | mm | φ105 |
| With hollow chuck pull rod through hole | mm | φ88 |
| Diameter of tailstock sleeve | mm | φ100 |
| Tailstock sleeve stroke | mm | 250 |
| Tailstock configuration | Regular handle | |
| Electric tool post knife number | Set | 4 |
| Knife square size | mm | □40×40(4 tool set) |
| X/Z direction fast moving speed | m/min | 4/5 |
| X stroke | mm | 530 |
| Z stroke | mm | 1600 |
| Minimum setting unit | mm | 0.001 |
| main motor power | KW | 15 |
| Total power | KW | 20 |
| Machine weight | Kg | 4700 |
| Dimensions (l×w×h) | mm | 4100×2160×2200 |
1.CNC lathe low noise, high precision and good stability.
2. CNC lathe machine guide is refined by ultrasonic quenching, high hardness and good rigidity.
3. Mini CNC lathe electric four-position tool holder is positioned with precise gear positioning, and the positioning accuracy is high.
4. Horizontal CNC lathe machine tail frame has fast CAM clamping device, and the work efficiency is high.The tail seat sleeve has the device to prevent the drill bit rotation, avoiding the taper of the hole of the socket sleeve caused by the rotation of the drill caused by the wrong operation, and the tail part is protected effectively.
5 CNC turning center Small new horizontal gsk system control , the hybrid stepping motor driver or optional ac servo motor drive, can also according to user's request matching other systems.
6.Easy to operate, especially suitable for complex parts or high precision machining of high-volume parts.
CNC lathe ALCK61125X1500
Automatic CNC lathe machine guide rail by the super audio quenching and fine grinding, high precision, main shaft adopts frequency conversion step less speed regulation control, can automatically complete the parts of the inner and outer cylinder, end face, arbitrary conical surface, circular arc surface , male inch thread cutting process continuous processing, etc.
Flat bed CNC lathe is suitable to process all kinds of small and middle-sized shaft and plate work piece,and could also turn various threads ,circle arc ,circle cone ,inside and outside surface of revolved body .horizontal CNC lathe machine is widely used in sanitary ,value ,electrical appliance ,instrument ,automobile ,motor cycle ,bearing and so on.
