ALCK6150X1500
ALLES CNC

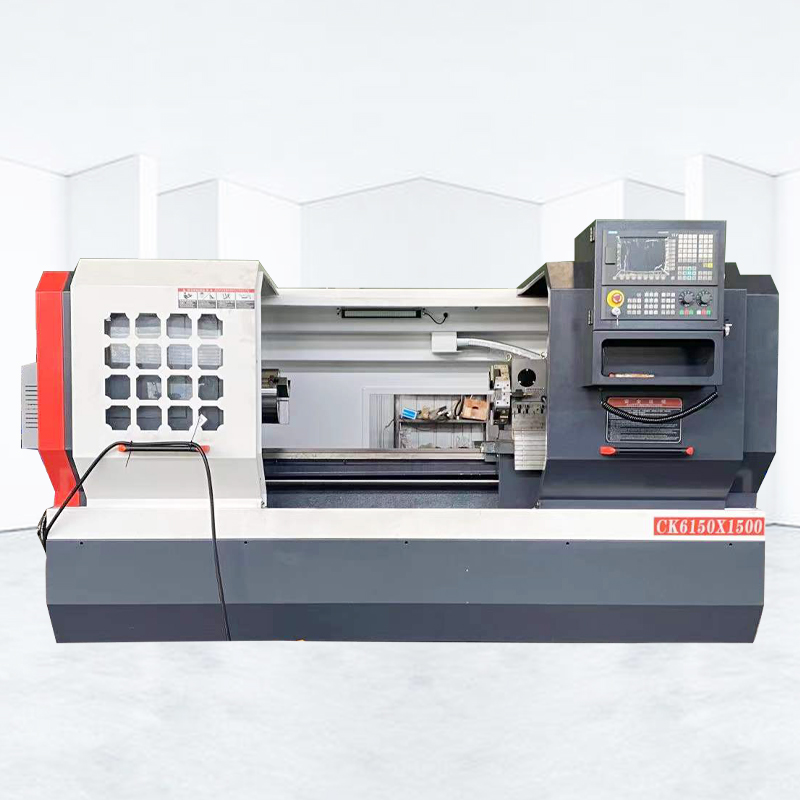

Heavy Duty Helical Gear ALCK6150x1500 CNC Lathe
1. CNC lathe high rigidity casting bed.
2. CNC lathe machine high precision spindle bearing.
3. Turning and milling center Bed guide industrial hardened.
Equipment Configuration And Parameters
| Item | Unit | ALCK6150/1500 |
| Max swing over bed | mm | φ500 |
| X-direction rail span | mm | 210 |
| Z-direction rail span | mm | 400 |
| Maximum swing over slide | mm | Φ250 |
| Center distance | mm | 1500 |
| Maximum turning length | mm | 1350 |
| Spindle hole diameter | mm | Φ82 |
| Bar diameter | mm | φ80 |
| With hollow chuck pull rod through hole | mm | Φ65 |
| Spindle speed limit | rpm | 1800 |
| Diameter of tailstock sleeve | mm | φ75 |
| Tailstock sleeve stroke | mm | 150 |
| Electric tool post knife number | Set | 4 |
| Knife square size | mm | □25×25(four stations) |
| X/Z direction fast moving speed | m/min | 6/8 |
| X stroke | mm | 280 |
| Minimum setting unit | mm | 0.001 |
| main motor power | KW | 7.5 |
| Total power | KW | 14 |
| Machine weight | Kg | 2850 |
| Dimensions (length × width × height) | mm | 3150×1650×1750 |
CNC Lathe Machine——CNC Lathe ALCK6150 Delivery Area

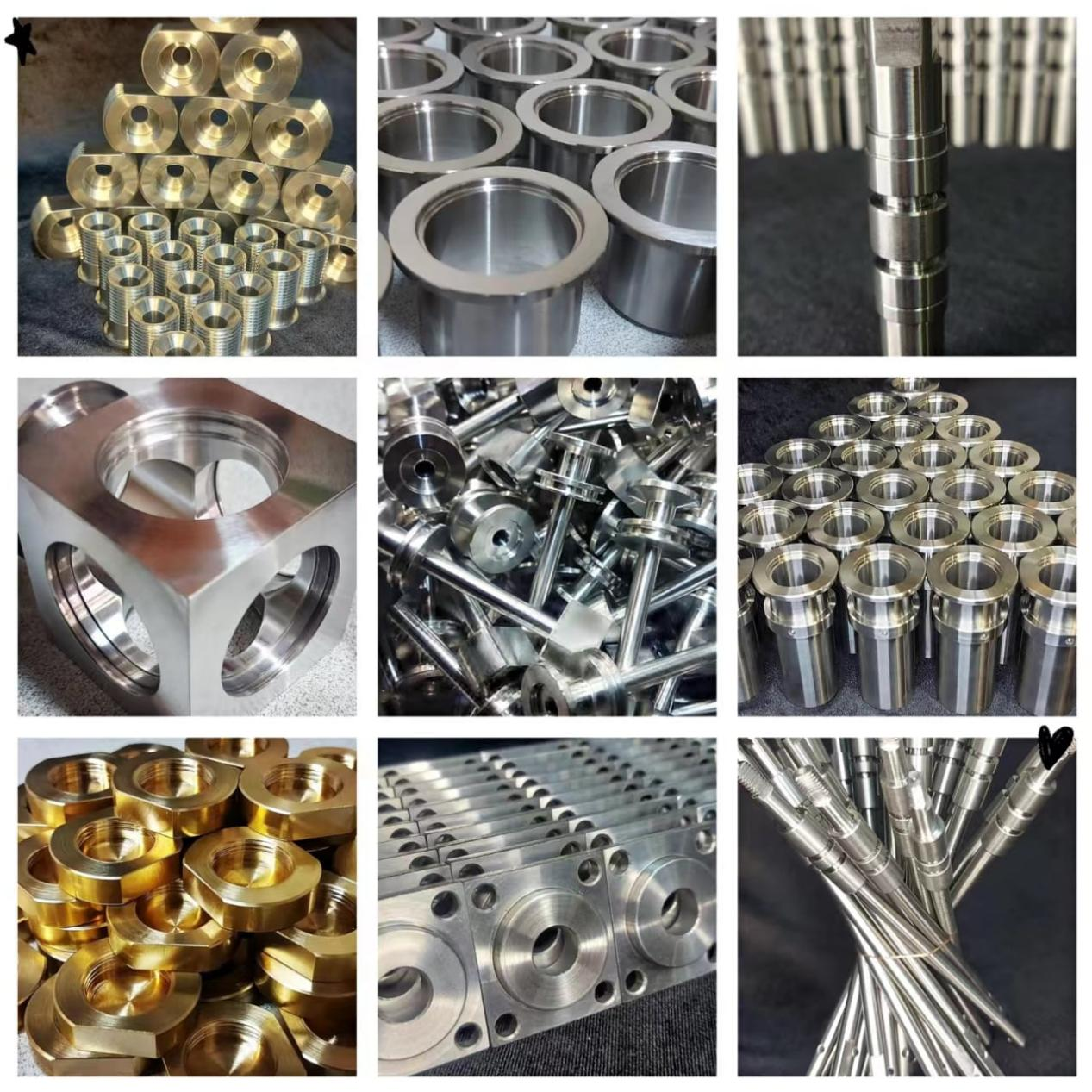

1.CNC automatic lathe has a very wide use which is suitable for internal and external turning,tapping,circular arc,thread,boring,reaming of axle and disk work piece.It also can achieve non-circular curve marching.You can choose the CNC system and optional accessories to your requirement.
2.Our CNC Lathe is equipped high precision, high speed spindle, ultrasonic frequency quenched guide ways, fast cam clamping device and servo motor drive which offer high quality, stability, rigidity and accuracy for a variety of metal processing applications.
Automatic CNC lathe machine can automatically process the inside and outside cylinder surface,cone surface,circular arc surface,end face such as processing and also can processing the single and multiple threads in metric,inch and other standards.
