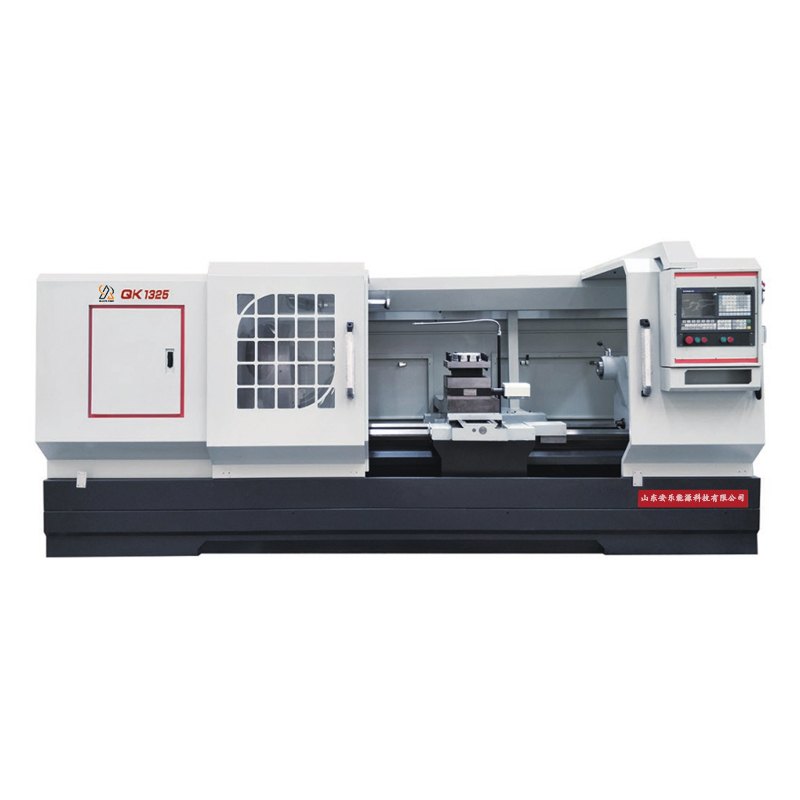

ALQK1325
ALLES CNC
CNC CNC pipe thread lathe adopts the double chuck clamping mode
The Main Technical Parameters
| Project | SPECIFICATION | UNIT | QK1325 |
| Processing range | Swing over bed | Manual Shift Manual Hydraulic Shift HYD | |
| Swing over cross slide | mm | 800 | |
| Distance between centers | mm | 480 | |
| Guideway width | mm | 1000/1500/3000 | |
| Max. load capacity | mm | 50-255 | |
| Spindle bore | mm | 600 | |
| tailstock | Spindle bore taper | 4 | |
| Spindle nose type | mm | 255 | |
| Spindle speed range | 4-speed hydraulic/VF.4 steps 4-speed hydraulic/HYD.4steps | ||
| Others | Chuck | rpm | 20-420 |
| Turret/tool post | mm | ф630 manual three-jaw/630 3-jaw manual |
Please note that the bed length can be customized according to the actual needs of customers
1.CNC lathe double chuck front and rear pipe thread lathe
2. ALLES CNC control;
3. There are two types of horizontal CNC lathe machine speed change: manual and stepless speed change.
4. CNC lathe 3 axis set self-lubricating system, easy maintenance.
1. ALLES CNC high-quality high-strength cast iron casting, the overall bed has good rigidity and high precision
2. The surface of the cnc lathe guide rail is quenched by super audio frequency, with high hardness and long service life
3. The carriage of CNC turning machine adopts the guide rail surface pasting process, which has good wear resistance and high precision
4.The spindle has a large aperture, high passability, and stable work piece clamping with dual chucks.
ALLES CNC CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch, module DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.
