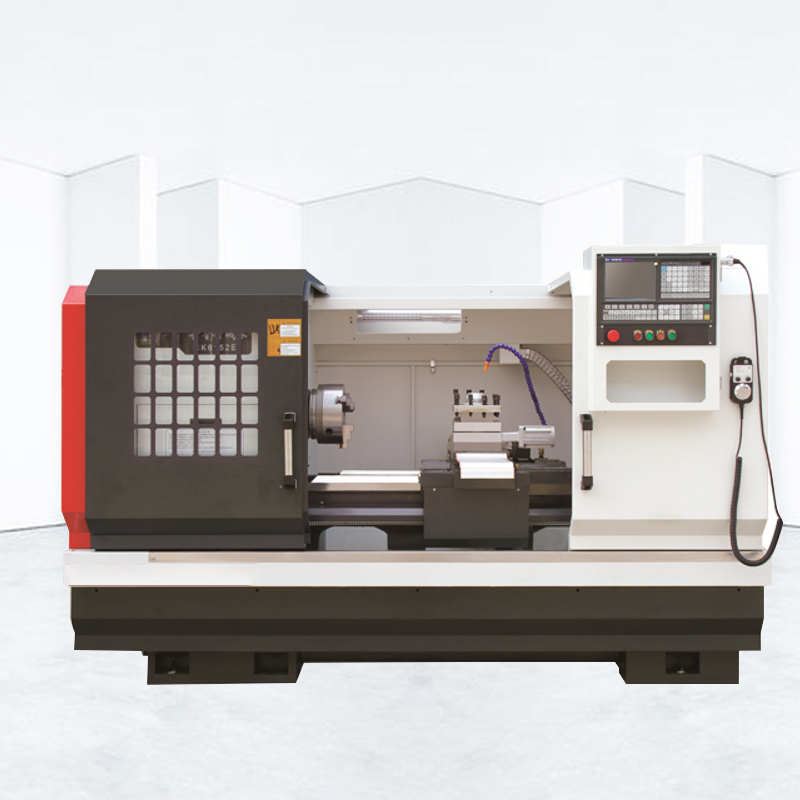

ALCK5085D
ALLES CNC

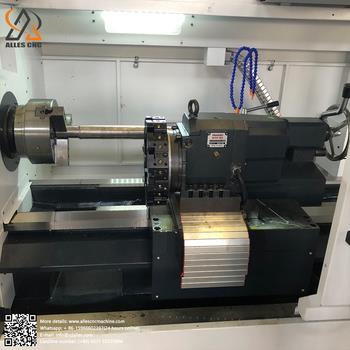

CNC Lathe Machine
CNC lathe machine can modify heavy components with high rotational speeds and tool automation. With a highly programmable CNC control that can store regularly run, high volume parts, throughput of the machine is increased while delivering consistent, accurate results every
The Main Technical Parameters
| Model | Unit | ALCK6185E/1000 |
| Maximum turning diameter of bed | mm | φ850 |
| X-direction rail span | mm | 330 |
| Z-direction rail span | mm | 600 |
| Maximum turning diameter of slide | mm | φ500 |
Center Head Distance | mm | 1000 |
| Maximum turning length | mm | 950 |
| Spindle hole diameter | mm | φ105 |
| Bar diameter | mm | φ105 |
| With hollow chuck pull rod through hole | mm | φ88 |
| Diameter of tailstock sleeve | mm | φ100 |
| Tailstock sleeve stroke | mm | 250 |
| Tools in electric tool post | set | 4 |
| Knife square size | mm | □32×32(Four stations) |
| X/Z direction moving speed | m/min | 4/5 |
| X direction stroke | mm | 450 |
Z direction stroke | mm | 1100 |
| Minimum Setting Unit | mm | 0.001 |
| Total Electric Power | KW | 16 |
| Machine Net Weight | Kg | 4100 |
| Machine Size（L×W×H） | mm | 3500×2000×2000 |

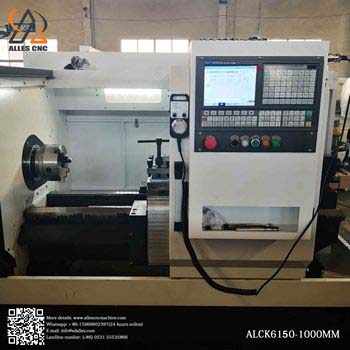

Super low price CNC lathe ALCK6150x2000 With Siemens CNC system
Automatic CNC lathe machine through the numerical control system,this machine could process different inner bore,ex-circle,circular conical surface and screw thread.
CNC lathe 3 axis especially suitable for the small and middle-sized shaft and plate work piece from rough processing in batch.It has advantages like higher automation,simpler programming and higher accuracy.
CNC turning center arranging tool holder structure, quick and time-saving tool change, high positioning accuracy and high production efficiency. It is suitable for mass processing and single-piece processing of various precision parts such as processing instruments, meters, electronic connectors, optics, automobile and motorcycle parts, and hardware.
