GantryType Milling Machine

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • ALGMC2116

  • ALLES CNC

Main Parameters

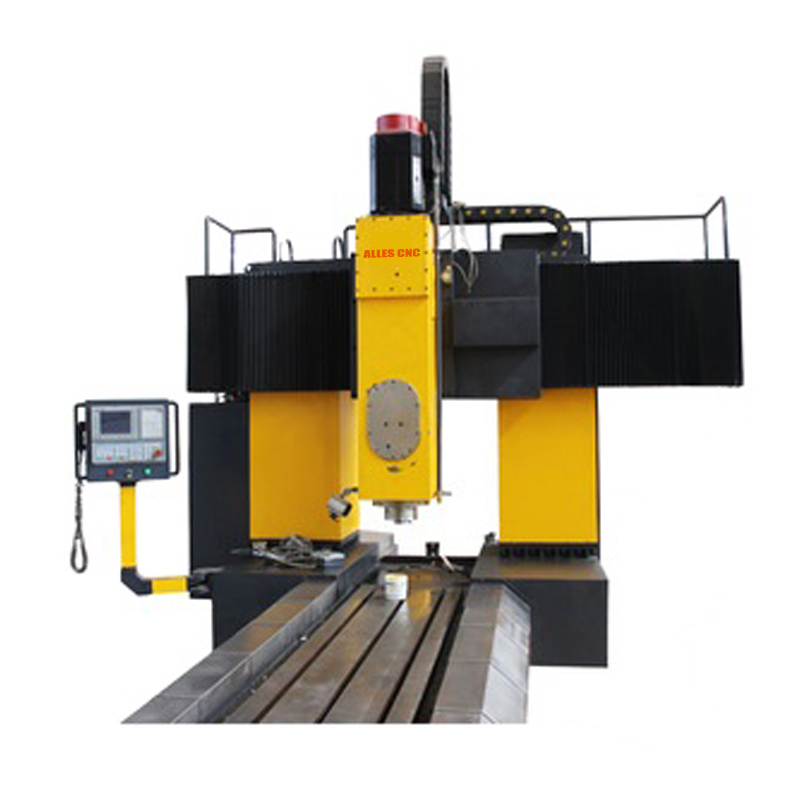

photobank (41)

Item

Name

ALGMC2116

Worktable

Worktable load (KG)

4000

Worktable size (mm)

1600x2000

X.Y.Z Axis

Travel (mm)

1600x2000x700(Optional)

Spindle

Spindle motor speed (r/min)

0-6000

Spindle model brand

BT50

Dimensions

LxWxH(m)(About)

5.5x2.6x3.7

Machine weight (About)(T)

15

The structure of Gantry Type Milling Machine


Gantry Type Milling Machine's portal frame consists of columns and top beams, with cross beams in the middle. The beam can move up and down along the guide rails of the two columns. There are 1 to 2 milling heads with vertical spindles on the beam, which can move laterally along the rail of the beam.

Factory Display

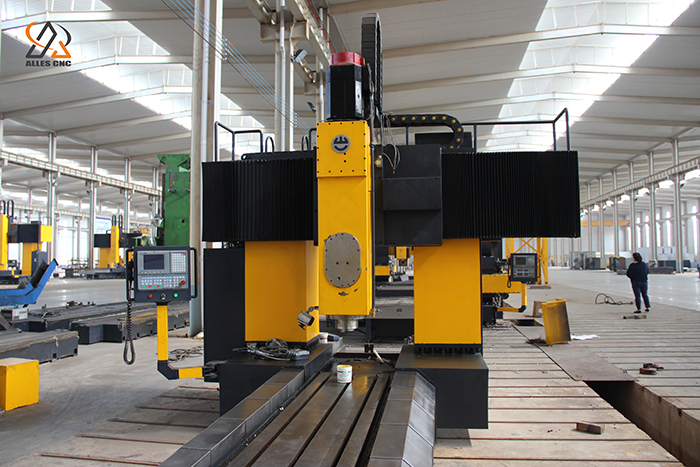

cnc milling and driling machine for tube sheet 2mx4m

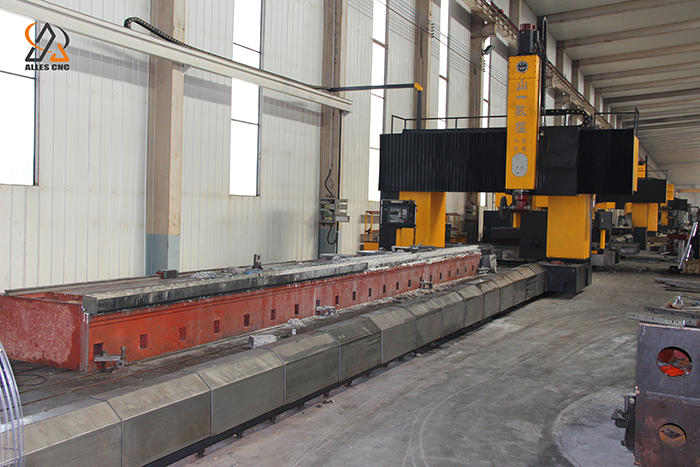

cnc milling and drilling machine 3mx8m

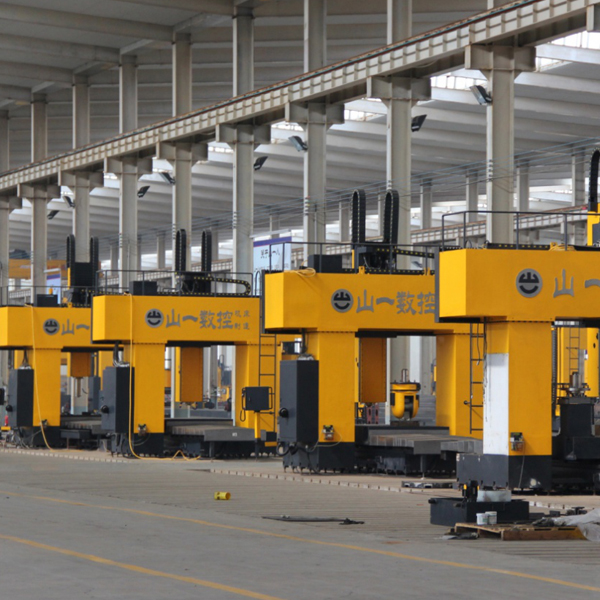

工厂4

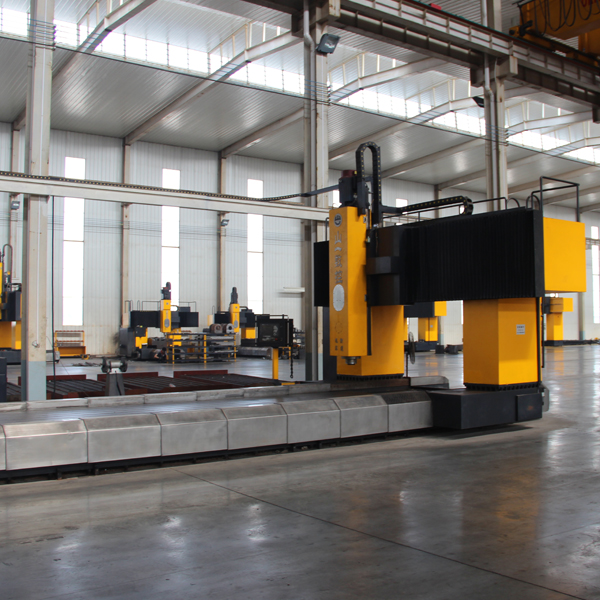

gantry milling

ALLES CNC has its own GantryType Milling Machine factory. The GantryType Milling Machine factory has more than 100 parts in the semi-finished area, and more than 30 finished products in the assembly area and finished product area.

The R&D team of ALLES cnc metal lathe factory is very large, with more than 100 engineers and a sales team of more than 20 people. At least 10 engineers will provide 24-hour online services.

Workpiece Display

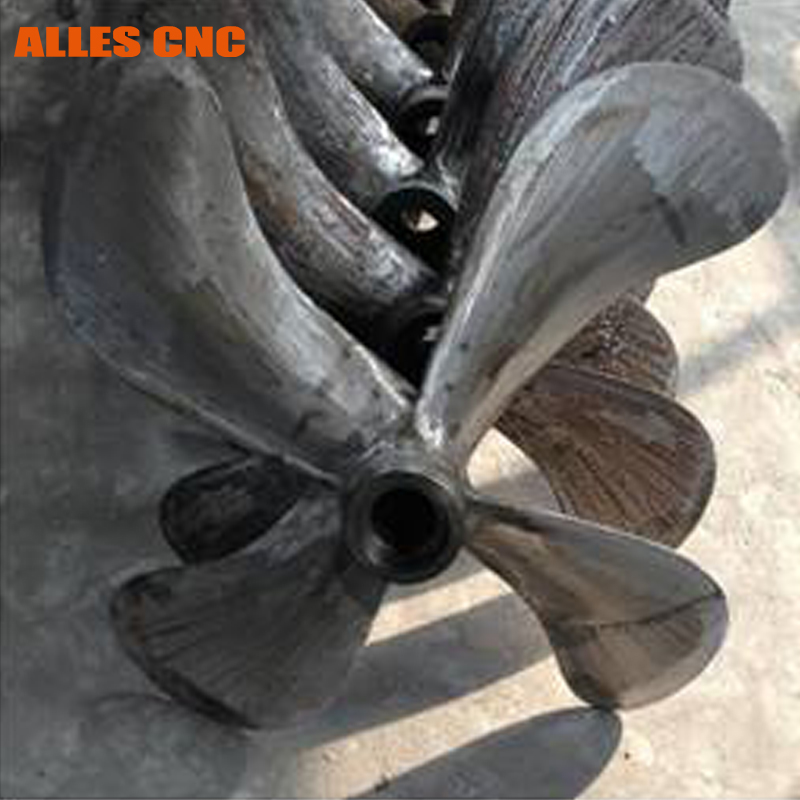

photobank (43)

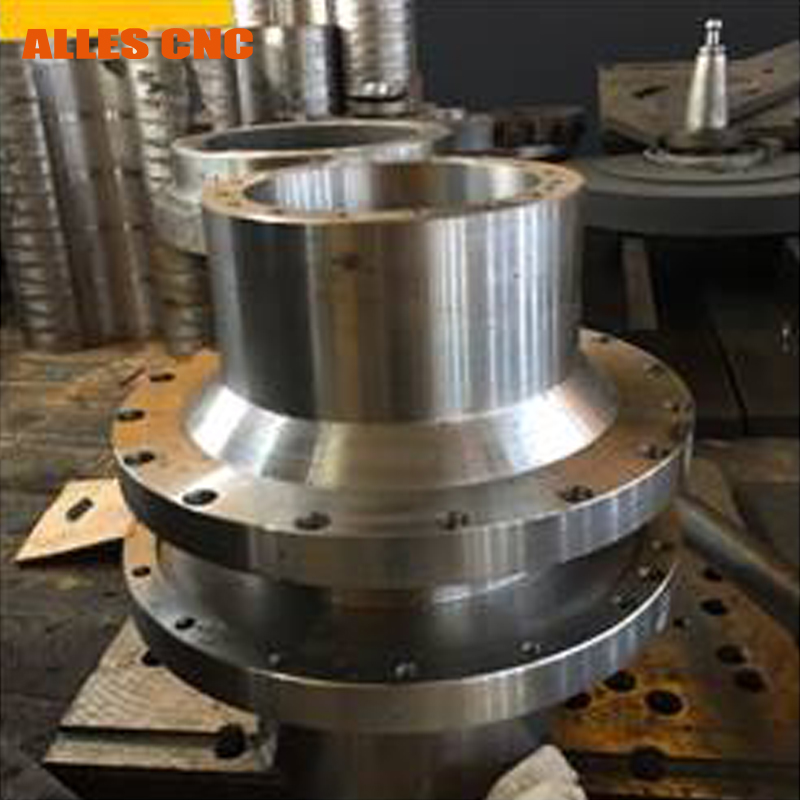

photobank (42)
photobank (44)
Workpiece Show-1
Operation Precautions

1. Gantry Type Milling Machine work objects should be clamped with pressure plates, screws or special tools. It is not allowed to use a normal wrench to add casing to avoid slipping and hurting people.

2. The tool must be clamped firmly, otherwise it is not allowed to drive to work.

3. Before work, check the operation of the transmission part of the machine tool, and install the baffle of the machine tool before it can operate.

FAQ

Q:Are you a manufacturer?

A:Yes, we are a manufacturer of CNC machine tools.We have been in the machinery industry 40 years. We have the world's leading production experience in fully automatic machinery.

Q:What is the strength of your factory?

A:The scale of ALLES CNC is very large. The processing workshop is equipped with about 100 machines for processing all parts of the machine, including the spindle, flange parts and machine bed. These machines include 38 lathes, 10 VMC, 20 horizontal boring machines, 6 large gantry milling machines and other boring machines, grinders, planers, etc.
