ALHC630
ALLES CNC

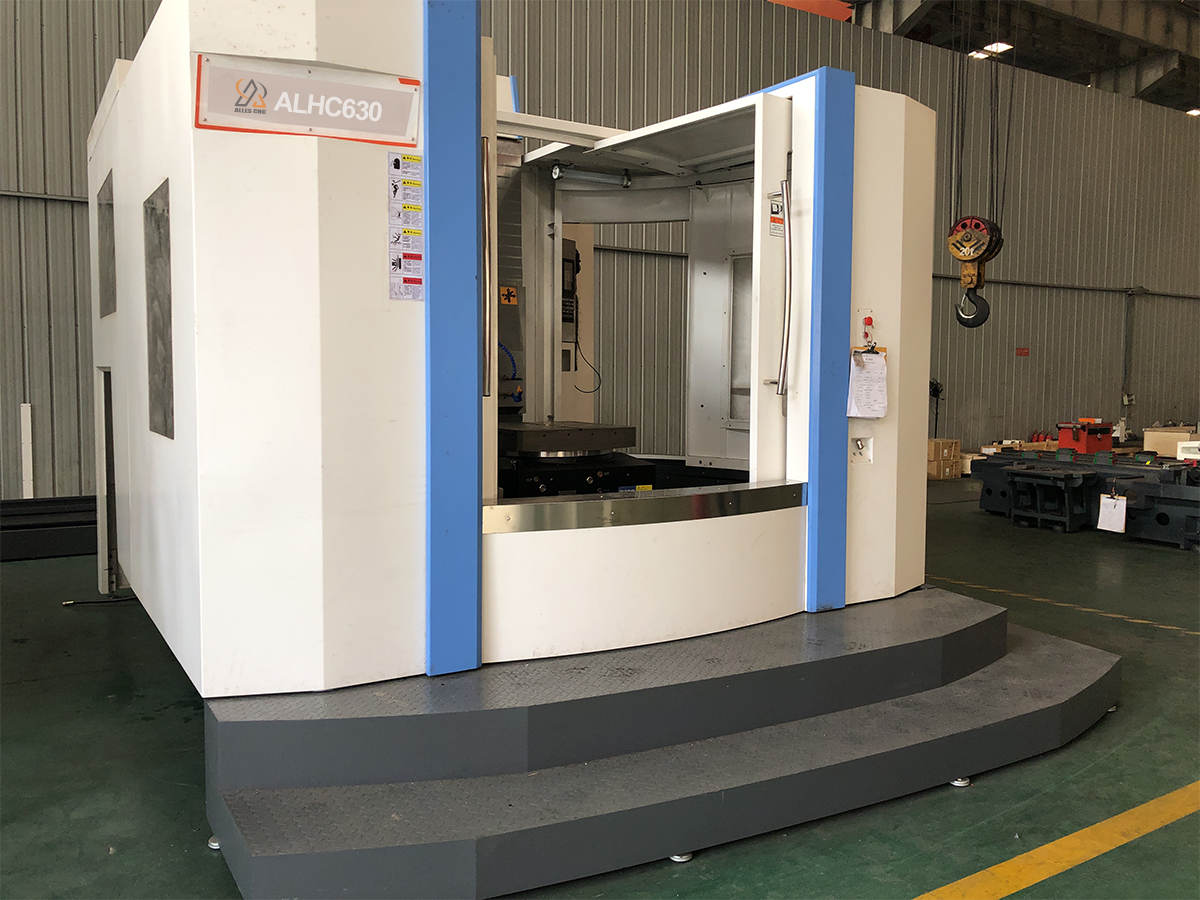

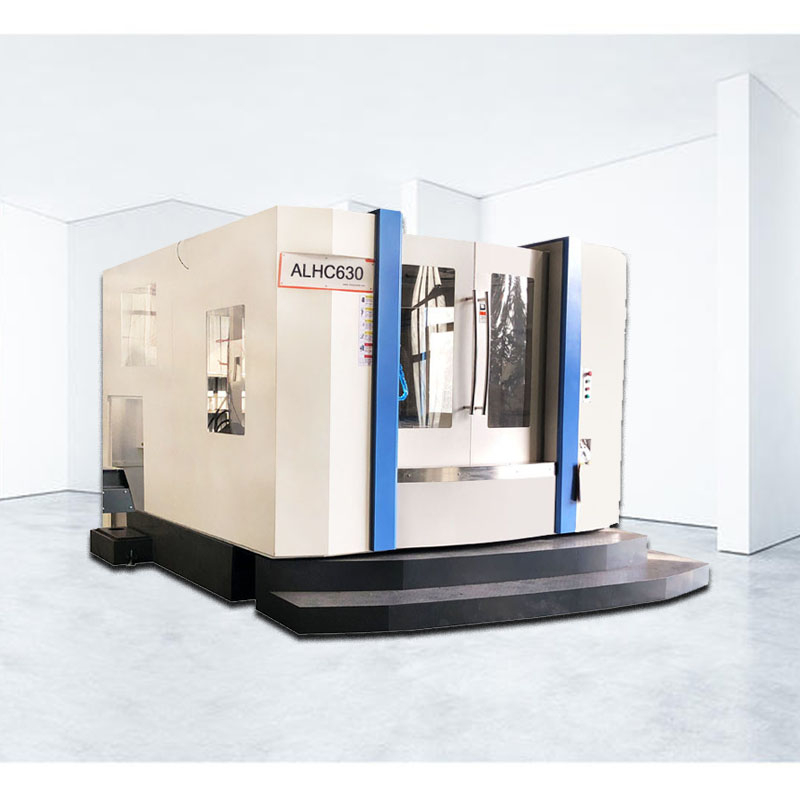

ALHC630A horizontal cnc machine center is suitable for complex machining of box parts. It can automatically exchange tools during machining. It can be used for milling, drilling, reaming, boring, reaming and tapping in one time. Modern machine tools and control concepts, compact structure design, to ensure high efficiency and high precision processing requirements for single or small batch products.
The ALHC630 CNC horizontal machining center main structure of the machine tool is inverted T type, full-motion column structure and good rigidity. When the room temperature changes, there is no distortion, bending deformation, and stable high precision is maintained. The whole machine fully embodies the engineering concept of human-machine integration, and is a high-performance, high-efficiency, high-speed high-grade CNC machine tool, which is convenient to use, operate and maintain.
cnc Horizontal machining center for milling /ALHC630 is mainly composed of the parts of the spindle screw lubrication system, the cooling system, the numerical control operation panel and the electronic control system .
It is mainly used in heavy industries, such as aircraft, automobiles, ships and other heavy industries. It mainly processes large and complex workpieces, such as aircraft beams, frames and some parts of large machinery.
| Item | Unit | Specification | |
Processing range | Travel（X/Y/Z） | mm | 1000/900/90 |
Spindle center line to worktable distance | mm | 100~950 | |
Spindle end to worktable center line distance | mm | 200~1100 | |
Work table | Worktable size | mm | 630×630 |
Max. load | kg | 1200 | |
Max. size of work piece | mm | 1000×800 | |
Min. indexing angl | ° | 1 | |
T-slot（pieces×width×distance） | mm | 5×18×12 | |
| Rotation diameter | mm | 1300 | |
| Spindle | Spindle speed | rpm | 50~6000 |
Spindle number | 7:24 Taper 5 | ||
Spindle motor | kw | 18.5 K | |
Spindle torque | Nm | 600 | |
Speed | Fast move speed（X/Y/Z） | m/min | 20/15/20 |
Cutting feed speed（X/Y/Z） | mm/min | 1~8000 | |
Machine minimum setting unit | mm | 0.001 | |
| Tool magazine | Quantity of tools | 30 | |
Shank type | BT50 | ||
Max.Diameter/length/ Weight of tool | 125mm/400mm/15kg | ||
| Machine tool accuracy | positioning accuracy（X/Y/Z） | mm | 0.008 |
Repeat accuracy（X/Y/Z） | mm | 0.005 | |
Rotary table indexing accurac | ±5 | ||
Rotary table repeat indexing accurac | ±1 | ||
Others | Battery capacity | KVA | 55 |
Air source / air pressur | 200L/min 6~8bar | ||
Cutting fluid volume | L | 650 | |
Machine weight | kg | 1480 | |
Base:The advanced finite element analysis software ANSYS is used to optimize the M-shaped ribs to ensure the strength and rigidity, so that the performance indexes of each component are optimized, and the accuracy is ensured.
Y-axis column:The frame structure column formed by two walls has an overall honeycomb arrangement in the two side walls, which has high torsion bending rigidity and bilateral symmetrical structure, ensuring excellent thermal stability.
Main Axle Box:The high-power AC servo spindle motor can realize stepless speed regulation of the spindle, and meet the requirements of low speed, high torque and high speed cutting.
Drive:The advanced high inertia feed servo motor is used to realize the three-axis feed drive. Taiwan's high-rigidity ball screw, in which the X/Z axis adopts the roller guide for the wire gauge structure and the Y-axis adopts the rigid gauge rectangular structure. Good and high precision.
Q1. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
Q2. What's the main products of your company?
We specialized in many kinds of CNC machines, such as CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center and so on.
Q3.Delivery time
Machines order takes 20 days after deposit payment received. Please inquiry sales.
Q4. How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing. Please contact your Taian Taizhuo sales representative for details.
Q5. How' s your after-sale service?
Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.
Q6. Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place.
Q7. What's the MOQ?
A: MOQ is 1 set.
Q8.After-sales service
We have local after-sales service in more than 20 countries including India, Vietnam, Pakistan, Russia, Serbia, and the United Kingdom, and we can provide on-site service to solve problems anytime, anywhere
