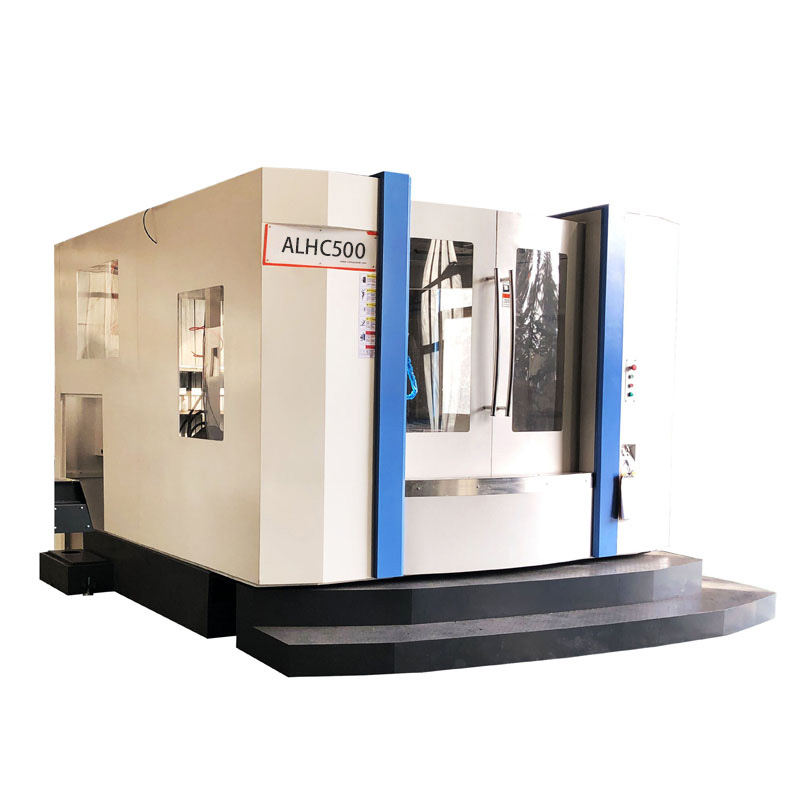

ALHMC500
ALLES CNC
| Name | Unit | Parameters | Note |
| Processing range | X/Y/Z axis | mm | 800/800/800 |
| Spindle center to work surface | mm | 0-800 | |
| Spindle nose to workbench center | mm | 220-1020 | |
| workbench | Table area | mm | 500×500 |
| Maximum workpiece size | mm | Φ700 | |
| Maximum load of table | kg | 1000 | |
| Maximum height of workpiece | mm | 1000 | |
| Table minimum segmentation Angle | ° | 1° | |
| T-slot (number of slots x width X spacing) | mm | 5×14×100 | |
spindle | Maximum spindle speed | RPM | 8000 |
| Maximum machining size (rotary diameter) | mm | 1200 | |
| The spindle taper | BT | BT40 | |
| Spindle maximum cutting torque (standard) | N-m | 105 | |
| Spindle motor (Rated/Max) | Kw | 11/15 | |
speed | Triaxial fast displacement velocity (x/y/z) | m/min | 36/36/36 |
| Machine tool minimum setting unit | 0.001 |
CNC Horizontal Milling Machining Center adopts the design concept of the whole machine, comprehensively considers all aspects of the machine tool, reserves the whole machine interface for different customers, adopts the popular inverted T-shaped moving column type, the overall bed structure, and the reasonable reinforcement is optimized. The chip removal structure and the improved guide rail lubrication recovery system improve the overall rigidity and appearance quality of the casting

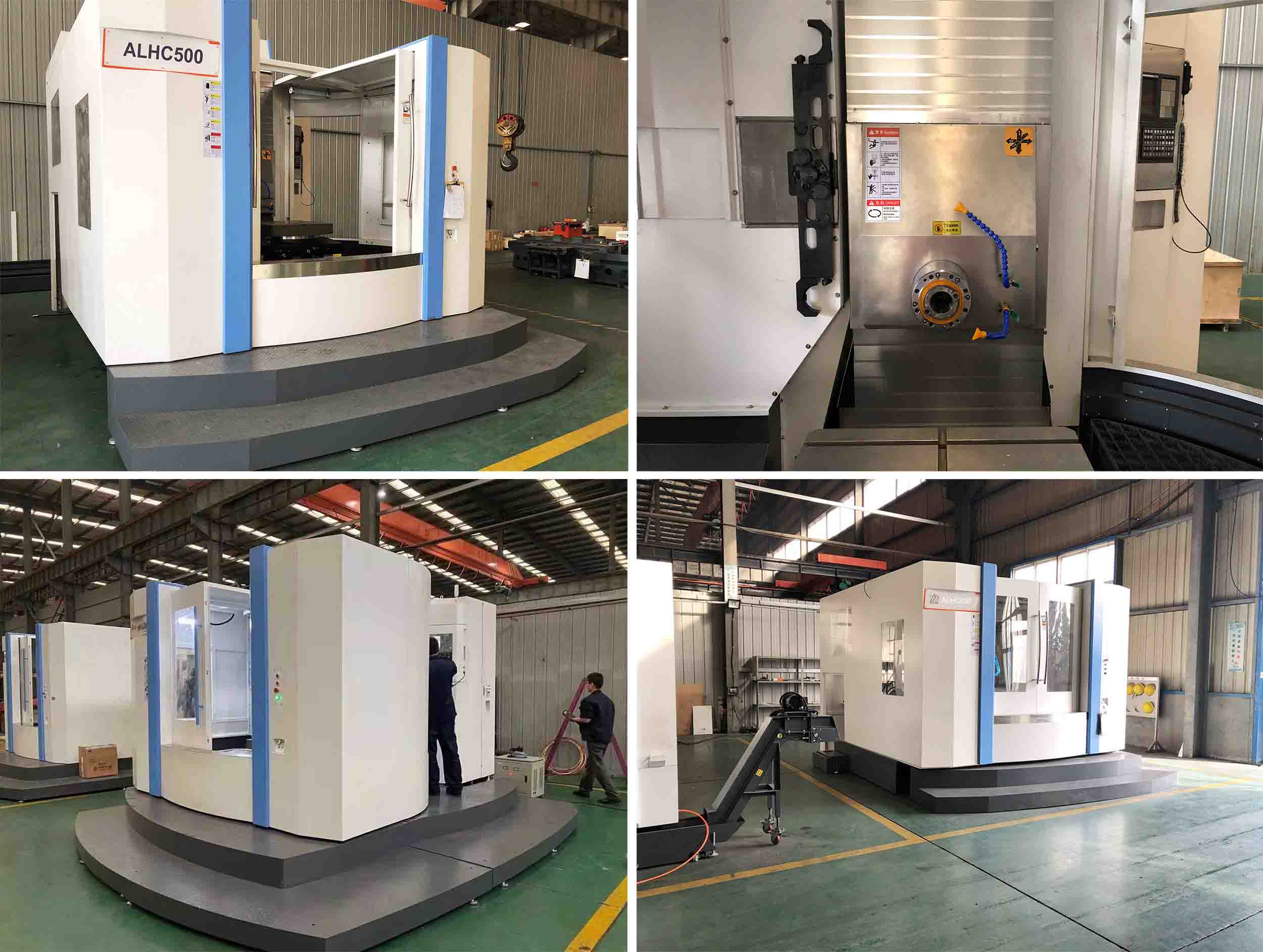

HMC500 CNC Horizontal Milling Machining Center adopts a mechatronics structure. The electrical control cabinet and pneumatic devices are installed on the body, which reduces the floor space and simplifies the handling and installation. The CNC Horizontal Milling Machining Center can also be equipped with double exchange tables for unattended operation and shorter workpiece machining cycles. The ball screw bearings of each feed axis of the machine tool are lubricated with thin oil. The CNC Horizontal Milling Machining Center realizes the advantages of maintenance-free machine tool and good lubrication effect, which improves the service life of the ball screw, suppresses the temperature rise, and improves the precision of the machine tool.
Q1. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
Q2. What's the main products of your company?
We specialized in many kinds of CNC machines, such as CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center and so on.
Q3.Delivery time
Machines order takes 20 days after deposit payment received. Please inquiry sales.
Q4. How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing. Please contact your Taian Taizhuo sales representative for details.
Q5. How' s your after-sale service?
Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.
Q6. Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place.
Q7. What's the MOQ?
A: MOQ is 1 set.
Q8.After-sales service
We have local after-sales service in more than 20 countries including India, Vietnam, Pakistan, Russia, Serbia, and the United Kingdom, and we can provide on-site service to solve problems anytime, anywhere
