ALCK6140x1000
ALLES CNC

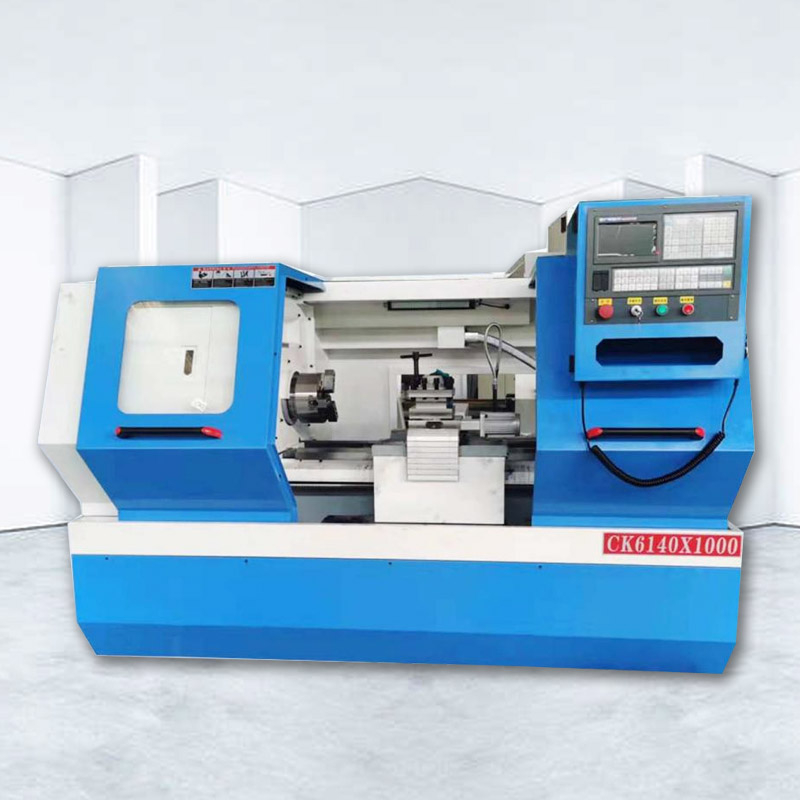

The flat bed CNC lathe is mainly used to process high-precision parts such as shafts, disc parts, shell parts, molds, etc. Its high processing performance and scalability make it widely used in the processing of various precision parts.
| Model | ALCK6140*1000 | |
| Processing capacity | Maximum turning diameter of bed | 400mm |
| Maximum turning diameter on the tool post | 220mm | |
| Center distance | 1000mm | |
| Rail width | 360mm | |
| X stroke | 250mm | |
| Z-stroke | 900mm | |
| Headstock | Spindle hole diameter | 52mm |
| Max Spindle speed | Gear two gears1600rpm Independent axis 2200rpm(for metal) | |
| Skateboard | Fast moving speed of carriage | X/Z:5/8m/min |
| Repeatability | Z:0.013mm X:0.012mm | |
| Tailstock | Diameter of tailstock sleeve | 65mm |
| Maximum stroke of tailstock sleeve | 120mm | |
| PACKING(L*W*H) | 2350x1400x1800mm | |
| WEIGHT(N.W/G.W) | 1550/1650kg | |
1. The flat bed CNC lathe bed is made of high-standard cast iron, which has good rigidity and strong anti-vibration ability; the guide rail surface is quenched by medium frequency to ensure long life, high precision and good retention;
2. The flat bed CNC lathe base adopts an integral base, lost foam casting, and the appearance is flat and beautiful;
3. Electric tool holder, quick and convenient tool change (can also be equipped with a row tool holder);
4. The cnc turning center can be equipped with pneumatic and hydraulic devices, oil bath feeders, etc.
Horizontal CNC Turning Center is a high-speed, high-precision CNC lathe, which has the functions of turning cylindrical surfaces, conical surfaces, arc surfaces, inner holes, grooving and various threads. It is suitable for single, small batch or complete machining of various parts batch production.
