ALCK6160X2000
ALLES CNC
CNC lathe turning spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance, precision positioning.

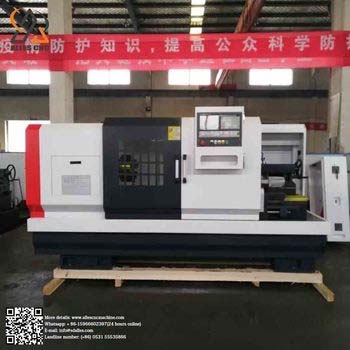

ALCK6160X2000 CNC Lathe Machine
1.CNC lathe Higher accuracy Taiwan linear guide ways
2.CNC lathe machine Higher speed spindle unit
3.Horizontal CNC lathe machine Higher rigidity cast iron
4.Mini lathe CNC Integrated automatic lubrication
5.CNC lathe 3 axis One-piece casting slant bed CNC lathe
Equipment configuration and parameters
| Item | Unit | ALCK6160 |
| Max swing over bed | mm | Φ600 |
| X-direction rail span | mm | 210 |
| Z-direction rail span | mm | 400 |
| Maximum swing over slide | mm | Φ395 |
| Center distance | mm | 2100 |
| Maximum turning length | mm | 1950 |
| Spindle hole diameter | mm | Φ82 |
| Bar diameter | mm | φ80 |
| With hollow chuck pull rod through hole | mm | Φ65 |
| Spindle speed limit | rpm | 1600 |
| Diameter of tailstock sleeve | mm | φ75 |
| Knife square size | mm | □25×25(Four station) |
| X/Z direction fast moving speed | m/min | 6/8 |
| X stroke | mm | 320 |
| main motor power | KW | 7.5 |
| Total power | KW | 12.5 |
| Machine weight | Kg | 3170 |
| Dimensions (length × width × height) | mm | 3750×1650×1750 |
ALCK6160X2000 CNC Lathe Machine
Automatic CNC lathe machine has the characteristics of high precision, high power, high rigidity, etc. Its main components and structures have been optimized design, and can process shafts, discs, sleeves, special-shaped surfaces and screw work pieces.
CNC lathe turning spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance, precision positioning.
