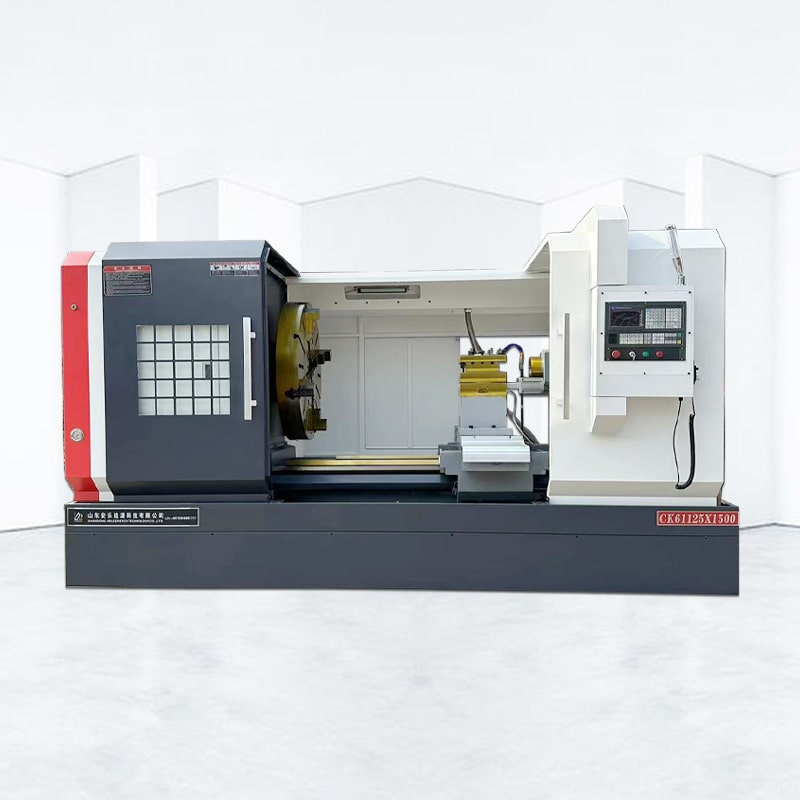

ALCK61125X1500
ALLES CNC
1. ALLES CNC CNC lathe adopts beadless wide hard guide rail and fully enclosed safety guard. Well-equipped, beautiful appearance, high rigidity, high precision, reliable, easy and safe to operate.
2. The built-in bed leg resolution and ultrasonic hardened guide rail make the CNC lathe machine have high rigidity and precision. Bed and foot bed, spindle and carriage, etc., precious castings. Through the finite element analysis, intelligently organize the playback tape, which effectively improves the performance of the machine in this regard.
3. There are 2 types of equipment boxes to choose from, such as: 2-stage variable speed and 1 continuously variable speed spindle, to meet the needs of customers who need large torque and high processing speed machine tools. Among the spindle bearings, purchase precision bearings and have servo shafts online Remote control is available as an option.
4. There are adjustment tools to choose from, which can easily adjust the high center, and is also suitable for various tools used in the processing process.
5. The horizontal CNC lathe machine adopts a fully enclosed safety protection device. Since the control panel unit with the pull door operation panel can move simultaneously with the door, it will help to make the operation more convenient.
ALLES ALCK61100X1500 CNC lathe machine
Equipment configuration and parameters
| Project | Content | Unit | ALCK61125-1500 |
| Processing range | Maximum turning diameter on the bed slide | mm | Φ1250 |
| Maximum turning diameter on the skateboard | mm | Φ900 | |
| Maximum processing length | mm | 1500 | |
| Effective processing length | mm | 1350 | |
| Maximum machining diameter | mm | Φ1250 | |
| Maximum bar diameter | mm | Φ630 | |
| Spindle | Spindle through hole diameter | mm | Ф105 |
| X/Z axis | N.m | 10/15 | |
| X/Z axis rapid traverse speed | m/min | 4/6 | |
| Feed | X/Z axis travel | mm | 530/1500 |
| X/Z axis minimum displacement unit | mm | 0.001 | |
| Machine net weight | kg | 5000 | |
| Machine tool dimensions (length × width × height) | mm | 3700*1820*1780 | |
| Electricity demand (power/current) | kW/A | 20kW/30A |
1. The CNC turning machine adopts a solid cast frame to ensure the high rigidity of the machine;
2. The modern design of the Flat bed CNC lathe rail provides high rigidity, and the width of the bed rail is 755mm;
3. Components from world famous manufacturers.
Automatic CNC lathe machine is widely used in auto parts, valves, plumbing, abrasives, aerospace, 3C and semiconductor, communications and other industries. The products spread all over the country and are exported to Russia, Belarus, Kazakhstan, Uzbekistan, Mexico, Colombia, Brazil and Serbia, Poland, Australia and other 100 countries.
