ALTCK50A
ALLES CNC

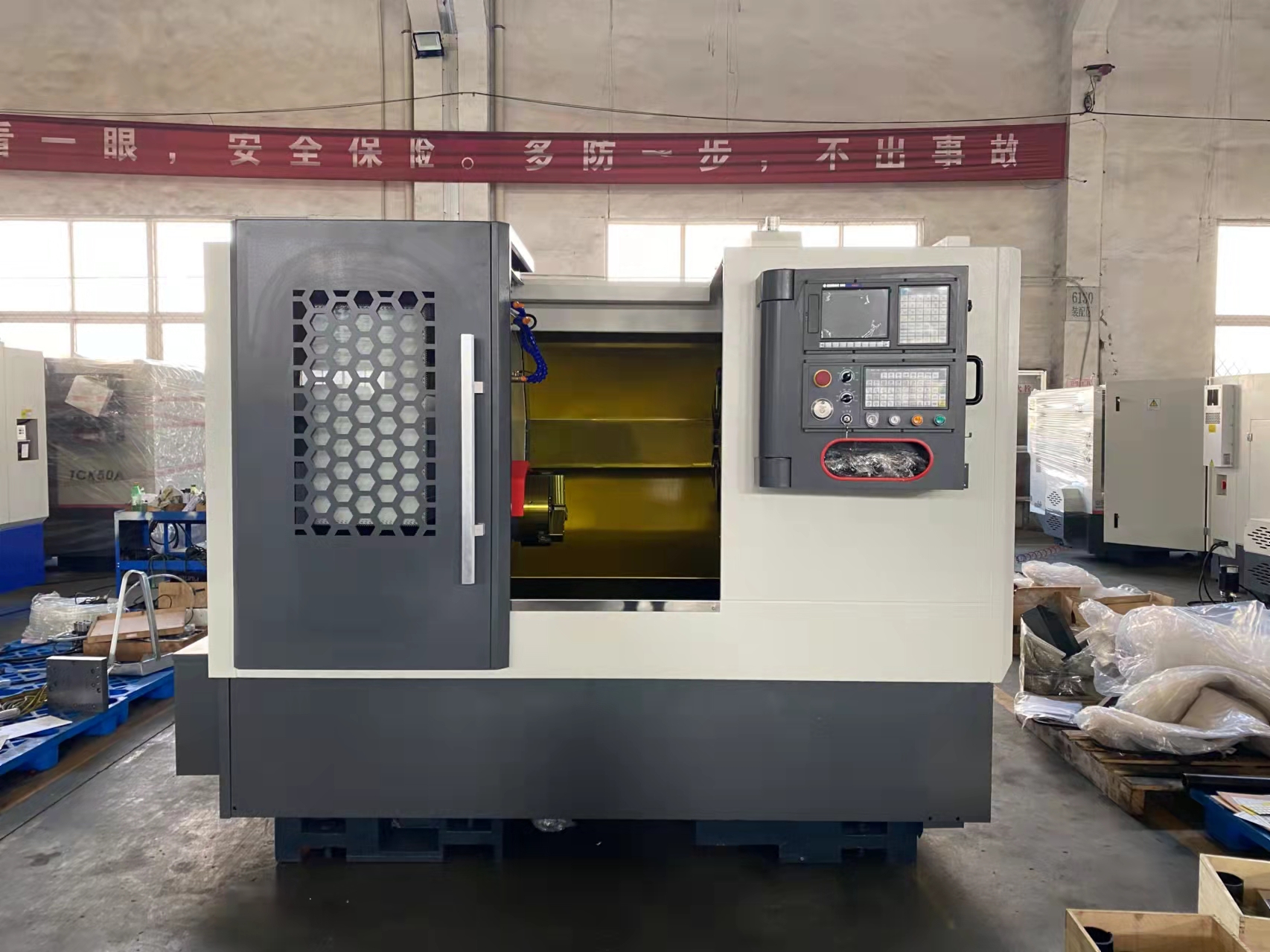

CNC Lathe Machine ——In The Laster Inspection Of The Inclined Bed
1.CNC lathe highest precision Taiwan linear guide
2.Horizontal CNC lathe machine High-speed spindle unit, optional domestic spindle
3.High rigidity cast iron
4.Integrated automatic lubrication
5.CNC lathe for sale One-piece casting inclined bed CNC lathe
The Main Technical Parameters
Item | Unit | ALTCK56A/500 |
Maximum turning diameter of bed | mm | φ560 |
X-direction rail span | mm | 254 |
Z-direction rail span | mm | 364 |
Maximum turning diameter of slide | mm | φ360 |
Center Head Distance | mm | 500 |
Maximum turning length | mm | 500 |
Spindle hole diameter | mm | φ65 |
Bar diameter | mm | φ50 |
With hollow chuck pull rod through hole | mm | φ50 |
Spindle speed limit | rpm | 0-3500(automatic) |
Tailstock sleeve stroke | mm | 250 |
Tools in electric tool post | pcs | 8 |
Knife square size | mm | □25×25(8 stations) |
X direction stroke | mm | 200 |
Z direction stroke | mm | 560 |
Minimum Setting Unit | mm | 0.001 |
Total Electric Power | KW | 18 |
Machine Weight | Kg | 4000 |
Machine Size(L×W×H) | mm | 2950×1860×1850 |

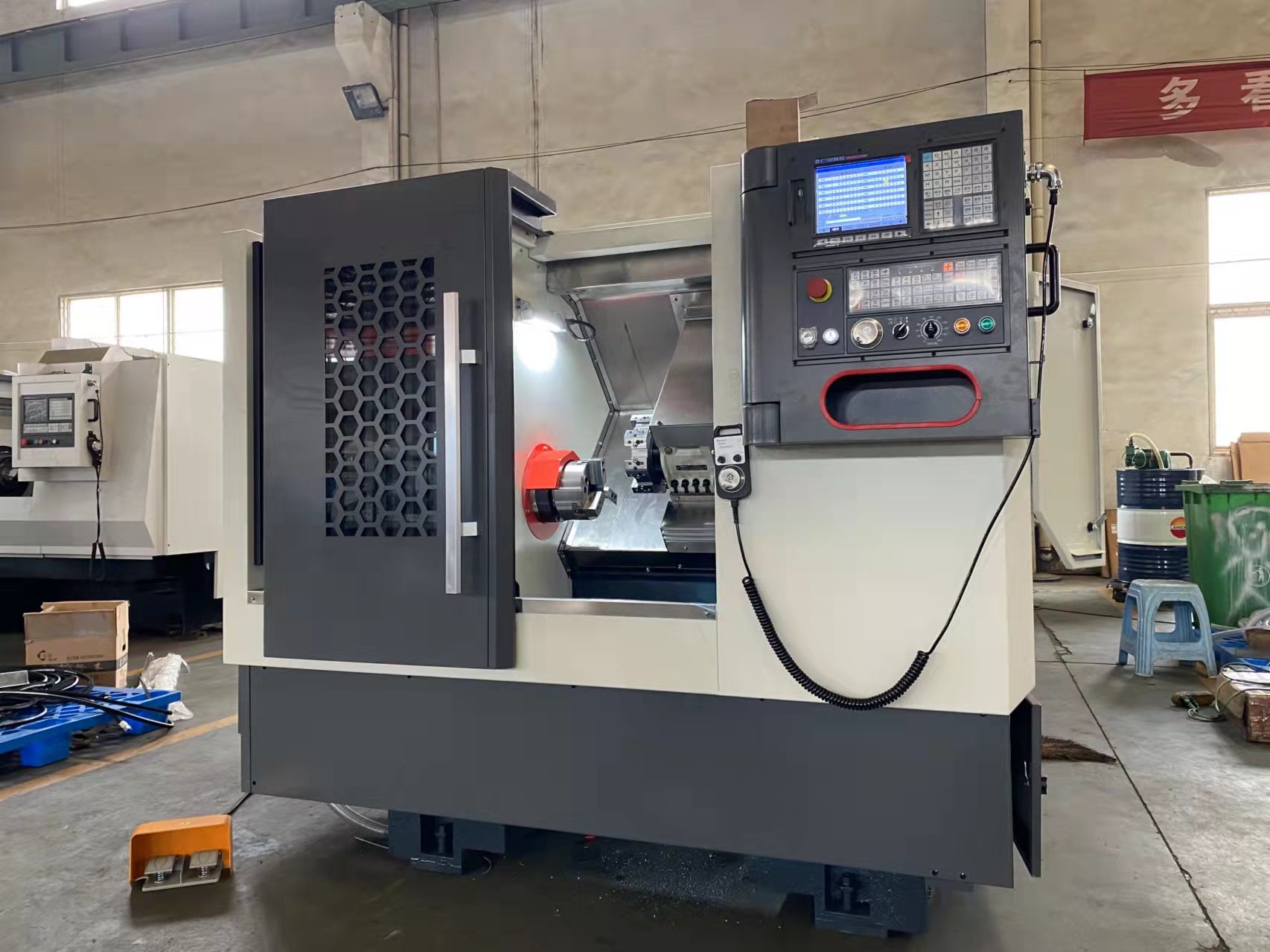

CNC Lathe Machine ——CNC Inclined Lathe Machine Test Machine
1.Horizontal CNC lathe machine good stability
2.Hydraulic turret provides fast turret index, non-stop and bi-directional and high accuracy performance.
3.The automatic CNC lathe machine features a one-piece base structure that increases machine stability and maximizes cutting stiffness.
Horizontal CNC lathe machine is suitable for automobiles, motorcycles, electronics, aerospace, military, petroleum and other industries. The bed has a high rigidity of 45 degrees, and the high-torque spindle adopts Taiwan track line to ensure high rigidity of the machine tool. The spindle is close to the center of the manipulator, and the work piece loading and unloading is more convenient.
CNC Lathe Machine ——In The Laster Inspection Of The Inclined Bed
1.CNC lathe highest precision Taiwan linear guide
2.Horizontal CNC lathe machine High-speed spindle unit, optional domestic spindle
3.High rigidity cast iron
4.Integrated automatic lubrication
5.CNC lathe for sale One-piece casting inclined bed CNC lathe
The Main Technical Parameters
Item | Unit | ALTCK56A/500 |
Maximum turning diameter of bed | mm | φ560 |
X-direction rail span | mm | 254 |
Z-direction rail span | mm | 364 |
Maximum turning diameter of slide | mm | φ360 |
Center Head Distance | mm | 500 |
Maximum turning length | mm | 500 |
Spindle hole diameter | mm | φ65 |
Bar diameter | mm | φ50 |
With hollow chuck pull rod through hole | mm | φ50 |
Spindle speed limit | rpm | 0-3500(automatic) |
Tailstock sleeve stroke | mm | 250 |
Tools in electric tool post | pcs | 8 |
Knife square size | mm | □25×25(8 stations) |
X direction stroke | mm | 200 |
Z direction stroke | mm | 560 |
Minimum Setting Unit | mm | 0.001 |
Total Electric Power | KW | 18 |
Machine Weight | Kg | 4000 |
Machine Size(L×W×H) | mm | 2950×1860×1850 |
CNC Lathe Machine ——CNC Inclined Lathe Machine Test Machine
1.Horizontal CNC lathe machine good stability
2.Hydraulic turret provides fast turret index, non-stop and bi-directional and high accuracy performance.
3.The automatic CNC lathe machine features a one-piece base structure that increases machine stability and maximizes cutting stiffness.
Horizontal CNC lathe machine is suitable for automobiles, motorcycles, electronics, aerospace, military, petroleum and other industries. The bed has a high rigidity of 45 degrees, and the high-torque spindle adopts Taiwan track line to ensure high rigidity of the machine tool. The spindle is close to the center of the manipulator, and the work piece loading and unloading is more convenient.
