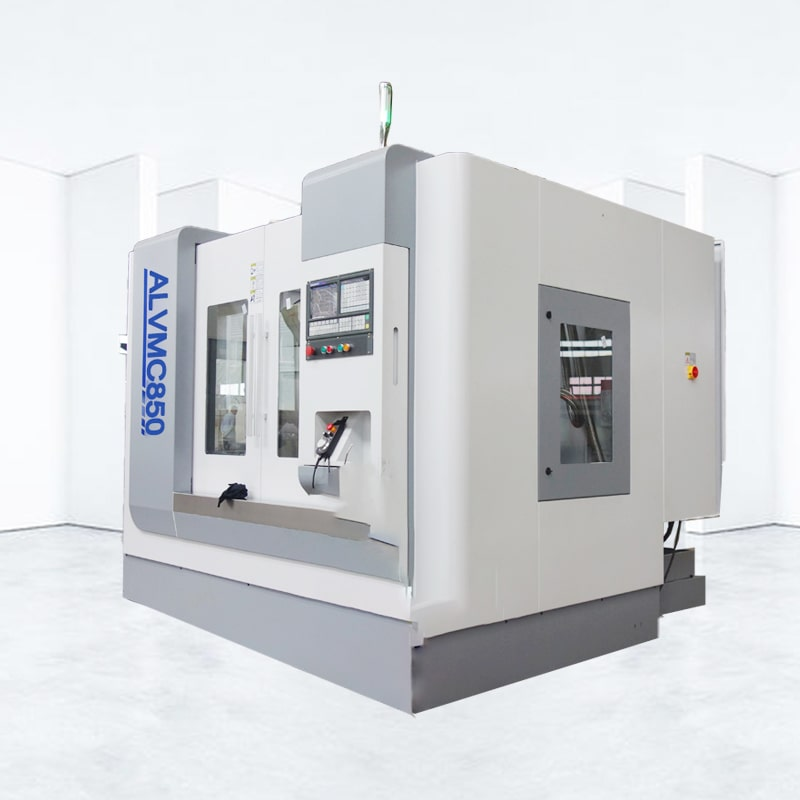

ALVMC850
ALLES CNC
CNC Milling machine metal is a multi-purpose machine which could mill surface & drill holes.

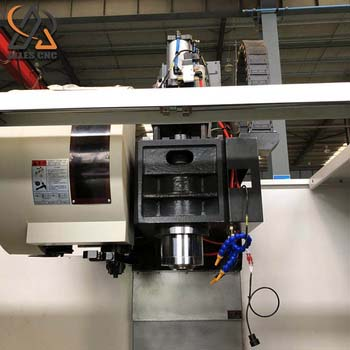

The ALVMC850 vertical machining center processes facial masks, from rough to precise. The belt-type 10000-rotation spindle, the Z-axis and Y-axis adopt 45mm Taiwan P-level linear guides, and the Z-axis roller six-slider support design. FANUC PLUS has AICC1 features
1. 3 axis machine center Spindle adopts imported frequency converters, which could fulfill variable speed control & constant linear speed cutting functions; machining body adopts ultrasonic frequency hardening treatment;
2. Mini CNC milling machine both X-axle & Z-axle adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball screws. With high power, pleasant rigidity, high precision & storage, high price-quality ratio and long cycle life.
Technical Parameters
| Model | ALVMC850C |
| X axis | 1000mm |
| Y axis | 500mm |
| Z axis | 500mm |
| Distance from spindle nose to table | 100-600mm |
| Distance from spindle center to column | 550mm |
| Worktable size | 1000×500mm |
| Max. loading capacity | 400kg |
| T-slot | 5×18×90mm |
| Speed | 8000rpm |
| Taper | BT40 |
| Main motor power | 5.5Kw |
| Rapid feed speed | 20m/min |
| Cutting feed speed | 10m/min |
| Positional accuracy | 0.016mm |
| Repeated positional accuracy | 0.006mm |
| X Y Z motor torque | 10/10/15Nm |
| Weight | 3800 Kg |
| Overall dimensions（L×W×H） | 1900×2310×2300mm |
CNC vertical machining center
1.CNC milling machine body adopts alloy cast iron with secondary tempering to ensure the stability and reliability of the body and effectively prevent the deformation of the body
2.CNC machining centre Linear Guide Rail X/Y/Z may satisfy the customer the speed, the precision high request
CNC Milling machine metal is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .
CNC machine center also finish many working procedures like milling ,drilling,tapping,boring ,etc.
