ALTCK36A
ALLES CNC

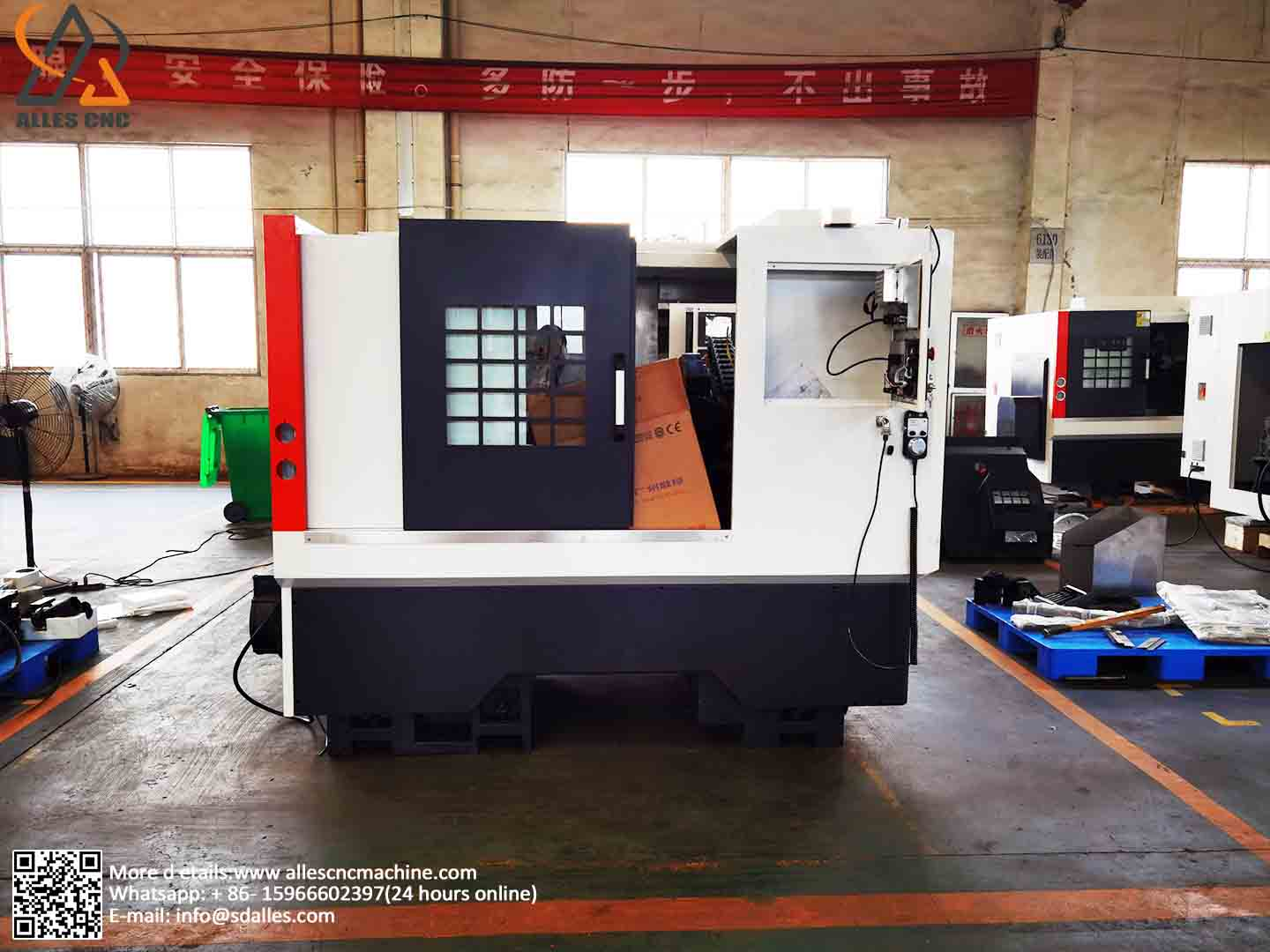

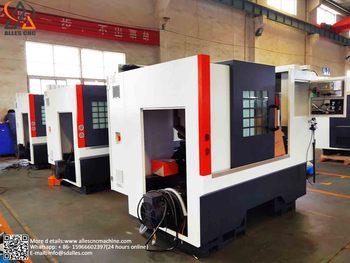

Slant Bed CNC Lathe with Oil Bath Feeder
1.CNC turning machine is applied to precision machining of shaft, disk type parts.
2.CNC automatic lathe With the 45° overall high strength cast iron slant bed, smooth chip removal, good rigidity.
3.Slant bed CNC lathe Precision high-rigidity linear rolling guide.
The Main Technical Parameters
| Section | Item | ALTCK36A |
| The main parameters | Maximum upper turning diameter of bed | Φ360mm |
| Maximum machining diameter on tool post | Φ140mm | |
| Maximum processing length | 300 | |
| Spindle and chuck parameters | Spindle head type (optional chuck) | A2-5 |
| Spindle motor power | 3.7/5.5KW | |
| Spindle speed | 4000pm | |
| Spindle hole diameter | Φ48 | |
| Bar diameter | Φ41 | |
| Feed part parameters | X/Z axis screw specifications | 25*10/32*10 |
| X axis limit stroke | 170 | |
| X/Z axis rail specifications | 30/30 | |
| Z axis limit stroke | 350 | |
| Sleeve stroke | 60 | |
| Maximum stroke of tailstock | 200 | |
| Taper hole of tailstock sleeve | Mohs 4# | |
| Bed frame | Bed form and slope | Integral/45° |
| Shape | length * width * height (mm) | 2200×1600×1850 |
| Weight | Weight (approximate weight) | 2200kg |

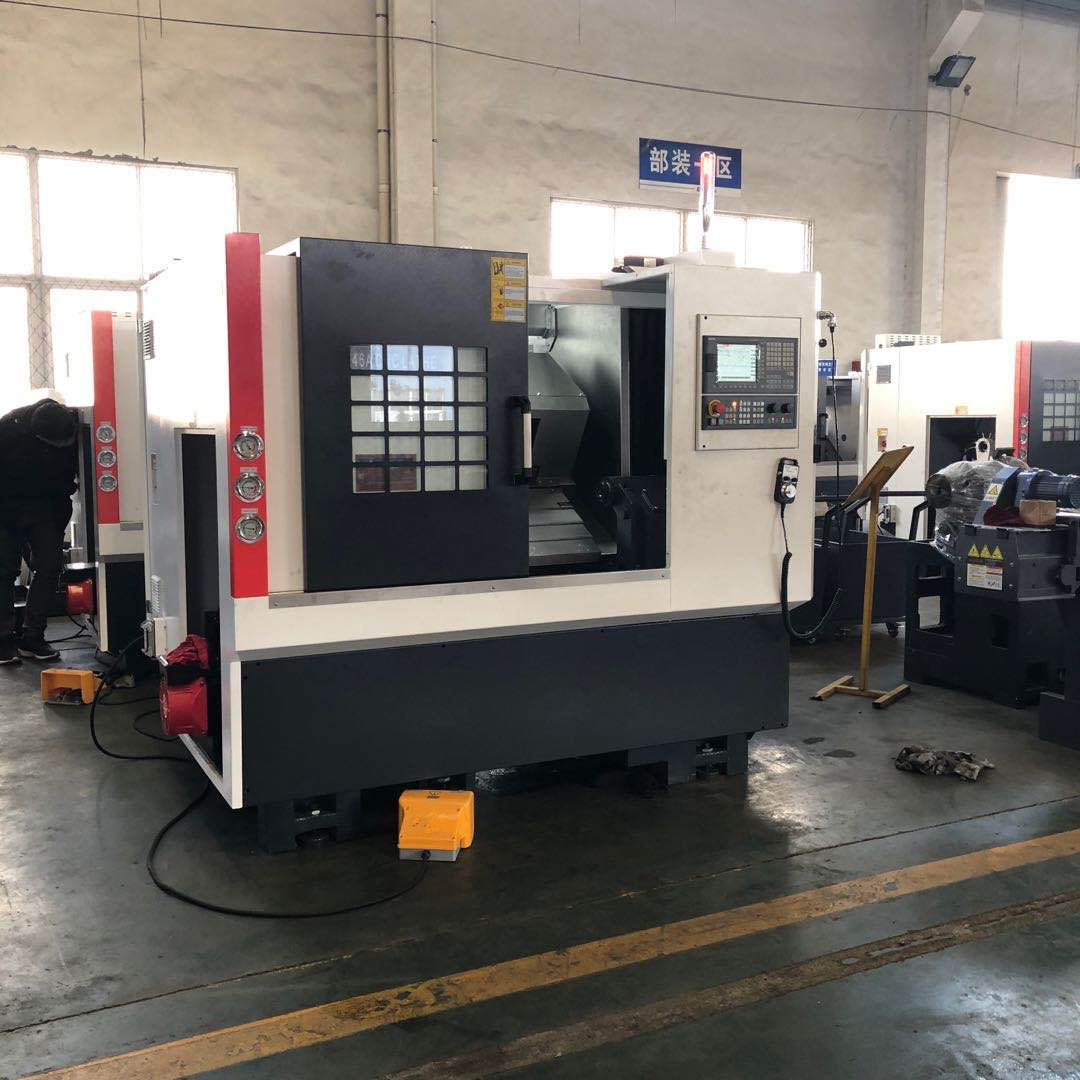

ALTCK36A Slant bed and linear guide way CNC lathe test long shaft work piece
Horizontal CNC lathe machine is slant bed CNC lathe Machine,which has X,Z,axis,and controlled by servo motor .It has a compact and reasonable structure,the spindle driven by servo motor .The machine can turn drill outer ring,end face,thread of Rod type and Plate type work piece in kinds of material,many kinds processes.CNC automatic lathe is suitable to process small work piece in a high efficient .
