Metal CNC Lathe Machine CNC Slant Bed Lathe TCK50A is applicable to automobile, motorcycle, electronics, aerospace, military, oil and other industry. It could turn the conical surface, circular arc surface, end face of the rotary parts, could also turn various metric and inch threads etc,with higher efficiency and higher precision in bulk.
| Quantity: | |
|---|---|
ALTCK50A
ALLES CNC
Metal CNC Lathe Machine CNC Slant Bed Lathe TCK50A
Metal CNC Lathe Machine CNC Slant Bed Lathe TCK50A Main Features:
Metal CNC Lathe Machine CNC Slant Bed Lathe TCK50A is applicable to automobile, motorcycle, electronics, aerospace, military, oil and other industry. It could turn the conical surface, circular arc surface, end face of the rotary parts, could also turn various metric and inch threads etc,with higher efficiency and higher precision in bulk.
TCK50A CNC lathe uses a 30° beveled overall bed for more stable force during cutting. The internal ribs are optimized with Ansys software to give the machine a high degree of rigidity.
Main Parameter Display:
Specificatio | Unit | ALTCK50A |
| Max.swing over bed | mm | 500 |
Max.swing over cross slid | mm | 300 |
Max.processing length | mm | 500 |
X/Z axis max.trave | mm | 200/500 |
Spindle nose | A2-6 | |
Spindle bore | mm | 65 |
Max.spindle speed | rpm | 50-4500 |

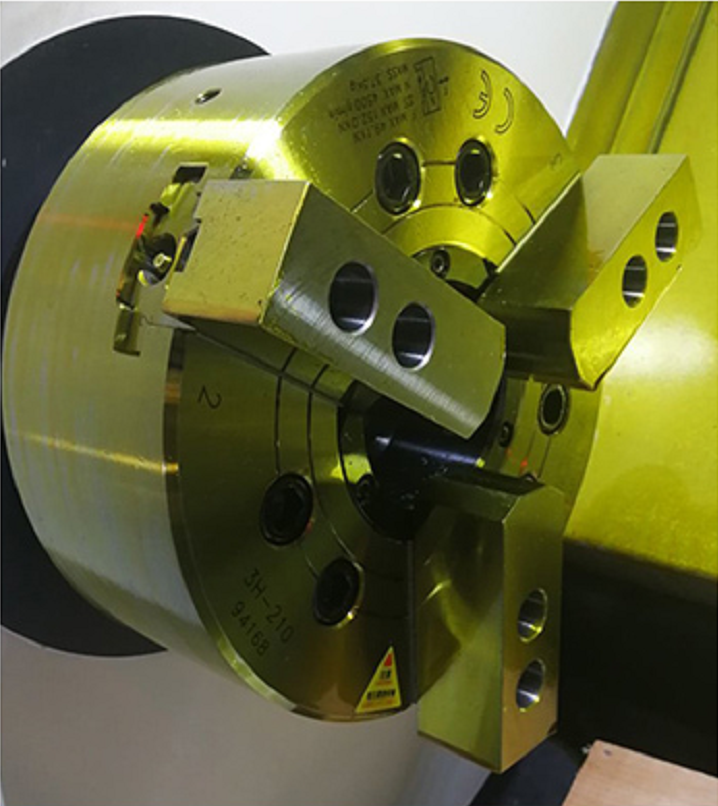

| Chuck | in | 8'' |
Spindle motor power | kw | 11 |
X/Z axis Position accuracy | mm | +/-0.008 |
X/Z axis Repeatability accuracy | mm | +/-0.004 |
X/Z rapid travers | m/min | 30 |

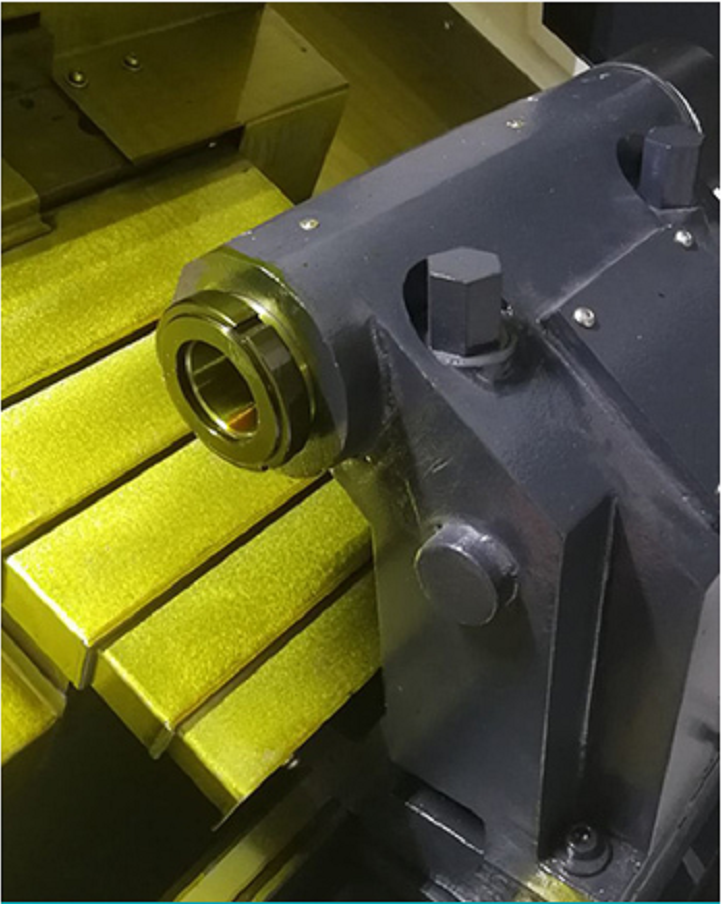

Tailstock trave | mm | 450 |
Quill travel | mm | 100 |
Tailstock taper | MT5 | |

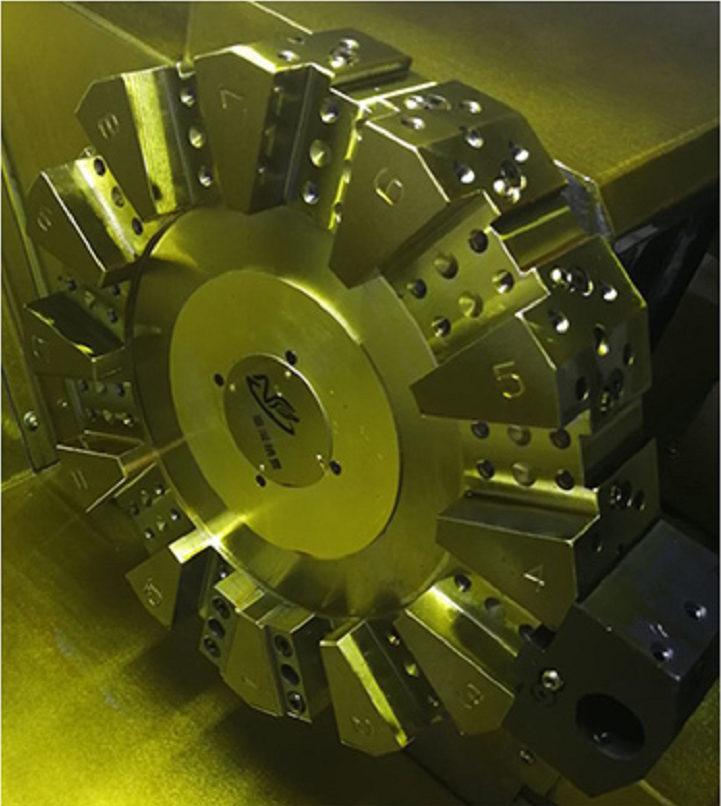

Tool post type | mm | 8 station hydraulic turret |
Tool post size | mm | 25x25 |
| Guide form | 30° degree | |
Guide rail movement wa | Linear guide rail | |
Machine dimensions(L*W*H) | mm | 2300x1700x193 |
Weight | kg | 3600 |
Video Display:
ALTCK50A Slant bed and linear guide way CNC lathe,Milling Processing:
Application :

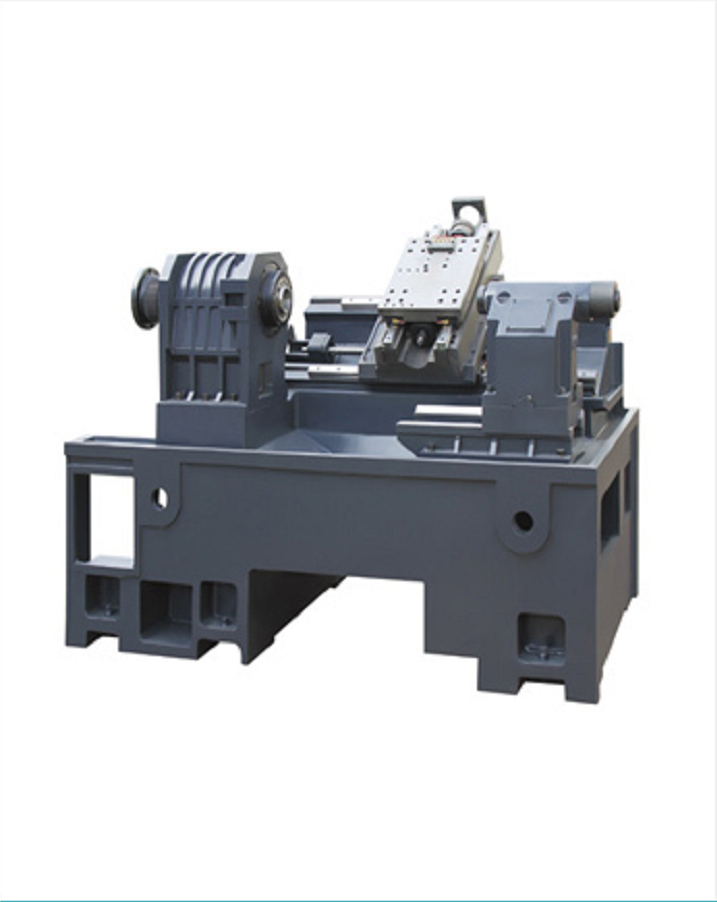

TCK50A CNC lathe uses a 30° beveled overall bed for more stable force during cutting. The internal ribs are optimized with Ansys software to give the machine a high degree of rigidity. The bed material is made of high-density cast iron, which has high strength and good shock absorption. The increased chip evacuation design ensures smooth machine cutting. The guide rail adopts 35-standard precision linear ball guide rail, which has high feed precision, small friction resistance, good rigidity, high resistance to vibration and deformation, and enables users to obtain higher machining precision, faster moving speed and production efficiency.
