ALTCK6340
ALLES CNC
1. ALLES CNC 45 degree slant bed CNC lathe.
2. Taiwan linear guide CNC lathe machine with higher precision.
3. ALLES CNC has a large amount of chip removal and is convenient for customers to choose.
4. Front row or rear row of chips.
5. The servo motors in the X and Z directions are directly connected to the screw rod through a high-torque low-inertia elastic coupling, and the screw rod is equipped with a pre-stretched structure.
6. CNC lathe 3 axis row knife holder.
7. High-speed, high-precision, high-rigidity shell-type spindle unit, servo spindle motor, can achieve higher spindle speed.
8. Use advanced centralized lubrication system.
9. The whole machine has a full protection design, which is reliable against sundries and debris, and is easy to maintain.

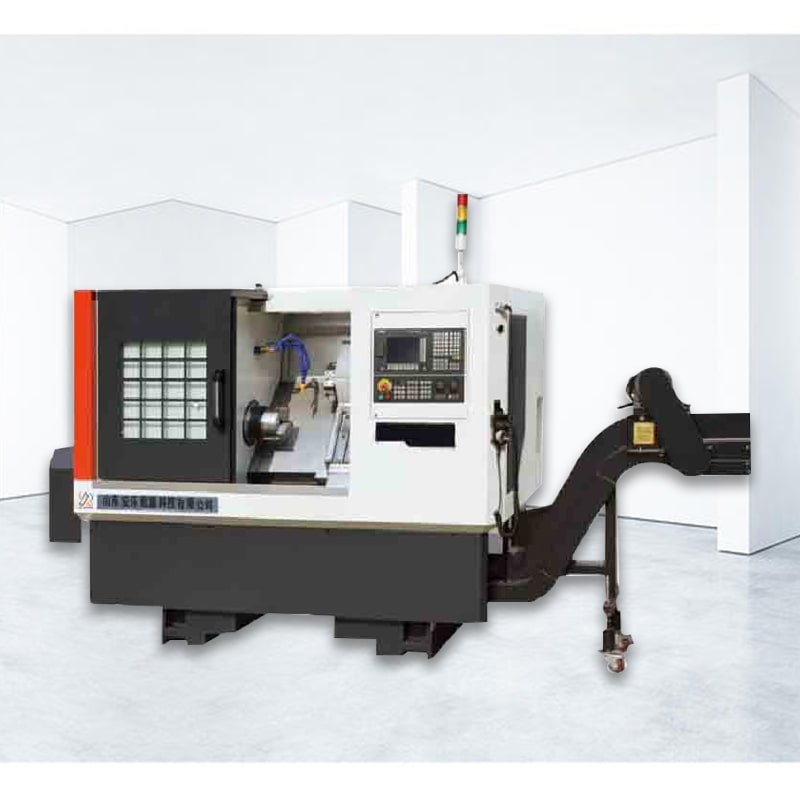

Slant bed and linear guide way CNC lathe ALTCK6340
The Main Technical Parameters
| Machine Model | Unit | ALTCK6340 |
| Max swing over bed | mm | Φ400 |
| Max swing over cross slide | mm | Φ120 |
| Maximum processing length | mm | 260 |
| Standard chuck specifications | 6″ | |
| X axis maximum stroke | mm | 380 |
| Spindle speed | rpm | A2-5 |
| Spindle speed stage | Φ45 | |
| Spindle end code | X:18 Z:18 | |
| Inner diameter of main shaft pull tube | mm | 1-15000 |
| Spindle motor power | KW | 5.5 |
| Tool bar section | 20×20 | |
| Tool holder | mm | Row knife |
| Total power capacity | mm | 18 |
| Cutting water tank capacity | KVA | 90 |
| Dimensions (L×W×H) | L | 2300X1500X1750 |
CNC slant bed lathe machine work piece
CNC lathe During the processing, the cutting chips can easily be washed down toward the chip bed by the normal flow of the coolant, which causes the chips to accumulate and interrupt the machining process. However, the special slant bed CNC lathes can resolve the problem, when CNC lathes adopt the special slant bed design can achieve a better chip evacuation effect, solving the chips accumulation trouble making the machining process uninterrupted, and increasing processing efficiency!
Slant bed CNC lathe is suitable for automobile, motorcycle, electronics, aerospace, military, petroleum and other industries.
CNC lathe can automatically complete the chip processing of internal and external circles, grooves, cones, spherical surfaces, various metric and inch threads and other rotary bodies.
