ALVMC1270
ALLES CNC

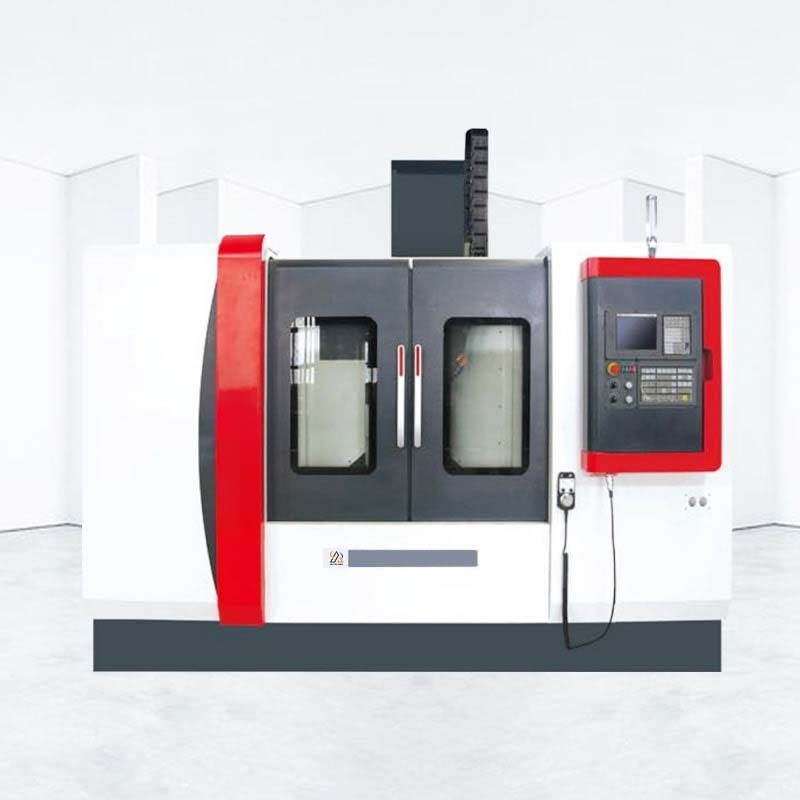

4 axis vertical machining center
CNC routers use stationary work pieces and spindles that move in X, Y, and Z. In contrast, CNC milling machines use parts that move in X and Y and spindles that move in Z. The difference in axis motion means that CNC mills have increased clearance along the Z axis, allowing them to perform thicker cuts of tougher materials.
Technical Parameters
| Model | ALVMC1160C |
| Xaxis | 1200mm |
| Y axis | 700mm |
| Zaxis | 700mm |
| Worktable size | 1200x700mm |
| Max. loading capacity | 800kg |
| Speed | 8000rpm |
| Spindle speed | 8000 |
| Taper | BT40 |
| Main motor power | 11Kw |
| Tools type | ΦDisc type |
| Tool change time | 2.8s |
| Tool length max. | 250mm |
ALLES CNC Vertical Machine Center Factory
CNC Milling machine metal Computer Numerical Control (or CNC) machining combines the efficiency of computer programming with the customizability of subtractive manufacturing. The CNC controller works in conjunction with mechanical components such as axes, motors, and drive components to automate the manufacturing process and maintain quality and repeatability.
Vertical machining center is suitable for producing metal product and parts in all shapes.
