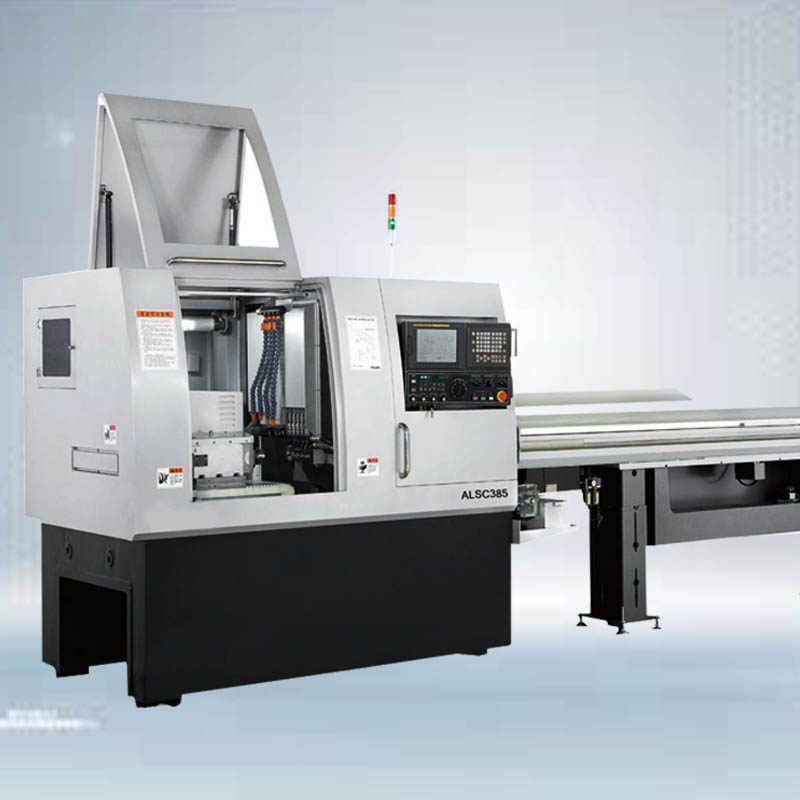

ALSC385
ALLES CNC
Swiss Type Lathe is ideal for machining complex parts, machining difficult materials, achieving fine machining and extending tool life.
Swiss Type Lathe cutting is done within a few millimeters of the guide bushing that supports the bar. This method of close cutting increases the lifespan of tools, while enhancing accuracy and providing better stability. These powerful features allow tight tolerance parts to be readily and repeatedly produced.
| ltems | ALSC385 | ||
| mechanic | System | FANUC Oi | SYNTEC |
| Max.RPM | Main10,000min-1/Sub8000min-1 | Main6,000min-1/8,000min-1 Sub6,000min-1/8,000min-1 | |
| Max Tuning Diameter | Ф38mm | ||
| Main Spindle Stroke | 210mm | ||

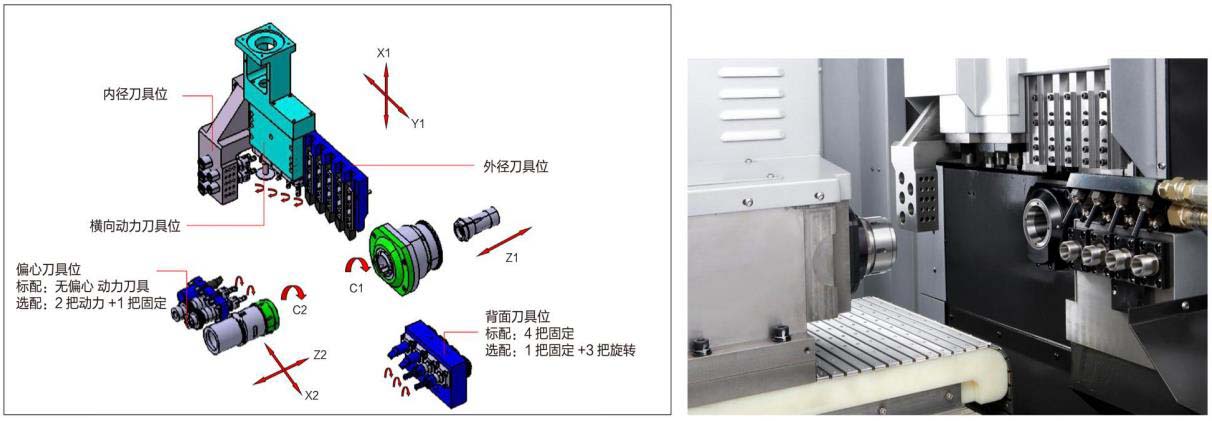

| Tools | O.D Tools | 5X[口12x12] | |
| I.N Tools | 3X[ф25-ER16] | ||
| Cross Driven Tools(integration) | 4X[ER16] | ||
| Motors | Main | 5.5/7.5KW | 5.5KW |
| Cross | 0.55/1.1KW | 1KW | |
| Drive | 1KW | ||
| Coolant | 0.9KW | ||
Others | Central Height | 1,000mm | |
| Weight | 4500Kg | ||
| Thesize(L*W*H) | 2760X1564X1882mm | ||
1.Cnc Swiss Type Automatic Turning can realize turning, drilling, cutting/deburring and roughing/finishing operations.
2.The Swiss-type automatic lathe can machine complex parts, cut hard-to-reach surfaces and even expand your tool capacity for more radial and axial work.
Swiss-style turning machines coupled to automatic, high-capacity bar feeders are ideal for unattended and lights-out production of parts ranging from medical and dental products to sensitive measuring instruments and, of course, Swiss watches.
