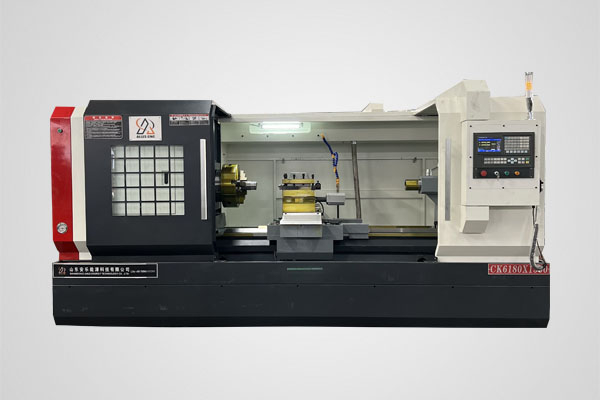

ALCK6180
ALLES CNC
The features of the CNC lathe ALCK6180 include:
1. High-Precision Machining: Equipped with high-precision guideways and a spindle system, it ensures high stability and accuracy during machining, making it suitable for the precision machining of complex parts.
2. Powerful Cutting Capabilities: Capable of handling high-hardness materials, it offers strong cutting power, making it ideal for heavy-duty machining tasks with a wide range of applications.
3. Structural Stability: The machine body is made of high-strength castings, providing excellent vibration resistance and operational stability, ensuring reliability even under long-term high-load conditions.
4. Versatility: Supports various machining processes, such as turning, drilling, and tapping, meeting diverse processing needs.
5. Ease of Operation: Designed with a user-friendly interface, it offers simple and clear operation, enabling operators to quickly get started and improving production efficiency.
| Project | Content | Unit | ALCK6180 |
| Processing range | Maximum turning diameter of bed | mm | Φ800 |
| Maximum turning diameter on skateboard | Φ440 | ||
| Maximum processing length | mm | 1500 | |
| Maximum machining diameter | mm | Φ800 | |
| Maximum bar diameter | mm | Φ440 | |
| Spindle hole diameter | mm | Φ105 | |
| Taper of spindle bore | 1:20 | ||
| Spindle series | Manual four gears | ||
| Spindle speed range | r/min | 125-350 | |
| Feed | X/Z axis travel | mm | 420/1500 |
| X/Z fast moving speed | m/min | 4/6 | |
| Tool holder | Tool holder form | Electric vertical | |
| Number of stations | 4 | ||
| Tool specifications: turning/boring | mm | 32/40 | |
| Tailstock | Sleeve diameter/stroke | mm | Φ100/250 |
| Tailstock movement form | Manual | ||
| Motor | Spindle motor power | Kw | 11 |
| Spindle motor torque | NM | 48 | |
| Other | Machine weight | kg | 4500 |
| Machine size: length×width×height | mm | 3990/1900/2000 |
