ALQK1332
ALLES CNC

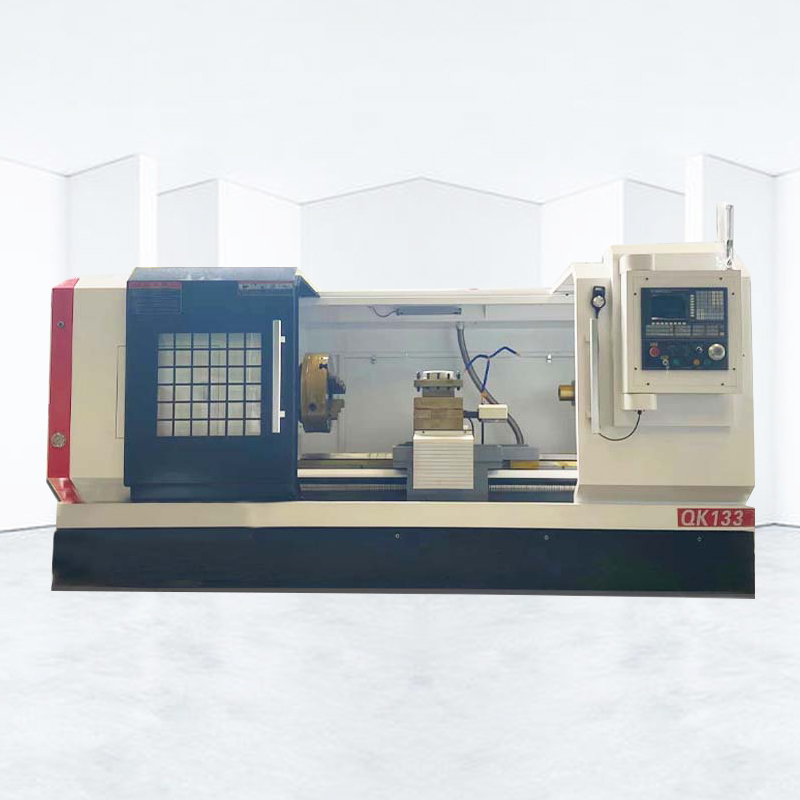

CNC CNC pipe thread lathe adopts the double chuck clamping mode
The Main Technical Parameters
| Project | Content | Unit | CK1332 |
| Processing range | Maximum turning diameter of bed | mm | Φ800 |
| Maximum turning diameter on the skateboard | Φ450 | ||
| Maximum processing length | mm | 1500 | |
| Maximum machining diameter | mm | Φ800 | |
| Maximum bar diameter | mm | Φ450 | |
| X/Z rapid traverse speed | m/min | 4/6 | |
| Motor | Spindle motor power | Kw | 11 |
| Spindle motor torque | NM | 48 | |
| Cooling pump motor power | W | 125 | |
| Rail form | Hard rail (greater than HRC50) | ||
| Machine weight | KG | 5200 |
Please note that the bed length can be customized according to the actual needs of customers
1. CNC lathe big shaft hole and double chucks, which can clamp and process large diameter pipes;
2. The entire bed of ALLES CNC adopts high strength iron, with high rigidity and high precision;
3. The ultrasonic frequency quenching guide rail of horizontal CNC lathe machine is sufficiently hard and has good wear resistance;
4.ALLES CNC maintains long term accuracy.
1, We set up TRB (tapered rolling bearings) on this lathe to increase the rigidity of the spindle.
2, The spindle bore is very large and set up double chucks both front and back and you can choose electric chucks as you like.
CNC pipe threading lathe is widely used in petroleum mining, coal mining, chemical pipeline, geological exploration and other industries. It is an efficient equipment for processing and repairing drill pipes, drill pipes, threaded couplings, etc.
